Effective Length 4d U Drill Industrial Innovative Design For Cast Iron Sample
Effective Length 4d U Drill Industrial Innovative Design For Cast Iron Sample
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
10—416 USD
Packaging Details :
standard packaging
Delivery Time :
negotiable
Supply Ability :
100000 sets per month
Coolant Type :
Internal/External
Usage :
CNC Machine
Application :
Drilling
Suitable Workpiece :
Steel, Cast Iron, Aluminum
Effective Length :
2D 3D 4D 5D
Surface Treatment :
Black Oxide
Sample :
Yes
Shank Type :
Straight Shank
Description

Product Description:

The U Drill, which is also referred to as an indexable insert drill, is a cutting-edge drilling tool extensively utilized in contemporary CNC machining. Specifically engineered for the rapid, efficient, and cost-effective drilling of through and blind holes, typically ranging in diameter from 10 mm and above, it serves as an indispensable component in industrial operations.

Diverging from conventional solid drills, the U Drill is distinguished by replaceable carbide inserts affixed to a stur

dy steel body. This innovative design facilitates effortless maintenance, budget-friendly operation, and enhanced productivity, particularly beneficial in high-volume production settings.

Features:

Main Features:

  • Indexable Insert Design: Replaceable inserts eliminate the need for regrinding and reduce tool change time.
  • Internal Coolant Channels: Coolant flows through the drill body directly to the cutting edge, improving chip evacuation and tool life.
  • Various Lengths Available: Offered in 2×D, 3×D, 4×D, and 5×D effective drilling depths.
  • High Rigidity: Robust body construction ensures stability during high-speed or heavy-duty machining.
  • Wide Material Compatibility: Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and more.

Technical Parameters:

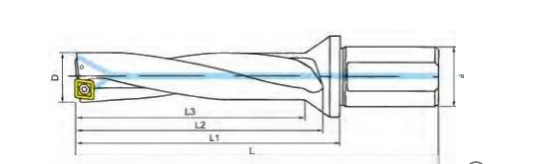

Effective Length 4d U Drill Industrial Innovative Design For Cast Iron Sample

Cat.No

( m m )

Insert

Screw

Wrench

D

L

L1

L2

L3

d

WD13-4D-C25

WD13.5-4D-C25

WD14-4D-C25

WD14.5-4D-C25

WD15-4D-C25

13

13.5

14

14.5

15

138

140

142

144

146

82

84

86

88

90

57

59

61

63

65

52

54

56

58

60

25

WDXT

042004

M1.8x4.2

T6

WD15.5-4D-C25

WD16-4D-C25

WD16.5-4D-C25

WD17-4D-C25

WD17.5-4D-C25

WD18-4D-C25

15.5

16

16.5

17

17.5

18

148

150

152

154

156

158

92

94

96

98

100

102

67

69

71

73

75

77

62

64

66

68

70

72

25

WDXT

052504

M2.0x5

T6

WD18.5-4D-C25

WD19-4D-C25

WD19.5-4D-C25

WD20-4D-C25

WD20.5-4D-C25

18.5

19

19.5

20

20.5

160

162

164

166

168

104

106

108

110

112

79

81

83

85

87

74

76

78

80

82

25

WDXT

063006

M2.2x5

T7

WD21-4D-C32

WD21.5-4D-C32

WD22-4D-C32

WD22.5-4D-C32

21

21.5

22

22.5

179

181

183

185

119

121

123

125

89

91

93

95

84

86

88

90

32

WD23-4D-C32

WD23.5-4D-C32

WD24-4D-C32

WD24.5-4D-C32

WD25-4D-C32

WD25.5-4D-C32

WD26-4D-C32

WD26.5-4D-C32

23

23.5

24

24.5

187

189

191

193

127

129

131

133

97

99

101

103

92

94

96

98

100

102

104

106

108

110

112

114

32

WDXT

073506

M2.5x6

T8

25

25.5

26

26.5

195

197

199

201

135

137

139

141

143

145

147

149

105

107

109

111

113

115

117

119

WD27-4D-C32

WD27.5-4D-C32

WD28-4D-C32

WD28.5-4D-C32

27

27.5

28

28.5

203

205

207

209


Cat.No

( m m )

Insert

Screw

Wrench

D

L

L1

L2

L3

d

WD29-4D-C32

WD29.5-4D-C32

29

29.5

211

213

151

153

121

123

116

118

120

124

128

132

136

140

144

32

WDXT

094008

M3.5×8

T15

WD30-4D-C32

WD31-4D-C32

30

31

32

33

215

219

155

159

125

129

133

137

141

145

149

WD32-4D-C32

WD33-4D-C32

223

227

163

167

171

175

179

WD34-4D-C32

WD35-4D-C32

WD36-4D-C32

34

35

36

231

235

239

WD37-4D-C32

WD38-4D-C32

WD39-4D-C32

WD40-4D-C32

WD41-4D-C32

WD42-4D-C32

37

38

39

40

41

42

243

247

251

255

259

263

183

187

191

195

199

203

153

157

161

165

169

173

148

152

156

160

164

168

32

WDXT

125012

M5.0x11

T20

WD43-4D-C40

WD44-4D-C40

43

44

282

286

212

216

177

181

172

176

40

WD45-4D-C40

WD46-4D-C40

WD47-4D-C40

WD48-4D-C40

WD49-4D-C40

WD50-4D-C40

WD51-4D-C40

45

46

47

48

49

50

51

290

294

298

302

306

310

314

318

322

326

330

220

224

228

232

236

240

244

248

252

256

260

185

189

193

197

201

205

209

213

217

221

225

180

184

188

192

196

200

204

208

212

216

220

40

WDXT

156012

M6.0x14.2

T25

WD52-4D-C40

WD53-4D-C40

WD54-4D-C40

WD55-4D-C40

52

53

54

55

Applications:

Applications:

1. High-speed drilling in CNC lathes and machining centers

2. Pre-machining for boring, reaming, or tapping

3. Rough boring of large-diameter holes

4. Mass production and automated environments
