10mm Diameter U Shaped Drill Bit Insertable U Drill High Rigidity For Internal External Coolant
10mm Diameter U Shaped Drill Bit Insertable U Drill High Rigidity For Internal External Coolant
Specifications
Brand Name :
ARNOLD
Place of Origin :
China
Certification :
ISO9001:2000
MOQ :
2
Price :
10—416 USD
Packaging Details :
standard packaging
Delivery Time :
negotiable
Supply Ability :
100000 sets per month
Surface Treatment :
Black Oxide
Suitable Workpiece :
Steel, Cast Iron, Aluminum
Function :
Hole Machining Tools
Sample :
Yes
Coolant Type :
Internal/External
Application :
Drilling
Effective Length :
2D 3D 4D 5D
Usage :
CNC Machine
Description

Product Description:

The U Drill , also known as an indexable insert drill , is a high-performance drilling tool widely used in modern CNC machining. It is designed for fast, efficient, and economical drilling of through and blind holes, typically in the diameter range of 10 mm and above.

Unlike traditional solid drills, the U Drill features replaceable carbide inserts mounted on a rigid steel body. This allows for easy maintenance, cost-effective operation, and high productivity, especially in mass production environments.

Features:

Indexable Insert Design: The replaceable inserts featured in these drills eliminate the need for regrinding, saving time and reducing tool change requirements.

Internal Coolant Channels: Coolant is directed through the drill body to the cutting edge, enhancing chip removal and extending tool longevity.

Various Lengths Available: This product is available in 2×D, 3×D, 4×D, and 5×D effective drilling depths to suit a variety of applications.

High Rigidity: The robust construction of these drills ensures stability even during high-speed and heavy-duty machining operations.

Wide Material Compatibility: These drills are capable of machining steel, stainless steel, cast iron, aluminum alloys, and more, making them versatile tools for various materials.

Technical Parameters:

10mm Diameter U Shaped Drill Bit Insertable U Drill High Rigidity For Internal External Coolant

Cat.No

( m m )

Insert

Screw

Wrench

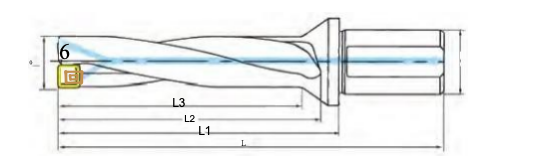

D

L

L1

L2

L3

d

WD15-5D-C25

WD16-5D-C25

15

16

161

166

171

176

105

110

115

120

80

85

90

95

75

80

85

90

25

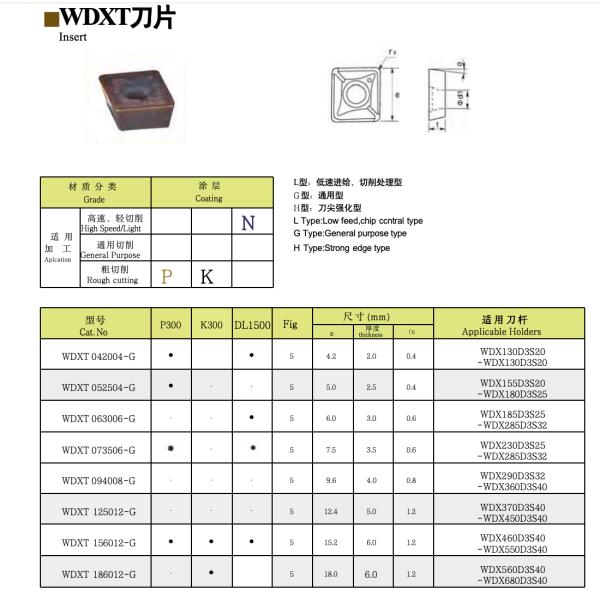

WDXT

052504

M2.0x5

T6

WD17-5D-C25

WD18-5D-C25

17

18

WD19-5D-C25

WD20-5D-C25

19

20

181

186

125

130

100

105

95

100

25

WDXT

063006

M2.2x5

T7

WD21-5D-C32

WD22-5D-C32

21

22

200

205

135

140

110

115

105

110

32

WD23-5D-C32

WD24-5D-C32

WD25-5D-C32

WD26-5D-C32

WD27-5D-C32

WD28-5D-C32

23

24

25

26

27

28

210

215

220

225

230

235

145

150

155

160

165

170

120

125

130

135

140

145

115

120

125

130

135

140

32

WDXT

073506

M2.5x8

T8

WD29-5D-C32

WD30-5D-C32

WD31-5D-C32

WD32-5D-C32

29

30

31

32

240

245

250

255

175

180

185

190

150

155

160

165

145

150

155

160

32

WDXT

094008

M3.5x8

T15

WD33-5D-C40

WD34-5D-C40

WD35-5D-C40

WD36-5D-C40

33

34

35

36

260

265

270

275

195

200

205

210

170

175

180

185

165

170

175

180

40

WD37-5D-C40

WD38-5D-C40

WD39-5D-C40

WD40-5D-C40

WD41-5D-C40

WD42-5D-C40

WD43-5D-C40

WD44-5D-C40

WD45-5D-C40

37

38

39

40

41

42

43

44

45

280

285

290

295

300

305

310

315

320

215

220

225

230

235

240

245

250

255

190

195

200

205

210

215

220

225

230

185

190

195

200

205

210

215

220

225

40

WDXT

125012

M4.0x10

T15

WD46-5D-C40

WD47-5D-C40

WD48-5D-C40

WD49-5D-C40

WD50-5D-C40

46

47

48

49

50

325

330

335

340

345

260

265

270

275

280

235

240

245

250

255

230

235

240

245

250

40

WDXT

156012

M5.0x11

T20

Applications:

Applications:

1. High-speed drilling in CNC lathes and machining centers

2. Pre-machining for boring, reaming, or tapping

3. Rough boring of large-diameter holes

4. Mass production and automated environments
