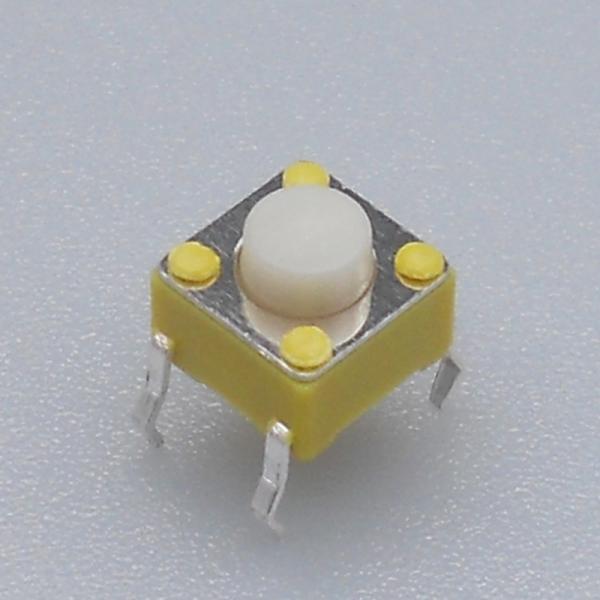

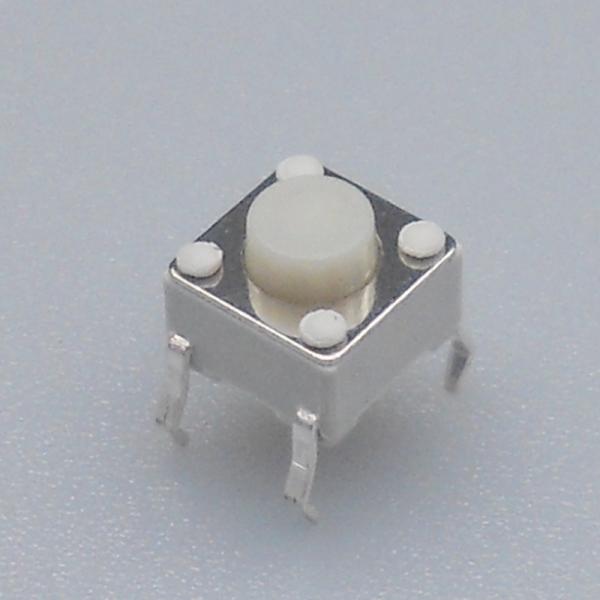

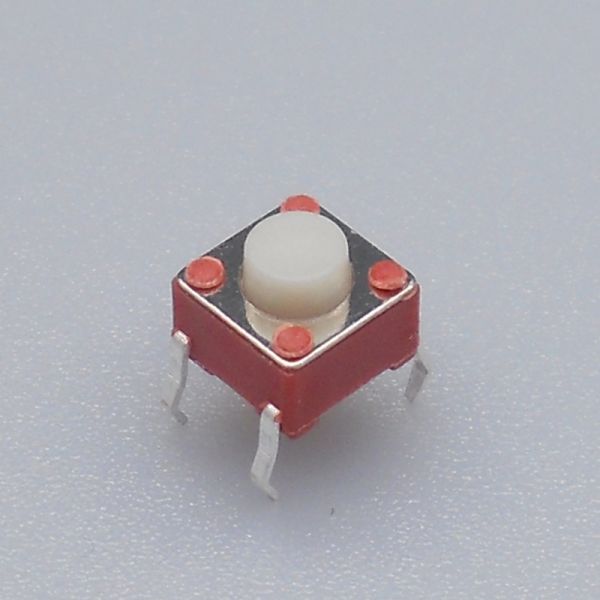

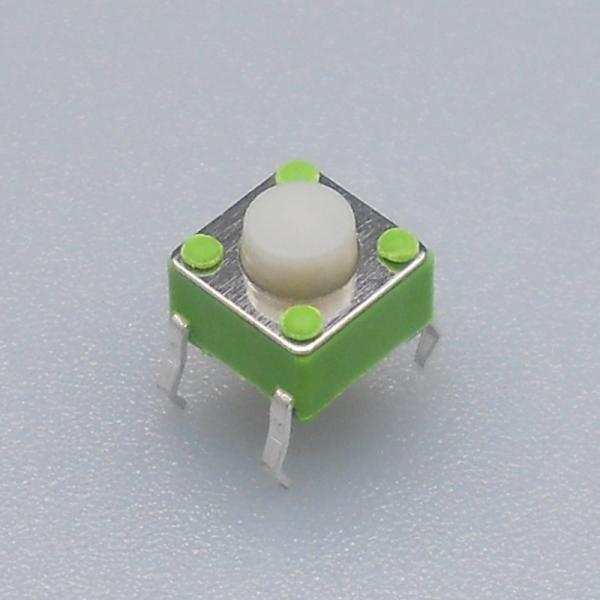

Momentary 6mm Tactile Switch / Silent Push Button With White Push Button​
Momentary 6mm Tactile Switch / Silent Push Button With White Push Button​
Momentary 6mm Tactile Switch / Silent Push Button With White Push Button​
Momentary 6mm Tactile Switch / Silent Push Button With White Push Button​
Momentary 6mm Tactile Switch / Silent Push Button With White Push Button​
Momentary 6mm Tactile Switch / Silent Push Button With White Push Button​
Specifications
Brand Name :
BZCN
Model Number :
TS-D001
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Press :
Vertical
Operation :
Vertical push
Case :
Green / red/ yellow
Voltage :
12V
Terminal :
Snap in Thru hole
Pin No. :
4 pins
Description

silent push button 4 pin 6 mm tactile switch momentary with white push button​

Measurement shall be made following application
of 100V DC potential, across terminals, and
across terminals and cover, for one minute.

Spec.

Model No. TS-D001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference.

Momentary 6mm Tactile Switch / Silent Push Button With White Push Button​
