Through Hole Terminal Silent Tactile Switch / SMD Momentary Switch DIP Terminal
Through Hole Terminal Silent Tactile Switch / SMD Momentary Switch DIP Terminal
Through Hole Terminal Silent Tactile Switch / SMD Momentary Switch DIP Terminal
Through Hole Terminal Silent Tactile Switch / SMD Momentary Switch DIP Terminal
Specifications
Brand Name :
BZCN
Model Number :
TS-C016
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Press :
Vertical
Operation :
Single pole single throw
Rating :
50mA
Voltage :
12V
Terminal :
Through Hole terminal
Pin No. :
5 pins
Description

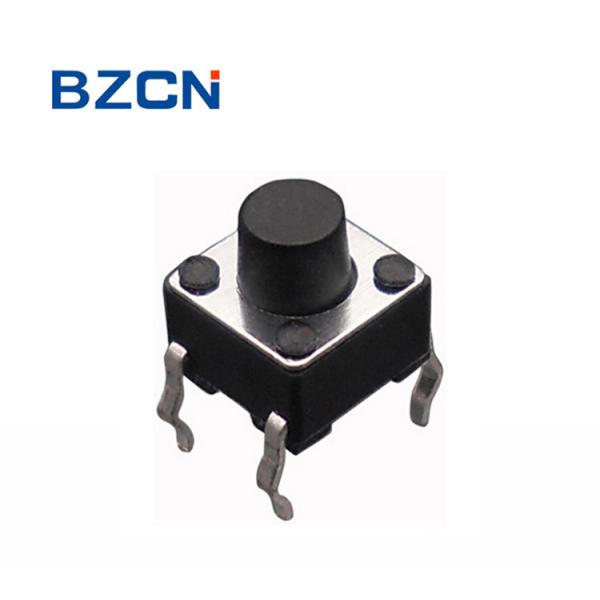

Through hole terminal 4 pin push button Side press tactile switch with black button

Placing the switch such that the direction of
switch operation is vertical, and then a static
load of 10N shall be applied in the direction
of stem operation for a period of 1 min.

Spec.

Model No. TS-C016
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

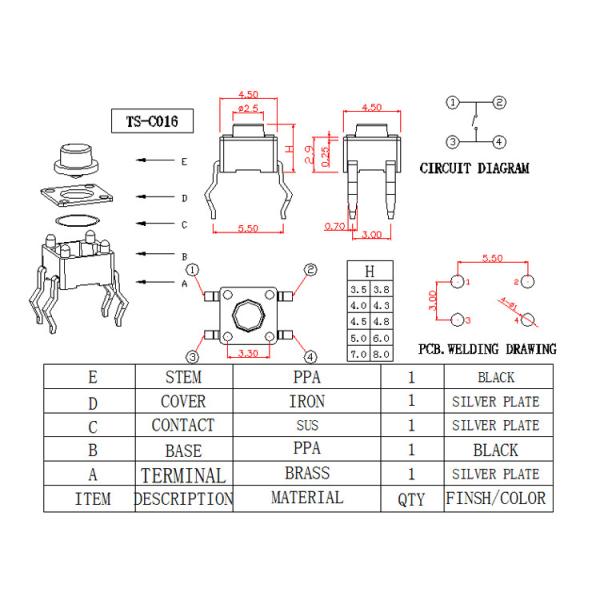

Drawing.

Through Hole Terminal Silent Tactile Switch / SMD Momentary Switch DIP Terminal
