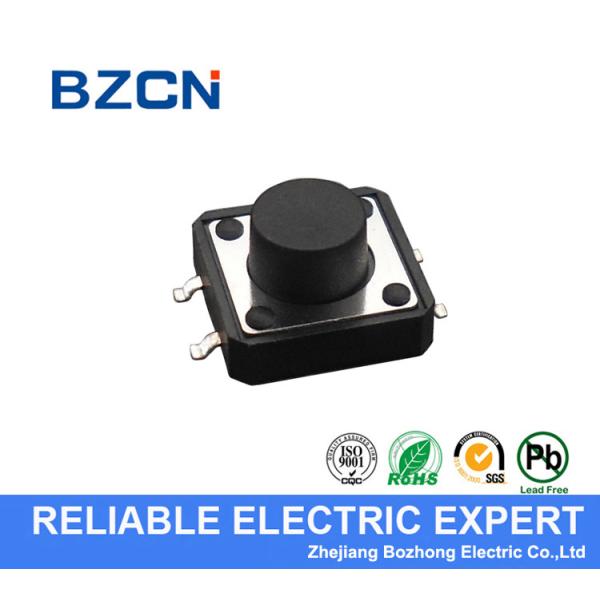

Side Press Momentary Silent Tactile Switch , 4 Pin Surface Mount Push Button
Side Press Momentary Silent Tactile Switch , 4 Pin Surface Mount Push Button
Specifications
Brand Name :
BZCN
Model Number :
TS-F002
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Press :
Vertical
Operation :
SPST
Rating :
50mA
Voltage :
12V
Terminal :
SMD / DIP
Pin No. :
4 pins
Description

Surface mount terminal 4 pin push button Side press tactile switch with black button

The sample switch is installed such that the
direction of switch operation is vertical and
upon depressing the stem in its center to the
whole travel distance, the force of the stem to
return to its free position shall be measured.

Feature.

Reflow solderable.

With earth anti ESD ground terminal.

Packing in tape reel available.

Spec.

Model No. TS-F002
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

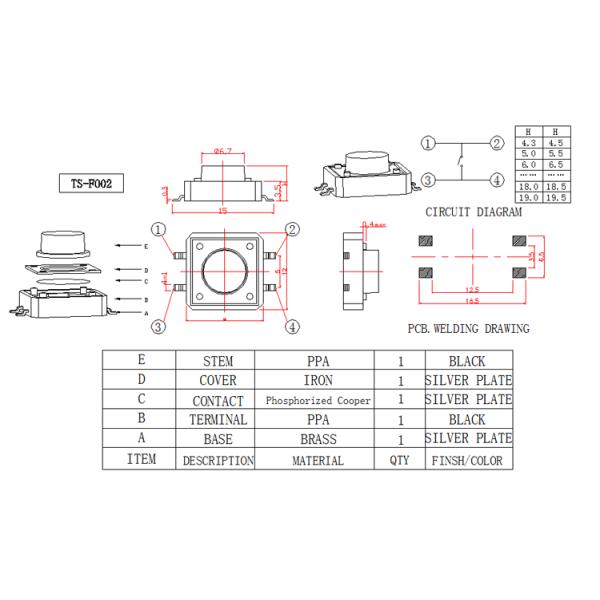

Drawing.

Side Press Momentary Silent Tactile Switch , 4 Pin Surface Mount Push Button
