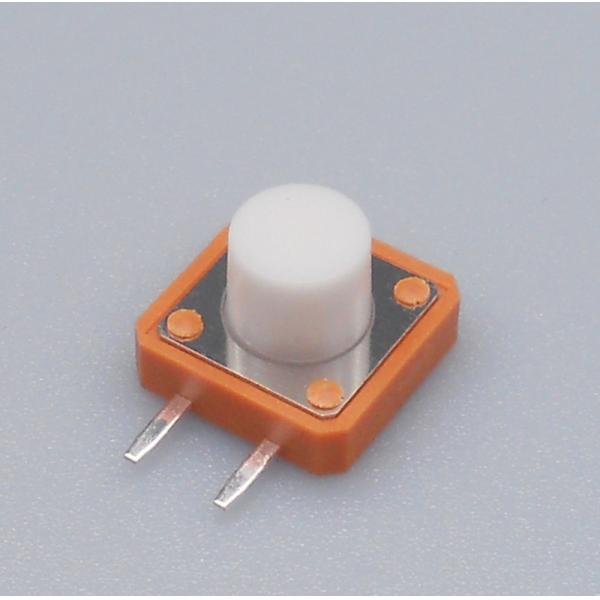

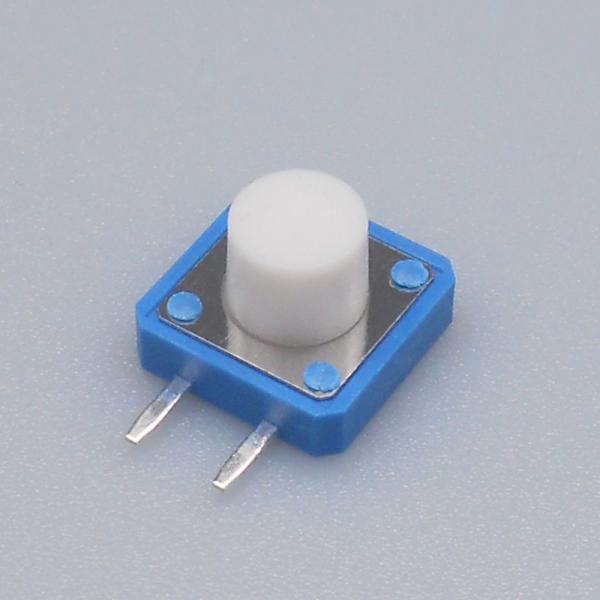

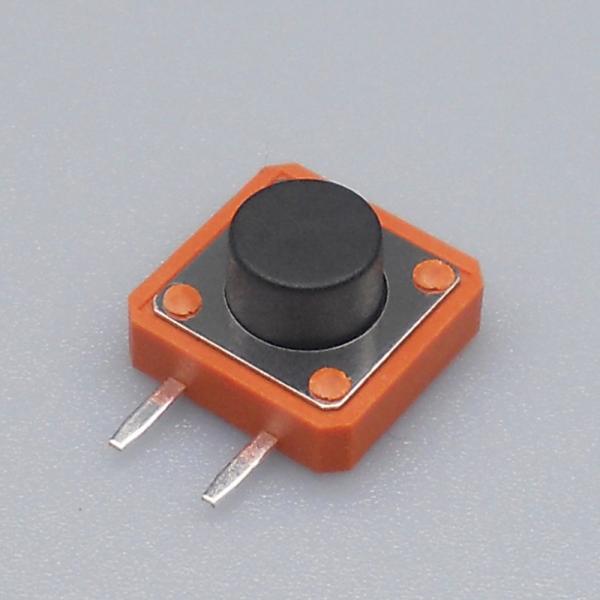

High Operating Force Silent Tactile Switch 4 Pins Terminal Low Contact Resistance
High Operating Force Silent Tactile Switch 4 Pins Terminal Low Contact Resistance
High Operating Force Silent Tactile Switch 4 Pins Terminal Low Contact Resistance
High Operating Force Silent Tactile Switch 4 Pins Terminal Low Contact Resistance
Specifications
Brand Name :
BZCN
Model Number :
TS-F001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Material :
PA66
Type :
2 pin in side
Case :
Orange or Blue
Voltage :
12v
Button :
White
Terminal :
Copper
Description

High operating force Low contact resistance 12 mm tactile switch 4 pins termina

Lightly striking the
center of the stem at a rate encountered in
normal use (3 to 4 operations per sec),
Bounce shall be tested when “ON” and “OFF”.

Spec.
Model No. TS-F003
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

High Operating Force Silent Tactile Switch 4 Pins Terminal Low Contact Resistance
