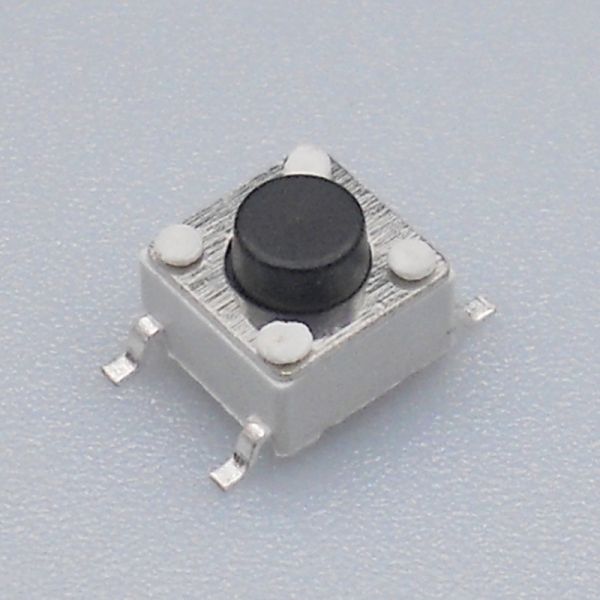

White Case Black Button 6mm Momentary Push Button Switch 4 Pin Terminal
White Case Black Button 6mm Momentary Push Button Switch 4 Pin Terminal
White Case Black Button 6mm Momentary Push Button Switch 4 Pin Terminal
White Case Black Button 6mm Momentary Push Button Switch 4 Pin Terminal
Specifications
Brand Name :
BZCN
Model Number :
TS-D003
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Case :
White / Red
Operation :
Momentary
Button :
Black
Voltage :
12v
Cover :
Iron with silver
Terminal :
Copper
Description

white case black button momentary push button 6 mm tactile switch 4 pin terminal

Ratings: 12V DC, 50mA (effective value) 12V DC, 50mA (maximum) 1V DC,10μA (minimum)

Applying a static load of 2 times operating
force to the center of the stem, measurements
shall be made by 5V DC 10mA or more than 1KHZ
AC small-current contact resistance meter.
Spec.
Model No. TS-D003
Terminal Type SMT
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

White Case Black Button 6mm Momentary Push Button Switch 4 Pin Terminal
