12 Mm X 12mm Tactile Switch Thru Hole Red House 0.5mA Current Rate With Black Button
12 Mm X 12mm Tactile Switch Thru Hole Red House 0.5mA Current Rate With Black Button
12 Mm X 12mm Tactile Switch Thru Hole Red House 0.5mA Current Rate With Black Button
12 Mm X 12mm Tactile Switch Thru Hole Red House 0.5mA Current Rate With Black Button
Specifications
Brand Name :
BZCN
Model Number :
TS-F001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Case :
Red PA66
Temperature Resistance :
-30 -- +85 degree
Current rate :
0.5mA
Voltage :
12v
Cover :
Plastic
Terminal :
Copper
Description

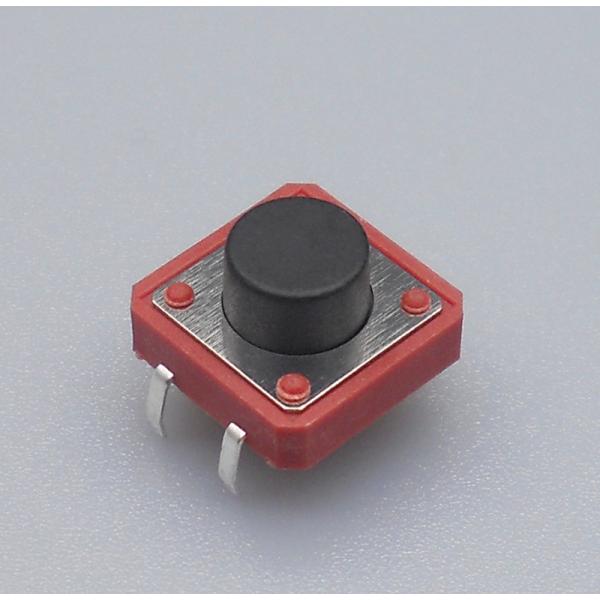

red house with black button 12 mm x 12 mm thru hole DIP tactile switch 4 pins terminal

Placing the switch such that the direction of
switch operation is vertical and then applying
static load of 2times operating force to the
center of the stem; the travel distance for the
switch to come to a stop shall be measured.

Spec.
Model No. TS-F001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

12 Mm X 12mm Tactile Switch Thru Hole Red House 0.5mA Current Rate With Black Button
