SMD / SMT Miniature Tactile Switch With Lead Free Long Travel Black Button
SMD / SMT Miniature Tactile Switch With Lead Free Long Travel Black Button
SMD / SMT Miniature Tactile Switch With Lead Free Long Travel Black Button
SMD / SMT Miniature Tactile Switch With Lead Free Long Travel Black Button
Specifications
Brand Name :
BZCN
Model Number :
TS-A010
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Direction :
Vertical press
Material :
PA66
Rating :
50mA
Voltage :
12v
Travel :
5 degree
Center push :
260 gf
Description

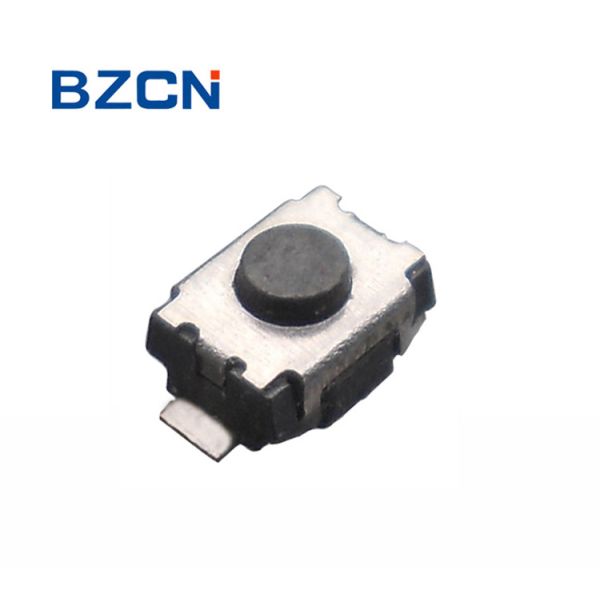

2.9*3.9 mm SMD / SMT Momentary Tact Switch with lead free long travel black button​

Ultra-miniature tact switch is top actuated for miniature SMT applications.

This tact switch is available with boss (locating pin) and without boss and gull wing termination. It comes in tape and reel packaging.

Applications include consumer electronics, telecommunications, audio/visual, medical and more.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Surface mount on PC Board

Spec.

Model No. TS-A010
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

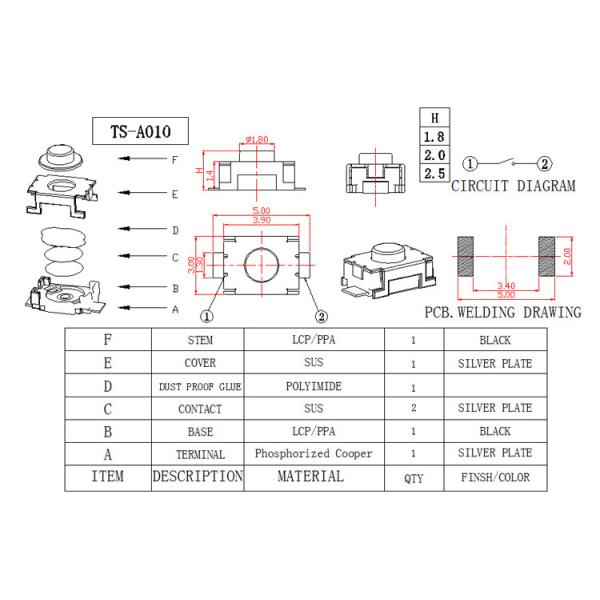

Drawing:

SMD / SMT Miniature Tactile Switch With Lead Free Long Travel Black Button
