Thru Hole 12 Mm X 12mm Tactile Switch 0.5mA Current Rate Blue House With White Button
Thru Hole 12 Mm X 12mm Tactile Switch 0.5mA Current Rate Blue House With White Button
Thru Hole 12 Mm X 12mm Tactile Switch 0.5mA Current Rate Blue House With White Button
Thru Hole 12 Mm X 12mm Tactile Switch 0.5mA Current Rate Blue House With White Button
Specifications
Brand Name :
BZCN
Model Number :
TS-F001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Case color :
Blue / Black
Button :
White plastic
Current rate :
0.5mA
Voltage :
12v
Cover :
White plastic
Terminal :
Copper
Description

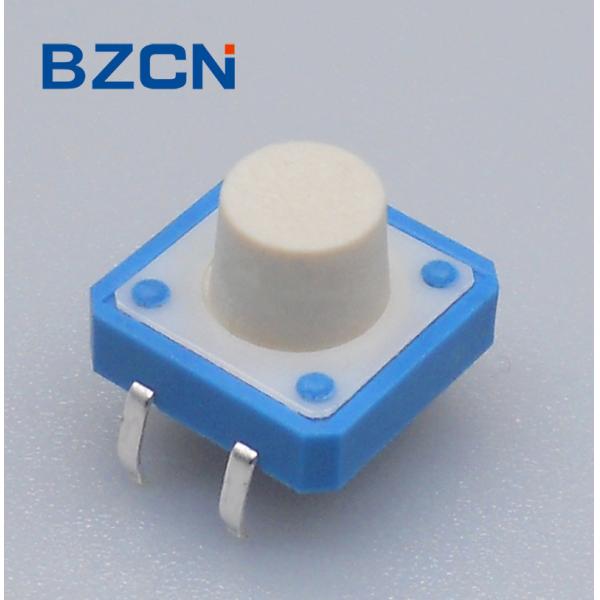

blue house with white button 12 mm x 12 mm thru hole tactile switch 4 pins terminal

12mm x 12mm thru hole tactile switch offers reliable dome contact technology with strong tactile/audible feedback. for two welding, please return to the normal temperature after the first welding part. Continuous heating may cause the outer part to deform, and the terminals become loose, fall off and the electrical characteristics decrease.

You can choose between gold or silver contact material and you can choose from multiple cap options for certain models.

Features

● High operating force (3.0N or 3.6N) suited to automotive equipment requirements
● Long life of 300,000 cycles realized despite the high operating force
● Middle stroke (1.05mm)

Spec.
Model No. TS-F001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Thru Hole 12 Mm X 12mm Tactile Switch 0.5mA Current Rate Blue House With White Button
