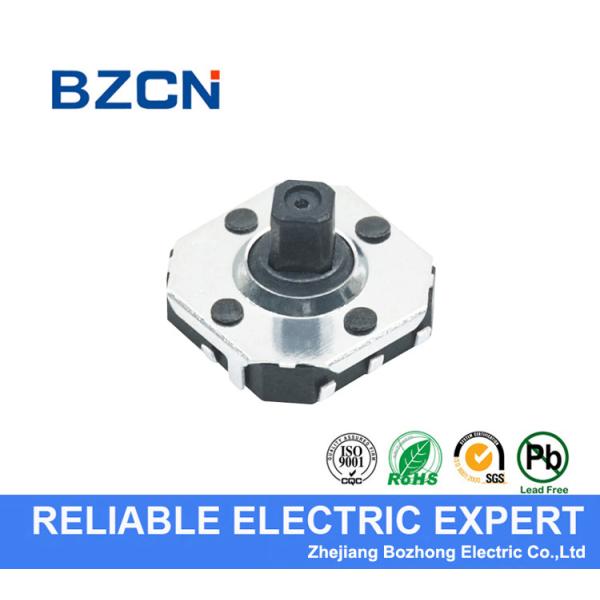

Center Push Miniature Tactile Switch Navigation 5 Position Multi Direction
Center Push Miniature Tactile Switch Navigation 5 Position Multi Direction
Specifications
Brand Name :
BZCN
Model Number :
TS-K006
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Direction :
4 ways with center push
Shape :
Round square
Rating :
50mA
Voltage :
12v
Travel :
5 degree
Center push :
260 gf
Description

navigation 5 position multi direction 6 pin 4 direction with center push miniature tactile switch

when the tact switch is operated, if the load is specified, the switch will be damaged. Please be careful not to apply the force above the switch.

Navigation switch is the latest in design and functionality of E-Switch's Navigation series. Loaded with features, including the 5-position navigation, very low profile, sleek, SMT design, it replaces 5 independent switches.

Feature.

sharp click with tactile feed back

multi function / dust proof / ground terminal

Spec.

Model No. TS-K006
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

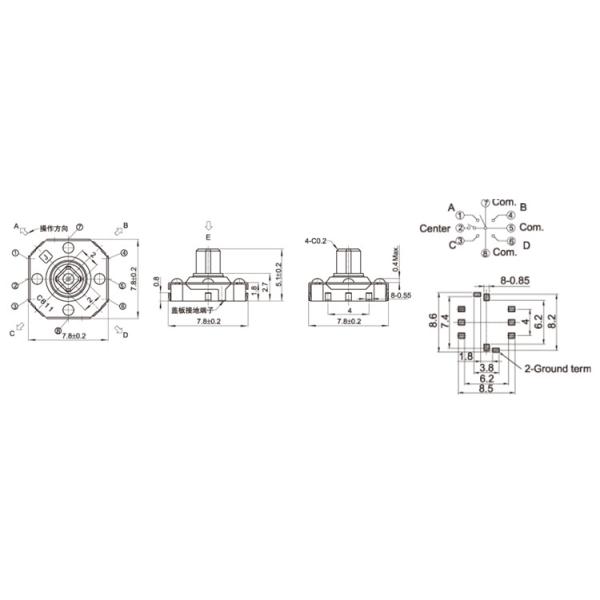

Drawing:

Center Push Miniature Tactile Switch Navigation 5 Position Multi Direction
