Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover
Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover
Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover
Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover
Specifications
Brand Name :
BZCN
Model Number :
TS-F001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Case color :
Orange
Button :
White / Black
Current rate :
0.5mA
Voltage :
12v
Cover :
Plastic
Terminal :
Copper
Description

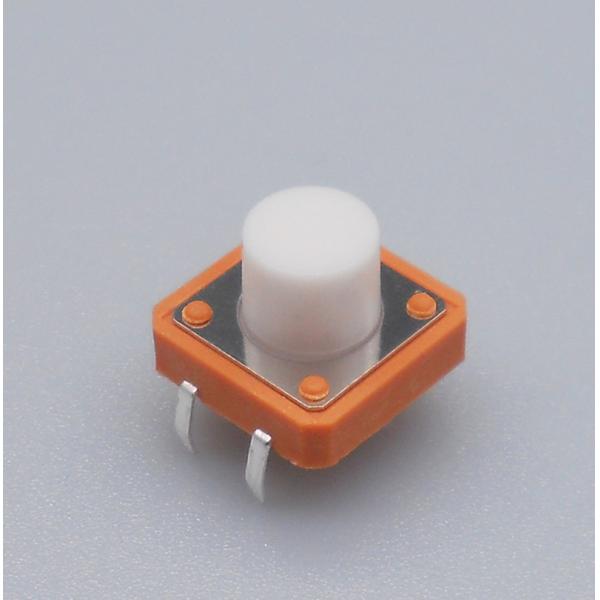

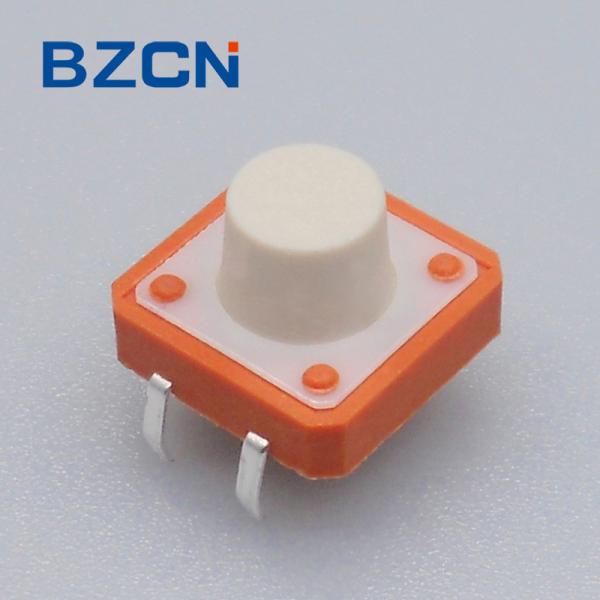

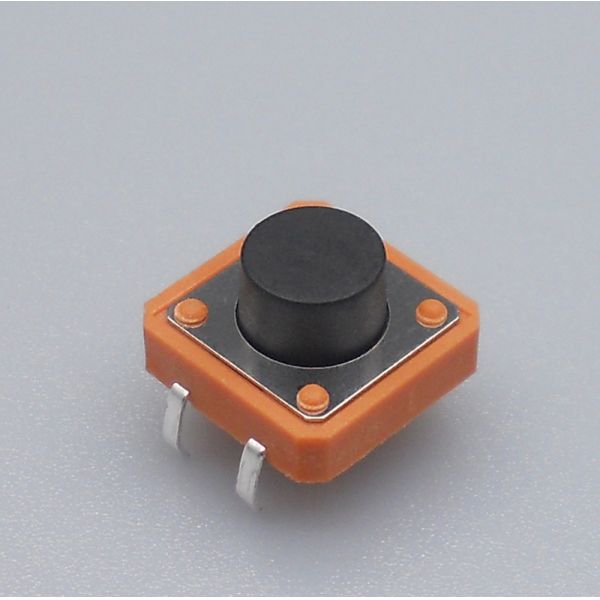

black / white button 12 mm x 12 mm thru hole tactile switch 4 pins terminal with metal cover

12mm x 12mm thru hole tactile switch multiple operating force options allows it to be applied to many industries: telecommunications, consumer electronics, medical, testing/instrumentation, computer/servers/peripherals and audio/visual.


Applications

●Switches for car audio-visual and navigation systems, steering wheels
　and other automotive equipment
●Industrial equipment and measuring instruments

Spec.
Model No. TS-F001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Industrial Equipment Miniature Tactile Switch Copper Terminal With Metal Cover
