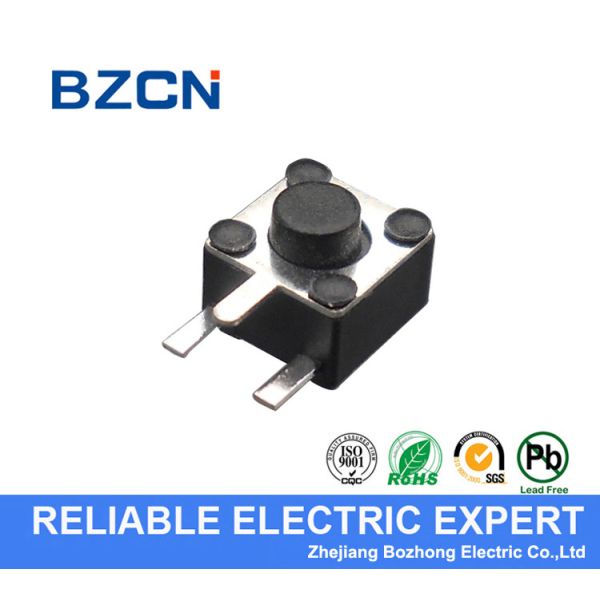

Lead Free Micro Momentary Push Button Switch Momentary Operation Type
Lead Free Micro Momentary Push Button Switch Momentary Operation Type
Specifications
Brand Name :
BZCN
Model Number :
TS-C017
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Direction :
Vertical press
Pin :
3 side pin
Rating :
50mA
Voltage :
12v
Travel :
0.25 mm
Type :
Snap in
Description

side 3 pin 4.5x4.5mm lead free tactile switch momentary operation type

switch for direct operation by switch. Please do not use mechanical detection function.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Reflow solderable

Miniature side press

Spec.

Model No. TS-C017
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

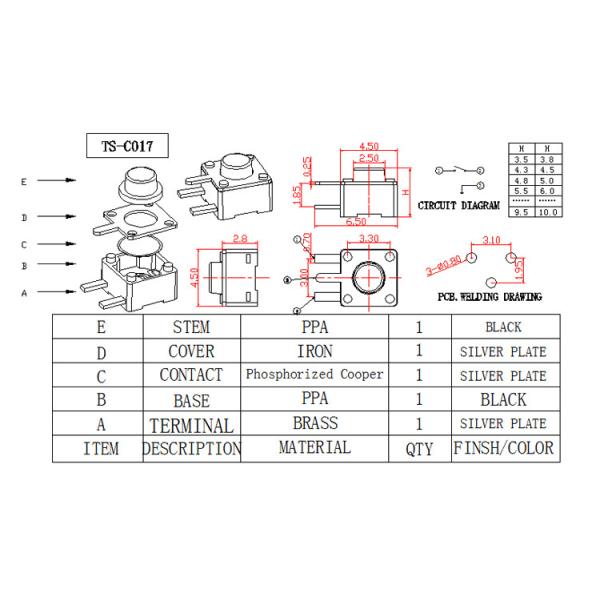

Drawing:

Lead Free Micro Momentary Push Button Switch Momentary Operation Type
