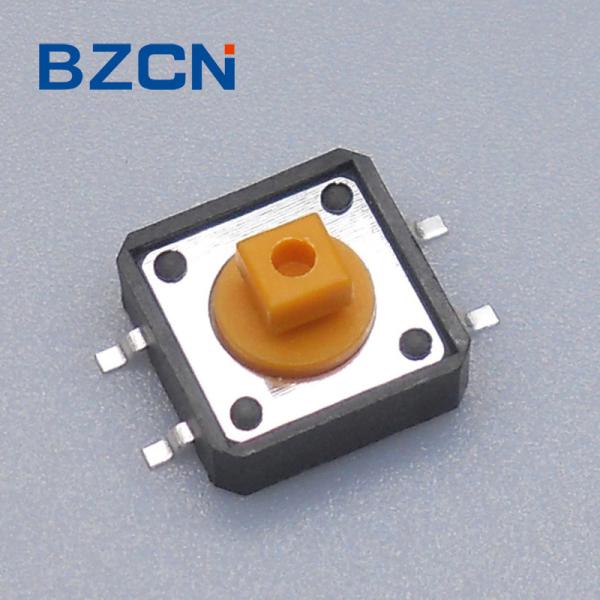

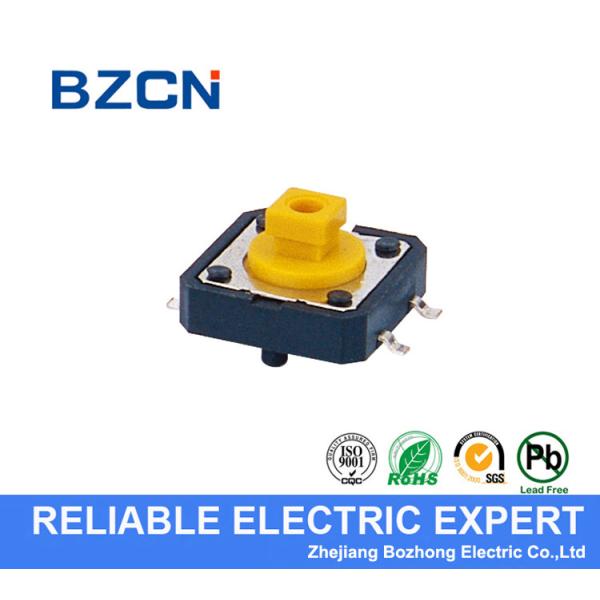

Momentary Yellow Miniature Tactile Switch / Square Push Button 4 Pin Terminal
Momentary Yellow Miniature Tactile Switch / Square Push Button 4 Pin Terminal
Specifications
Brand Name :
BZCN
Model Number :
TS-F005
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Case :
Black
Button :
Yellow
Current rate :
0.5mA
Voltage :
12v
Shape :
Square
Terminal :
Copper
Description

momentary yellow square push button 12*12 mm tactile switch 4 pin terminal​

for welding condition setting, actual batch production conditions should be confirmed.

Rectangular surface mount tactile switch offers 3 termination options:

1. Straight Lead
2. Reverse Lead
3. Side Retention Lead

This tact switch also offers reliable dome contact technology and a strong tactile feedback, with multiple operating forces to choose from. Applications for the TL1107 series include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation and computer/peripherals.

Spec.
Model No. TS-F005
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Momentary Yellow Miniature Tactile Switch / Square Push Button 4 Pin Terminal
