Through Hole Terminal Surface Mount Tactile Switch ALPS Square Button
Through Hole Terminal Surface Mount Tactile Switch ALPS Square Button
Specifications
Brand Name :
BZCN
Model Number :
TS-D005
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Direction :
Vertical press
Button :
Black
Rating :
50mA
Voltage :
12v
Shape :
Square
Center push :
250 gf
Description

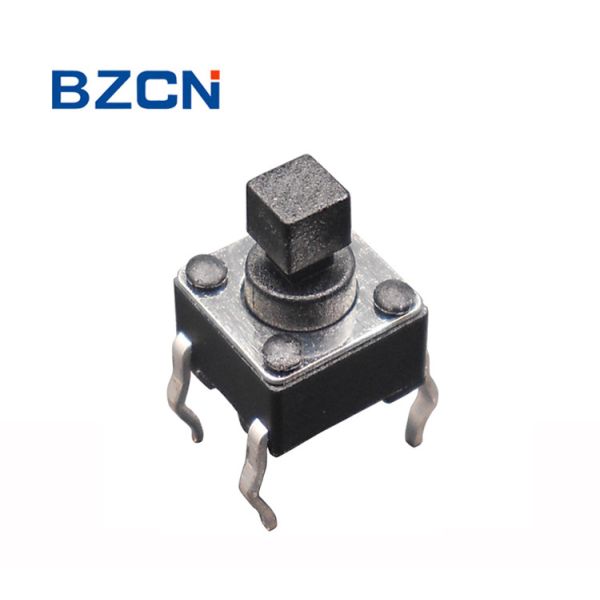

ALPS Square button 6*6 mm through hole terminal push tact switch black button 4 pin

printed circuit board mounting holes and modes, refer to the recommended size recorded in the product drawing.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Reflow solderable

Miniature side press

Spec.

Model No. TS-D005
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

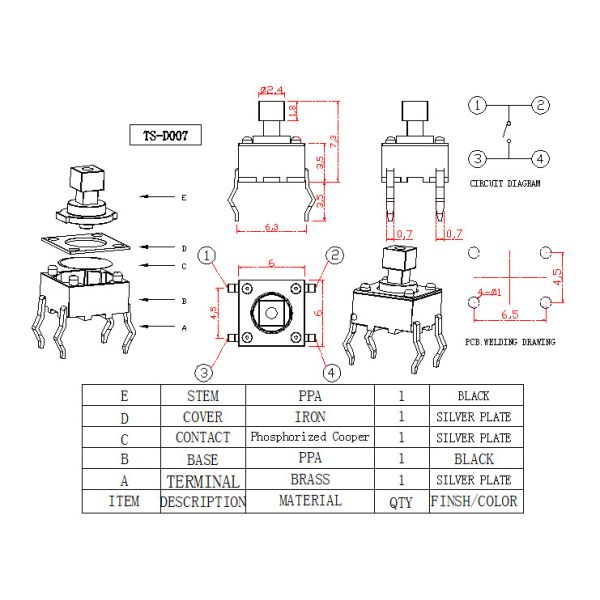

Drawing:

Through Hole Terminal Surface Mount Tactile Switch ALPS Square Button
