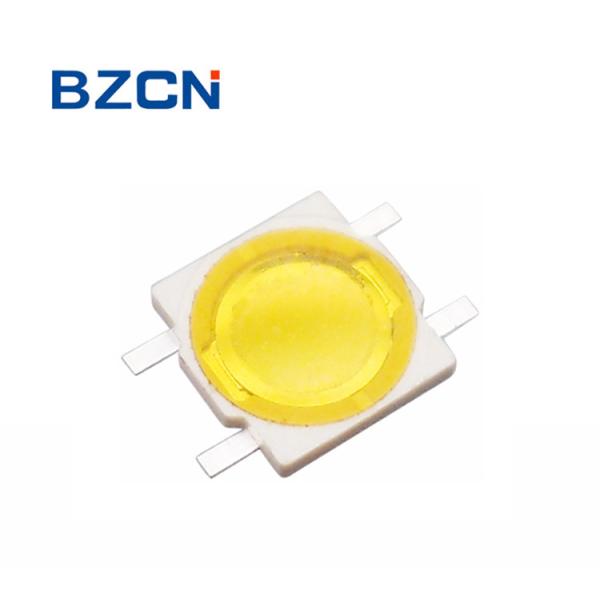

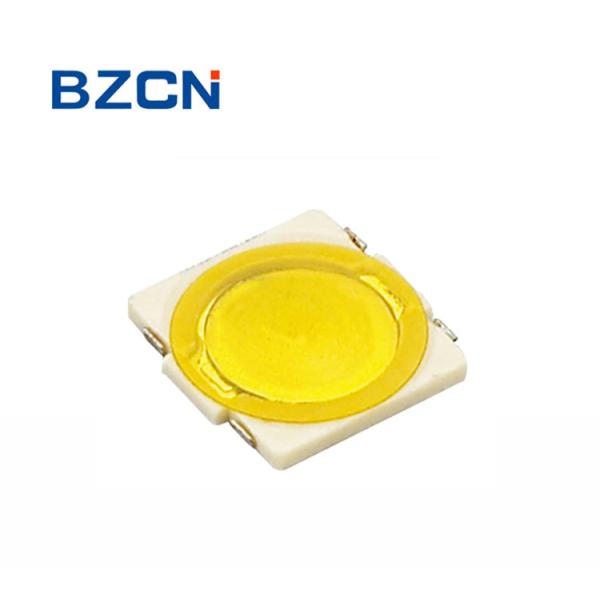

4 Pin Momentary Switch , Tactile Push Button Switch Ultra Yellow Thin Firm
4 Pin Momentary Switch , Tactile Push Button Switch Ultra Yellow Thin Firm
Specifications
Brand Name :
BZCN
Model Number :
TS-C002
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Direction :
Vertical press
Material :
PA66
Rating :
50mA
Voltage :
12v
Travel :
5 degree
Center push :
260 gf
Description

ultra yellow thin firm tact tactile switch 4 pin 4.8*4.8 mm SMD surface mounted

tactile switches features a very low profile (.55mm) and are surface mount, making it a great tact switch for applications that have a tight fit.
Markets for this micro tactile switch include audio/visual, computer peripherals, consumer electronics, handheld devices, medical equipment, telecommunications and more.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Through hole terminal snap in type

Ultra thin tactile switch

Spec.

Model No. TS-C002
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

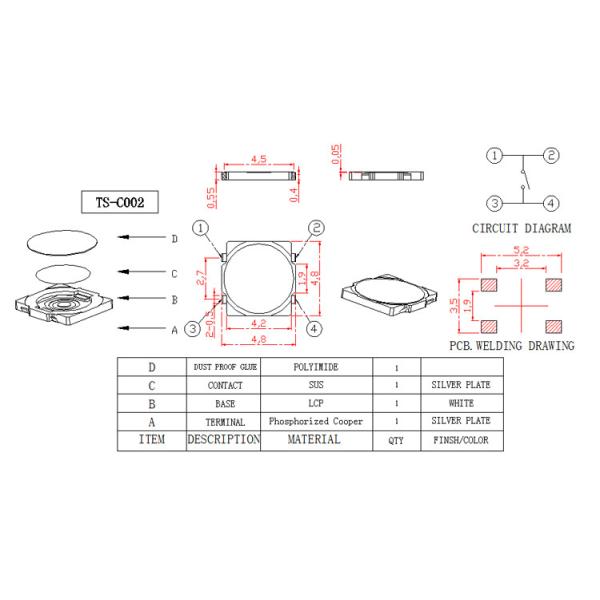

Drawing:

4 Pin Momentary Switch , Tactile Push Button Switch Ultra Yellow Thin Firm4 Pin Momentary Switch , Tactile Push Button Switch Ultra Yellow Thin Firm
