Sealed Miniature Tactile Switch White Plastic Cover For Consumer Electronics
Sealed Miniature Tactile Switch White Plastic Cover For Consumer Electronics
Specifications
Brand Name :
BZCN
Model Number :
TS-D004
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Direction :
Vertical press
Cover :
White platic
Rating :
50mA
Voltage :
12v
Travel :
0.25 mm
Type :
Through Hole
Description

DIP snap in Tactile tact Switch with 4 pin Directly operation Momentary sealed tact Switch

avoid the use of the operating part from the side.

Applications include consumer electronics, telecommunications and more.

Spec.

Model No. TS-D004
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

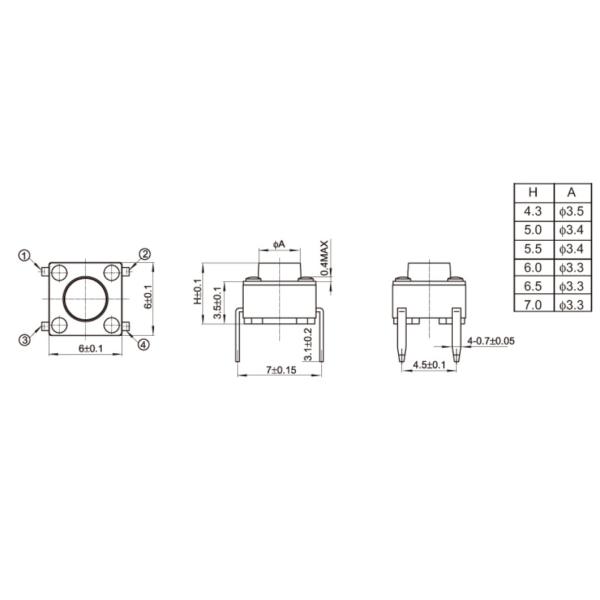

Drawing:

Sealed Miniature Tactile Switch White Plastic Cover For Consumer Electronics
