Ultra Micro Yellow Thin Momentary Tactile Switch For PCB 12v Tact Switch
Ultra Micro Yellow Thin Momentary Tactile Switch For PCB 12v Tact Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-A003
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Type :
Micro Thin
Terminal :
SMD surface mounted
Rating :
50mA
Voltage :
12v
Travel :
0.1 mm
Center push :
180 gf
Description

Ultra micro yellow thin momentary 2*4 mm tactile switch for PCB 12 v tact switch

• Ultra-miniature - 2.0mm x 3.0mm
• Surface mount termination
• Very low profile - 0.60mm
• Multiple operating forces


Markets for this micro tactile switch include audio/visual, computer peripherals, consumer electronics, handheld devices, medical equipment, telecommunications and more.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Surface mount on PC Board

Spec.

Model No. TS-A003
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

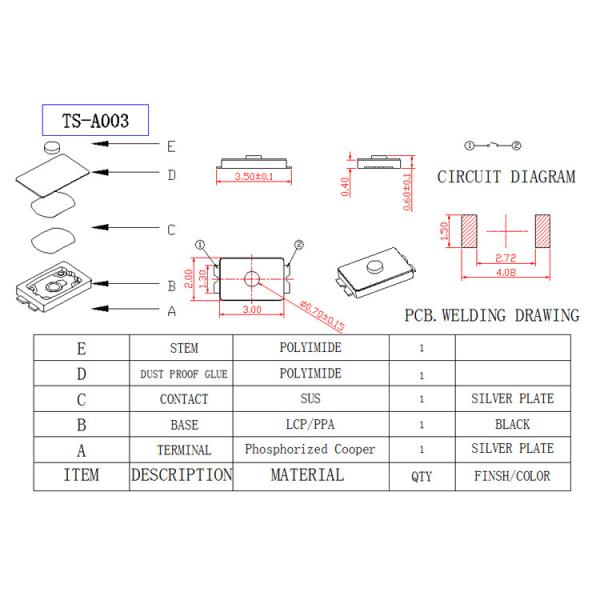

Drawing:

Ultra Micro Yellow Thin Momentary Tactile Switch For PCB 12v Tact Switch
