SMD Miniature Tactile Switch , SMT Tact Switch 3.3X3.3 Mm With Long Life Contact
SMD Miniature Tactile Switch , SMT Tact Switch 3.3X3.3 Mm With Long Life Contact
SMD Miniature Tactile Switch , SMT Tact Switch 3.3X3.3 Mm With Long Life Contact
SMD Miniature Tactile Switch , SMT Tact Switch 3.3X3.3 Mm With Long Life Contact
Specifications
Brand Name :
BZCN
Model Number :
TS-A007
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Direction :
Vertical press
Shape :
Square
Pin :
Surface mounted
Voltage :
12v
Travel :
5 degree
Center push :
260 gf
Description

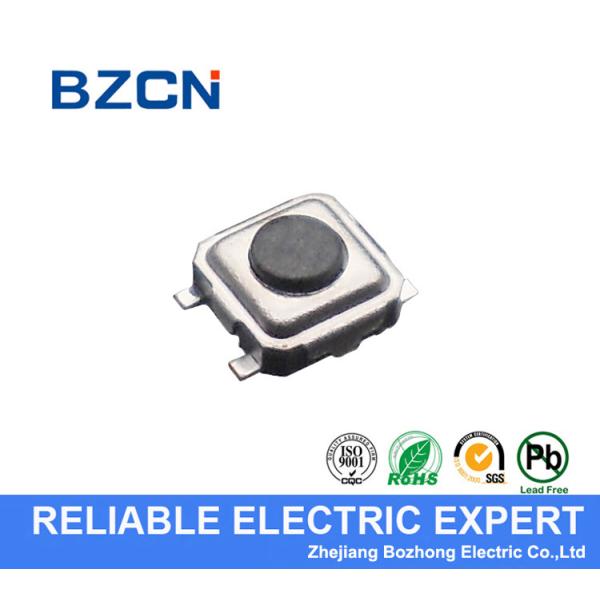

3.3*3.3 mm SMD / SMT momentary tact switch with long life contact for PCB

Tact switch is surface mount and ultraminiature. It is a mere 4.2mm x 3.2mm in size. With the small footprint, and SMT design, it can be used for many small applications, including wearable technology, medical devices, audio/visual and much more.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Reflow solderable

Spec.

Model No. TS-A007
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

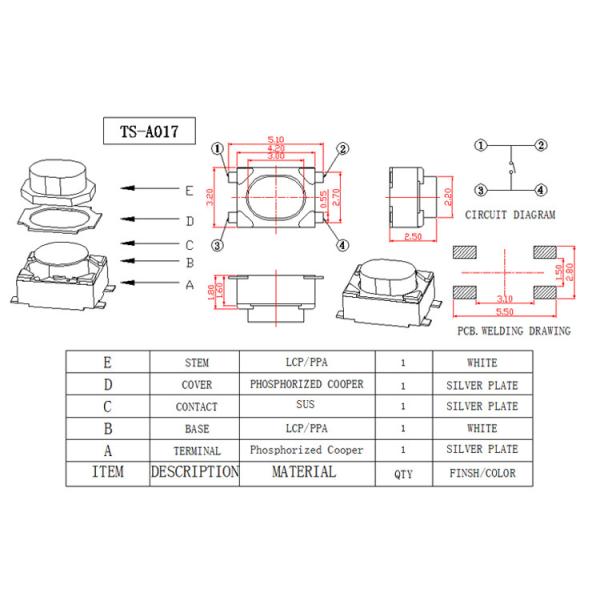

Drawing:

SMD Miniature Tactile Switch , SMT Tact Switch 3.3X3.3 Mm With Long Life Contact
