Square SMD Tactile Switch Yellow Dust Proof Film Momentary Operation Type
Square SMD Tactile Switch Yellow Dust Proof Film Momentary Operation Type
Specifications
Brand Name :
BZCN
Model Number :
TS-A005
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Direction :
Direct press
Case :
Black PA66
Rating :
50mA
Voltage :
12v
Travel :
0.15 mm
Center push :
180 gf
Description

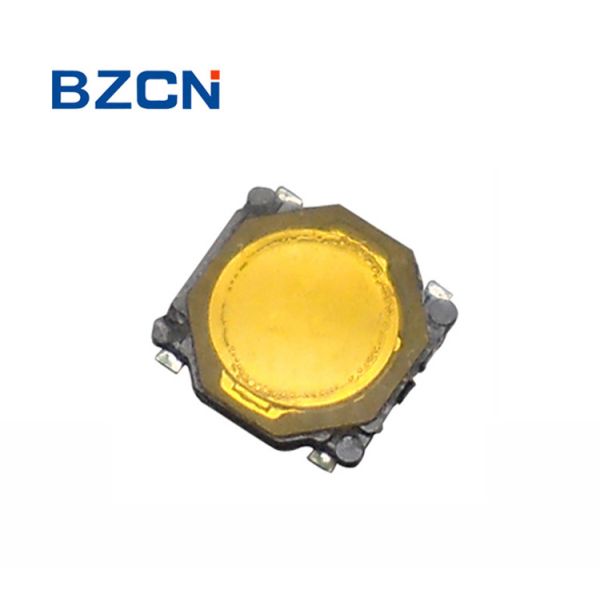

Ultra thin square SMD momentary tact switch 3.7*3.7 mm with yellow dust proof film

Tact switch is surface mount and ultraminiature in size.

• Up to 100,000 cycles life expectancy
• 100gf and 160gf options
• Surface mount design

With the small footprint and low profile, and the SMT design, it can be used for many small applications, including wearable technology, medical devices, audio/visual and other products where space is at a premium.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Surface mount on PC Board

Ultra thin

Spec.

Model No. TS-A005
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

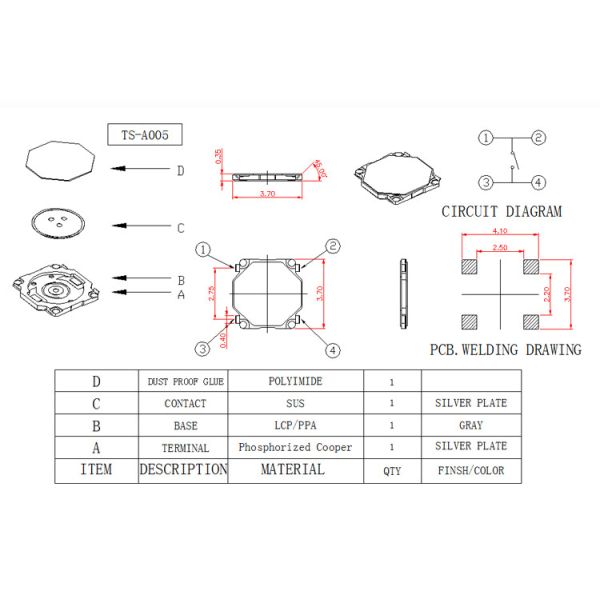

Drawing:

Square SMD Tactile Switch Yellow Dust Proof Film Momentary Operation Type
