50mA Rating Miniature Tactile Switch , Micro Light Switch Dust Proof Firm
50mA Rating Miniature Tactile Switch , Micro Light Switch Dust Proof Firm
50mA Rating Miniature Tactile Switch , Micro Light Switch Dust Proof Firm
50mA Rating Miniature Tactile Switch , Micro Light Switch Dust Proof Firm
Specifications
Brand Name :
BZCN
Model Number :
TS-A015
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Direction :
one way
Shape :
Square
Rating :
50mA
Type :
Thin firm
Travel :
0.1 mm
Center push :
260 gf
Description

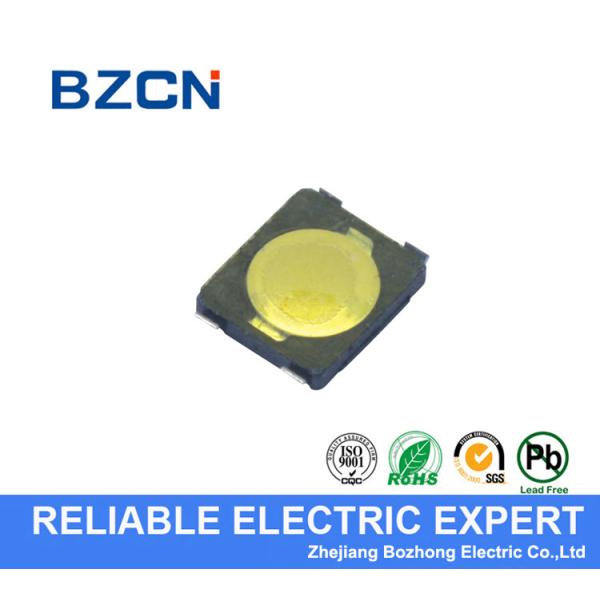

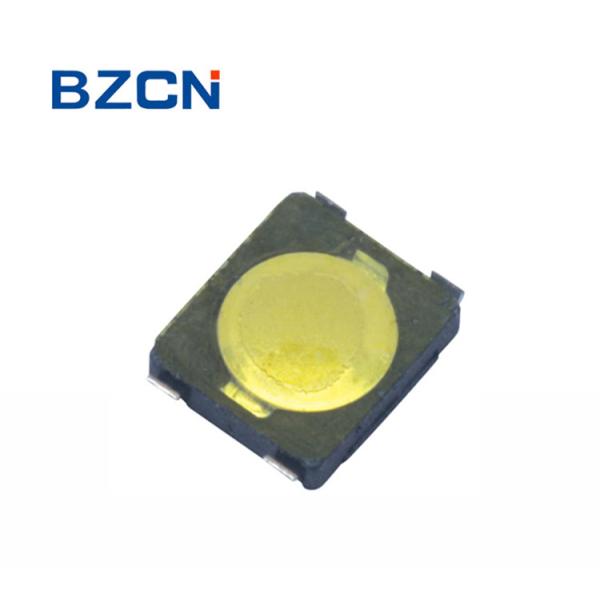

Miniature 2.7*3 mm tact switch with yellow dust proof firm SMD/SMT Micro light tactile switch

• 4.5mm x 4.5mm tactile switch
• Ultra low profile with .55mm height
• 100 ± 30; 160 ± 50; 250 ± 50 gram force options
• Surface mount design

This switch is great for consumer electronics and audio/visual devices. It is also great for medical devices, testing/instrumentation, telecommunications and computers/peripherals.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Surface mount on PC Board

Taping reel packing

Spec.

Model No. TS-A015
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

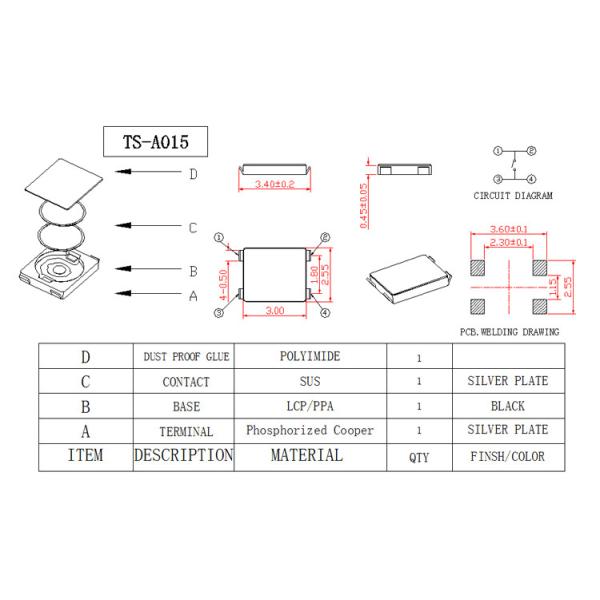

Drawing:

50mA Rating Miniature Tactile Switch , Micro Light Switch Dust Proof Firm
