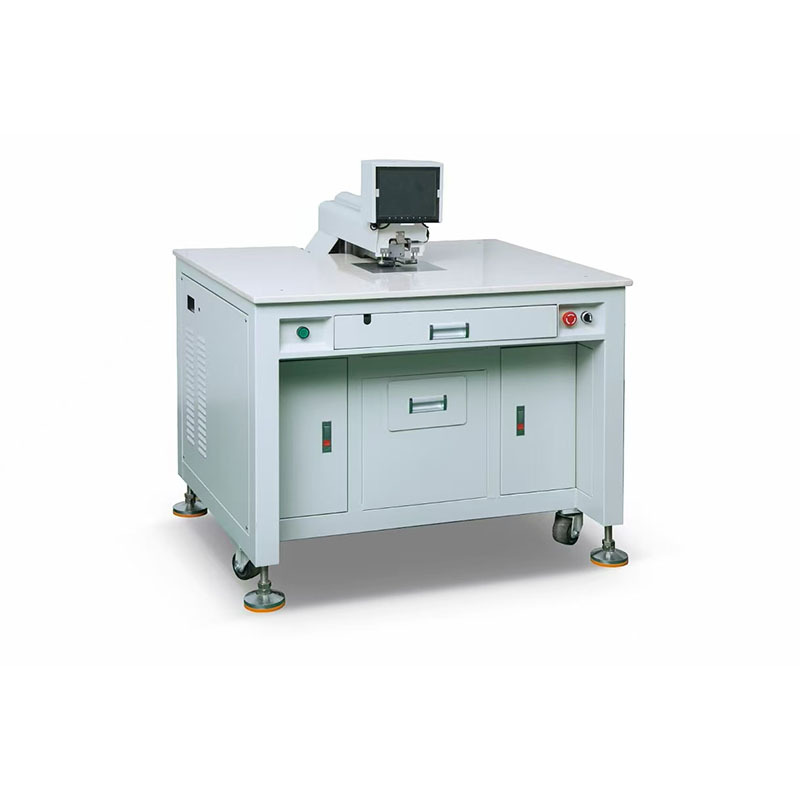

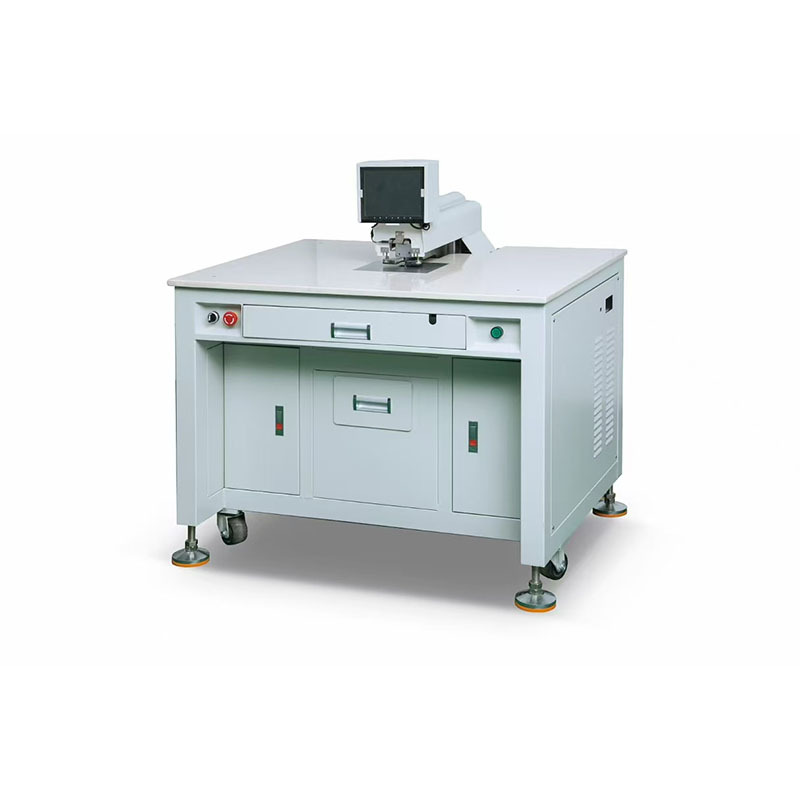

Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate
Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate
Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate
Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate
Specifications
Brand Name :
SILITRON
Model Number :
SLTZ15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
L1360 x W880 x H1350 mm
Speed :
0.4s/hole
Precision :
±0.015mm
Substrate thickness :
0.01-1mm(base on material)
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
The SLTZ15 is engineered for high-precision punching of metal substrates and nameplates, including aluminum sheets, stainless steel, stainless iron, nickel nameplates, and electroformed nameplates.
Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate
Machine Features
  • Interactive Windows XP Interface – Streamlines setup and operation.
  • Spacious Stage – Allows substrates to be adjusted and rotated with ease.
  • Rapid Hole Recognition & Punching – Less than one second per cycle.
  • Stable Transmission System – Micro-step motors maintain consistent accuracy.
  • Enhanced Illumination – Top and bottom lights improve recognition for all substrate types.
  • Fully Automated Touch Operation – No foot pedal required for faster workflow.
  • Flexible Tooling – Die sizes can be switched to handle different hole requirements.
  • Reusable Sampling Plans – Quickly recall previous setups for repeated jobs.
  • Software Upgrades Available – Keeps the system current with latest improvements.
  • Quality-Imported Components – Cylinders, valves, and rails guarantee long-term reliability.
Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm

Workable Marks

Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate Semi-auto CCD Guide Hole Punch Machine For Metal Aluminium Substrate

Equipment Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
