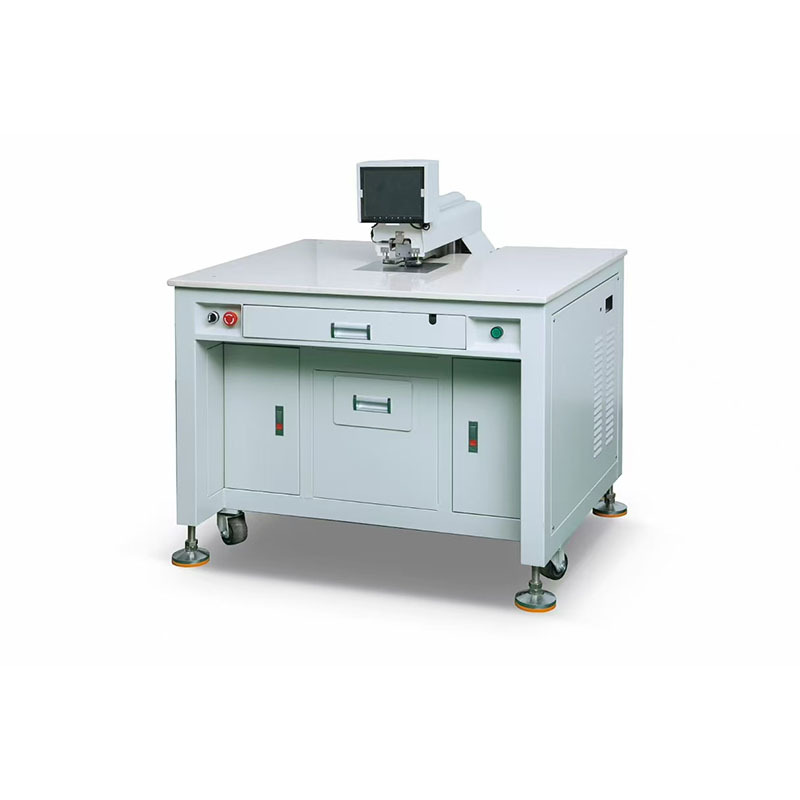

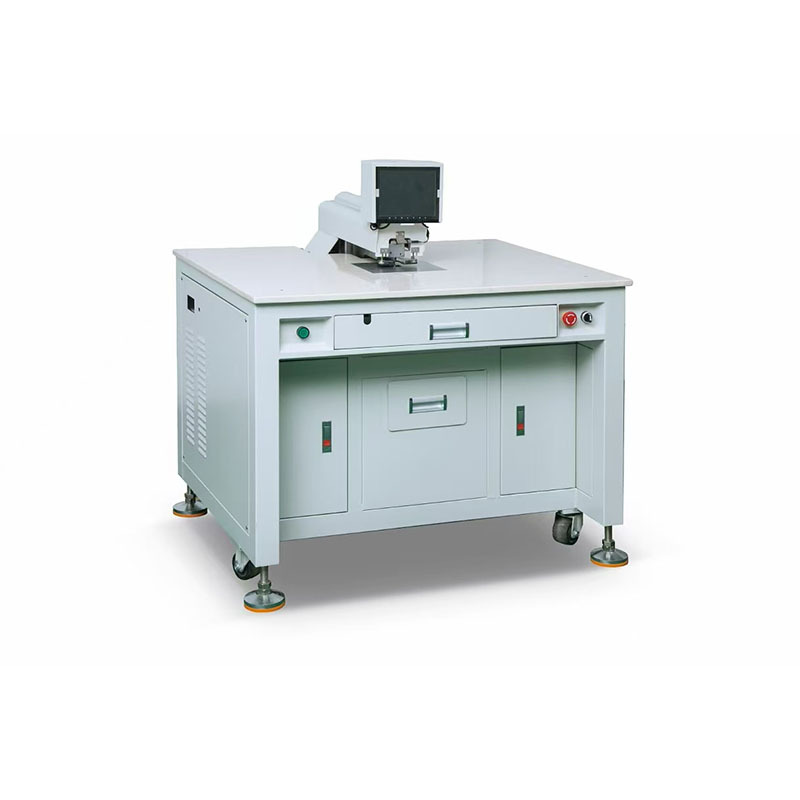

Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates
Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates
Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates
Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates
Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates
Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates
Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates
Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates
Specifications
Brand Name :
SILITRON
Model Number :
SLTZ15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
L1360 x W880 x H1350 mm
Material of punch die :
SKD11/61 quenched
Punch die life :
1 million cycles
Light source :
White and colors
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
Apply for:PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, stainless steel, stainless iron, nickel nameplates, electroformed nameplates, and other
materials.
Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates
Machine Features

  • Interactive Touch & Mouse Interface – Smooth operation for operators of all skill levels.

  • Spacious Worktable – Supports rotation and positioning of various substrate sizes.

  • Super-Fast Punching – Complete hole recognition and punching in one second.

  • High-Precision Transmission – Micro-step motor driver ensures consistent results.

  • Dual Lighting System – Up and down lights enhance recognition across materials.

  • Pedal-Free Operation – Entire process controlled via touch-screen for faster workflow.

  • Adjustable Tooling – Punch dies can be changed to match different material thicknesses and hole sizes.

  • Program Memory Function – Save and recall work programs for repeatability.

  • Upgradeable Software – Computer system can be upgraded over its lifetime.

  • High-Quality Imported Components – Imported cylinders, solenoid valves, rails, and relief valves ensure long-term durability.

Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm
Speed 0.4s/hole
Substrate thickness 0.01-1mm(base on material)

Workable Marks

Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates Semi-auto CCD Hole Punch Machine For Signs Metal Nameplates

Equipment Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.

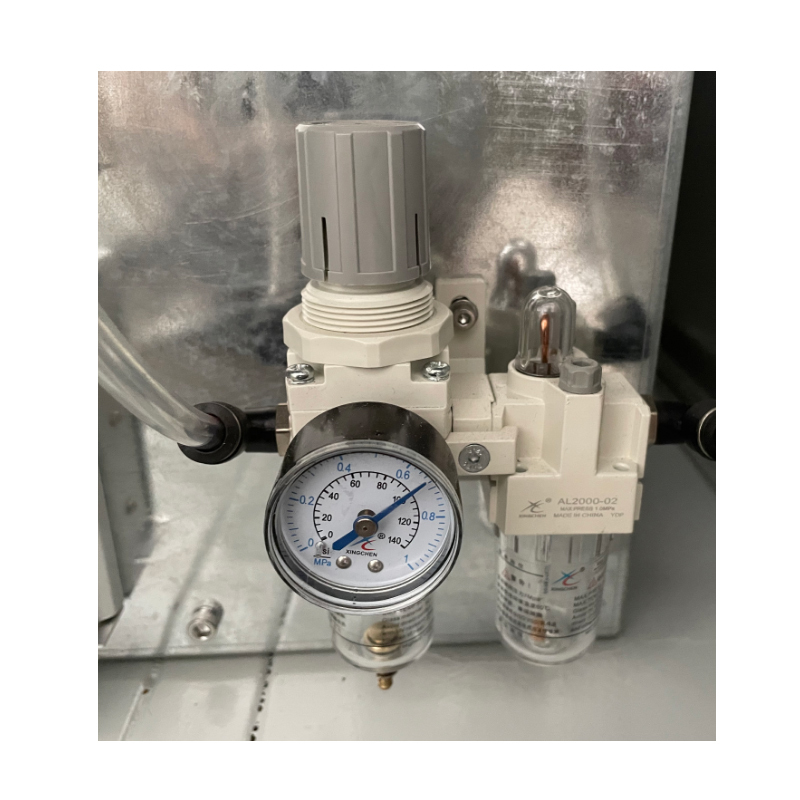

  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
