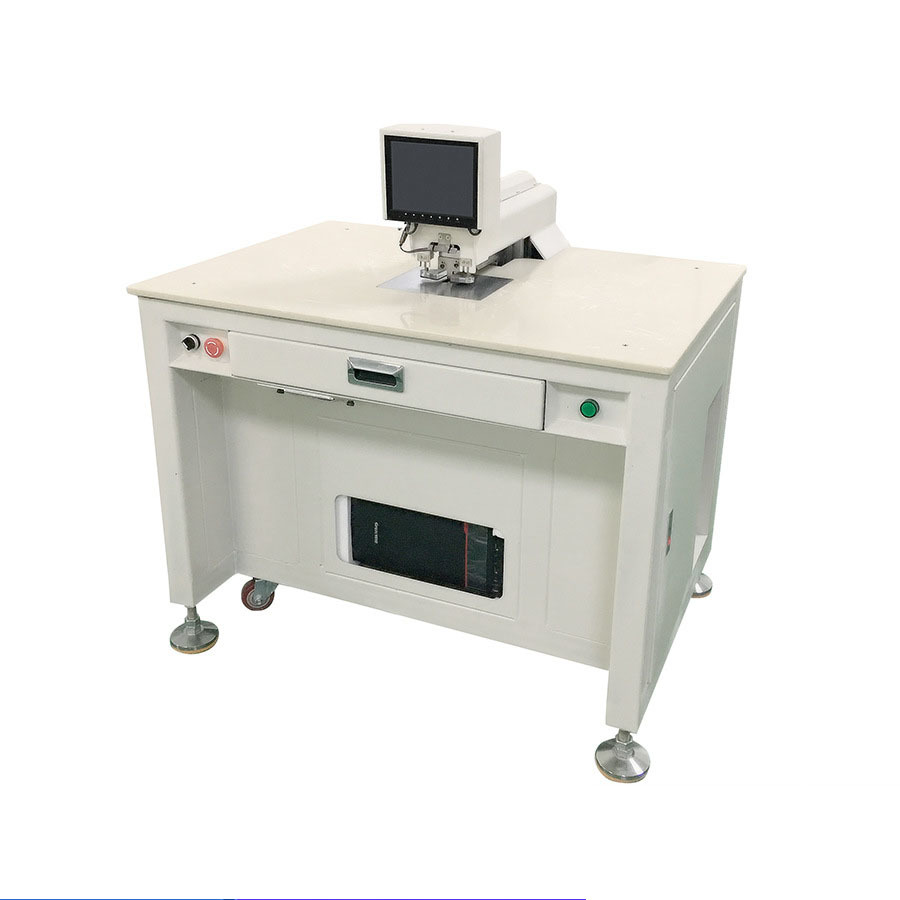

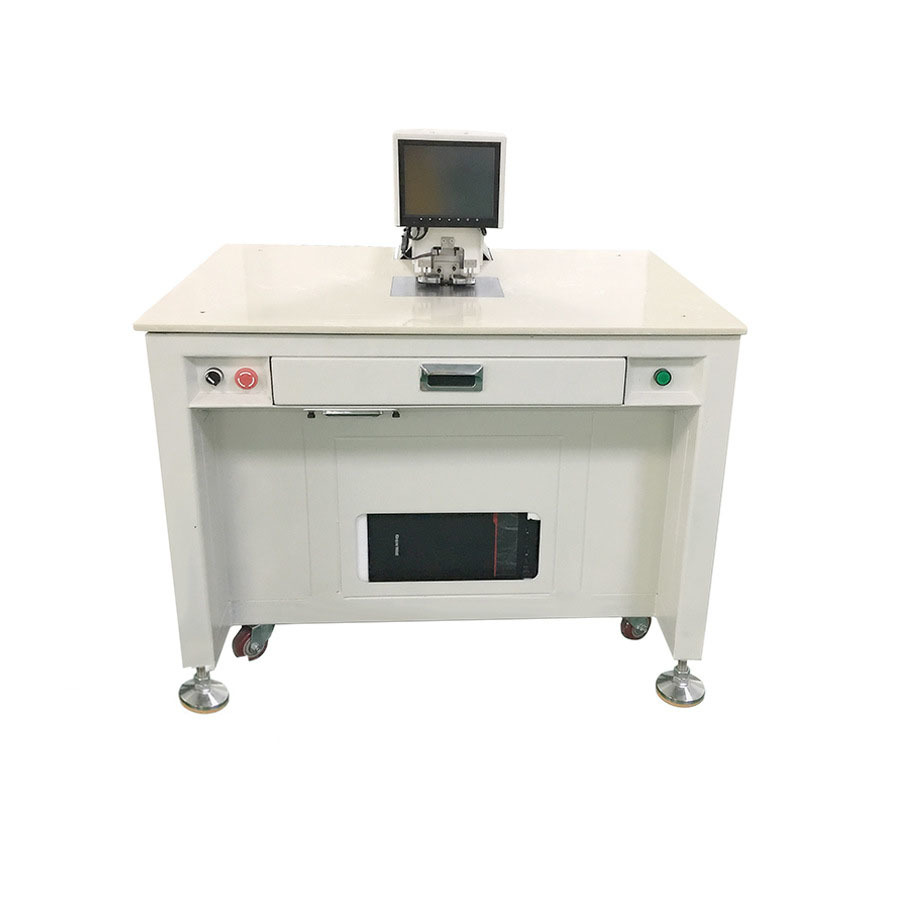

Automatic CCD Target Hole Puncher Guide Hole Punching Machine For Anodized Aluminum Name Plate Signs
Automatic CCD Target Hole Puncher Guide Hole Punching Machine For Anodized Aluminum Name Plate Signs
Automatic CCD Target Hole Puncher Guide Hole Punching Machine For Anodized Aluminum Name Plate Signs
Automatic CCD Target Hole Puncher Guide Hole Punching Machine For Anodized Aluminum Name Plate Signs
Specifications
Brand Name :
SILITRON
Model Number :
SLTZ15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
L1360 x W880 x H1350 mm
Material of punch die :
SKD11/61 quenched
Punch die life :
1 million cycles
Substrate thickness :
0.01-1mm(base on material)
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
Apply for:PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, stainless steel, stainless iron,anodized auluminum, nickel nameplates, electroformed nameplates, and other
materials.

Automatic CCD Target Hole Puncher Guide Hole Punching Machine For Anodized Aluminum Name Plate Signs

Machine Features

  • Windows XP Touch Interface – Easy operation and process monitoring.

  • Large Work Surface – Handles aluminum, stainless steel, and electroformed nameplates with ease.

  • Fast Punching Cycle – Detect and punch holes in less than a second.

  • High-Accuracy Transmission – Micro-step motors ensure ±0.015 mm precision.

  • Dual LED Lighting – Up-light and down-light improve CCD detection on reflective metals.

  • No Pedal Needed – Entire operation completed via touch-screen.

  • Variable Tooling Options – Supports multiple hole sizes and material thicknesses.

  • Job Program Storage – Save and reuse setups for consistent results.

  • Upgrade-Ready Software – System can be updated for enhanced capabilities.

  • Durable Imported Parts – Imported valves, rails, and cylinders enhance machine longevity.


Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm
Speed 0.4s/hole



Workable Marks

Automatic CCD Target Hole Puncher Guide Hole Punching Machine For Anodized Aluminum Name Plate Signs Automatic CCD Target Hole Puncher Guide Hole Punching Machine For Anodized Aluminum Name Plate Signs


Equipment Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
