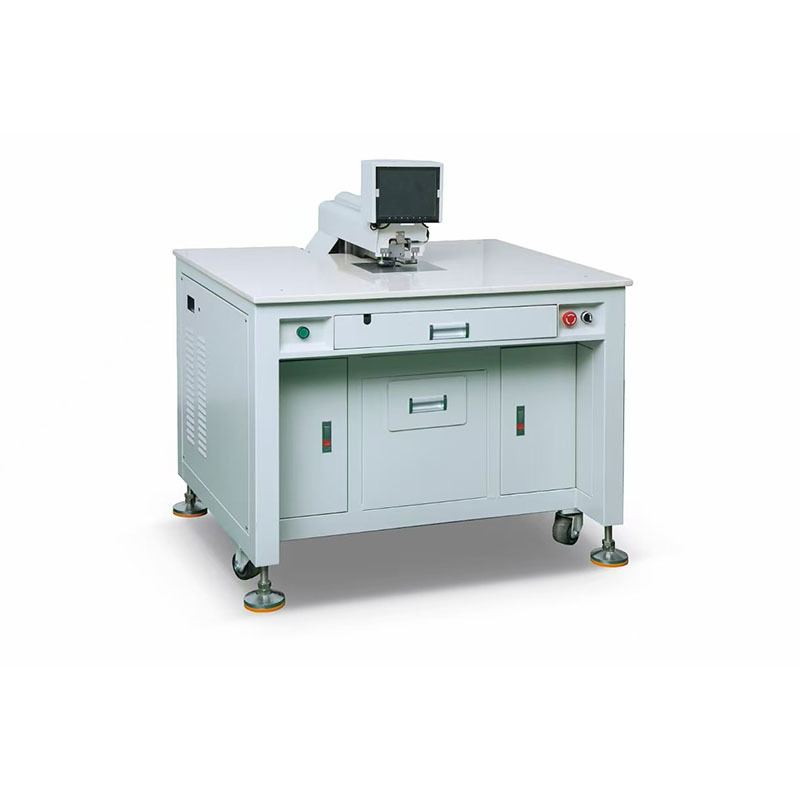

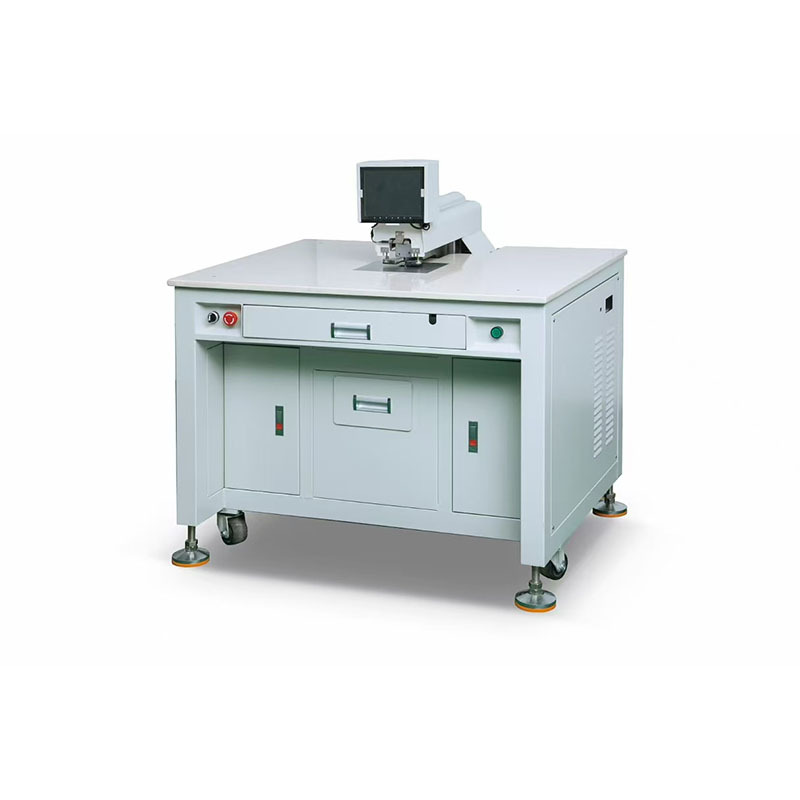

Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Specifications
Brand Name :
SILITRON
Model Number :
SLTZ15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
L1360 x W880 x H1350 mm
Material of punch die :
SKD11/61 quenched
Punch die life :
1 million cycles
Light source :
White and colors
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
Apply for:PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, stainless steel, stainless iron, nickel nameplates, electroformed nameplates, and other
materials.
Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates
Machine Features

  • User-Friendly Windows XP System – Simplifies control and navigation.

  • Wide Operation Stage – Enables easy material placement and rotation.

  • High-Speed Punching – Punch holes rapidly with precise CCD alignment.

  • Micro-Step Motor Drive – Guarantees stable and accurate performance.

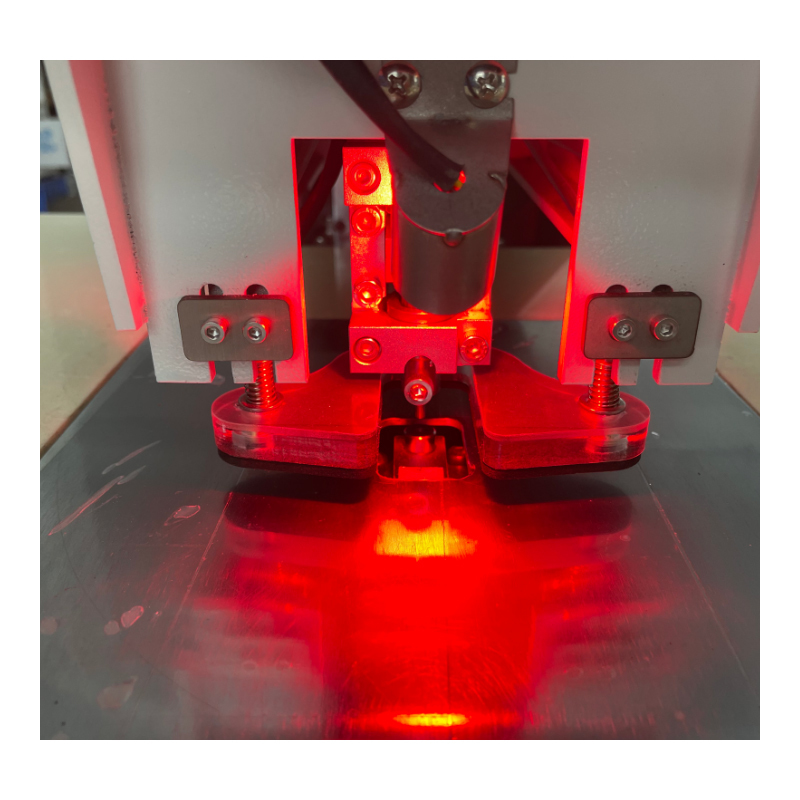

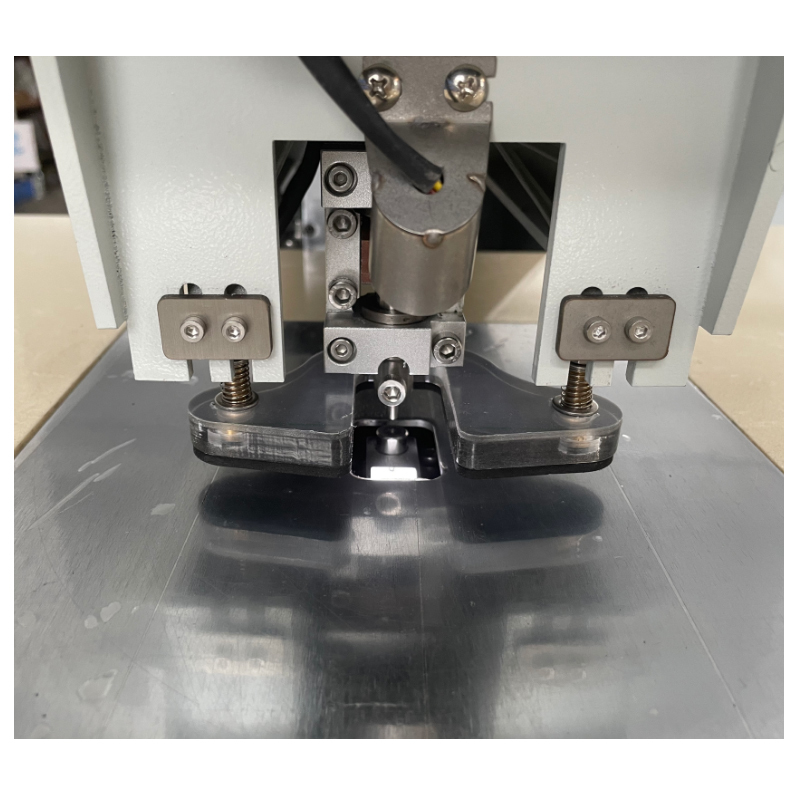

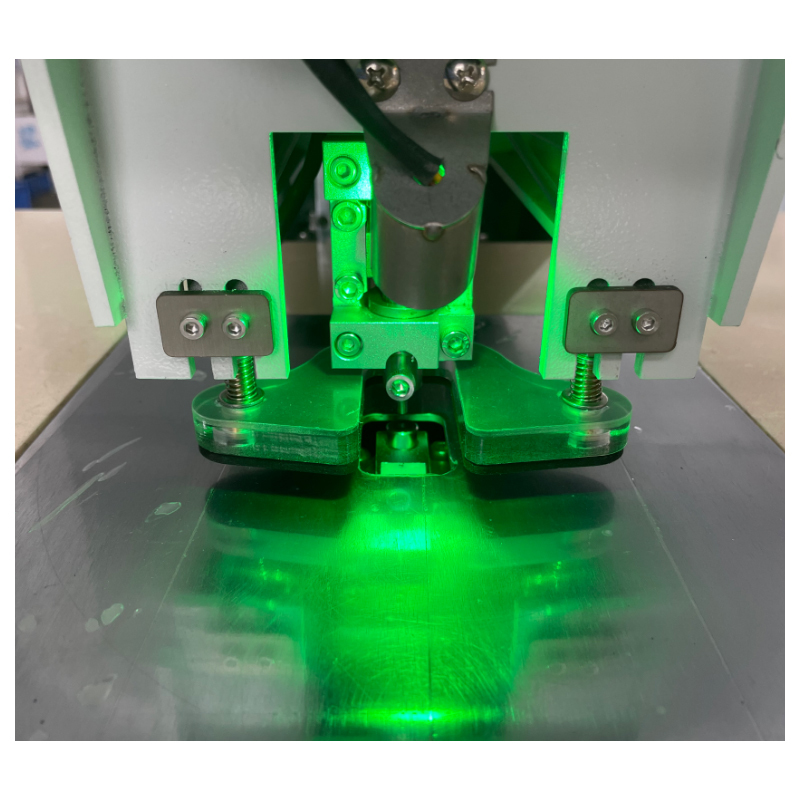

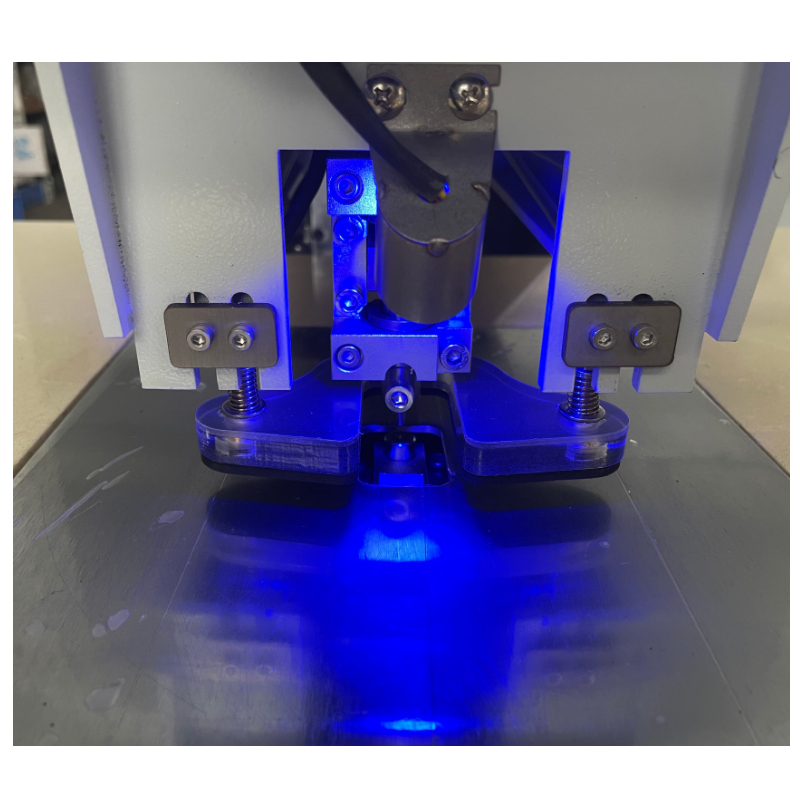

  • Optimized Lighting – Top and bottom illumination for all material types.

  • Touch-Screen Control – Eliminates the need for foot pedals, boosting speed.

  • Flexible Die Compatibility – Accommodates different thicknesses and diameters.

  • Stored Job Plans – Reuse previous programs to save setup time.

  • Lifetime Software Upgrade Support – Keep system optimized with new features.

  • Imported Key Components – Ensures durability, stability, and long-term service life.

Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm
Speed 0.4s/hole
Substrate thickness 0.01-1mm(base on material)

Workable Marks

Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates Semi-auto CCD Hole Punching Machine For Stainless Steel Aluminum Nameplates

Equipment Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
