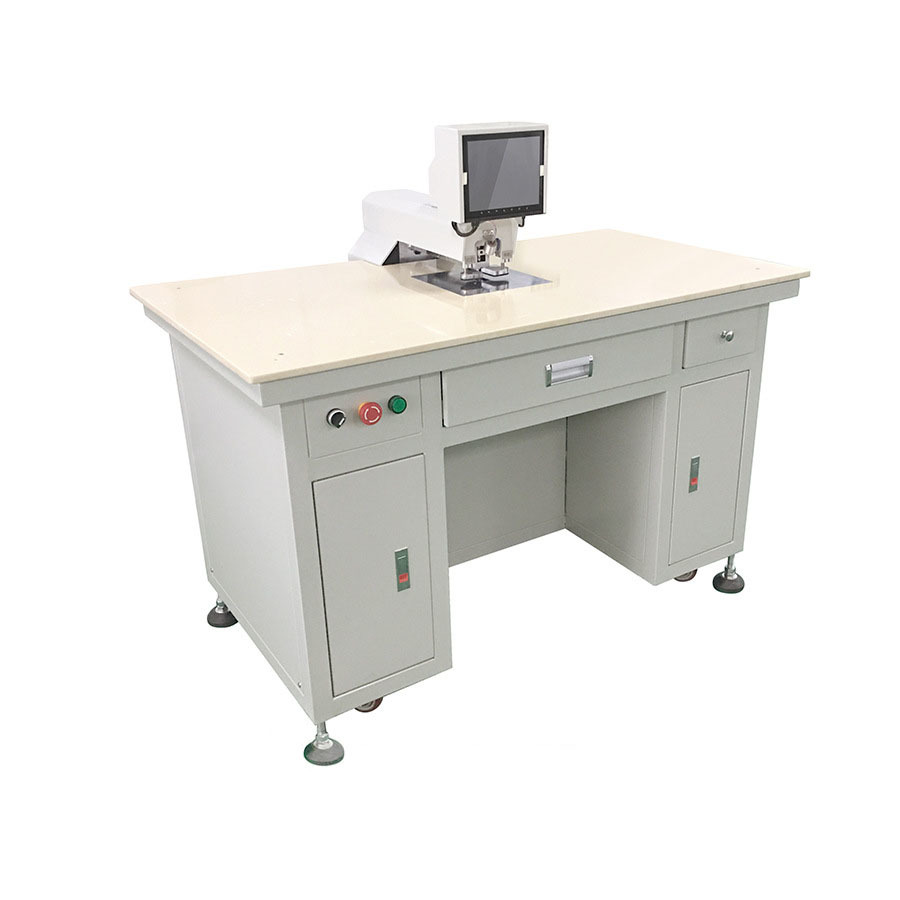

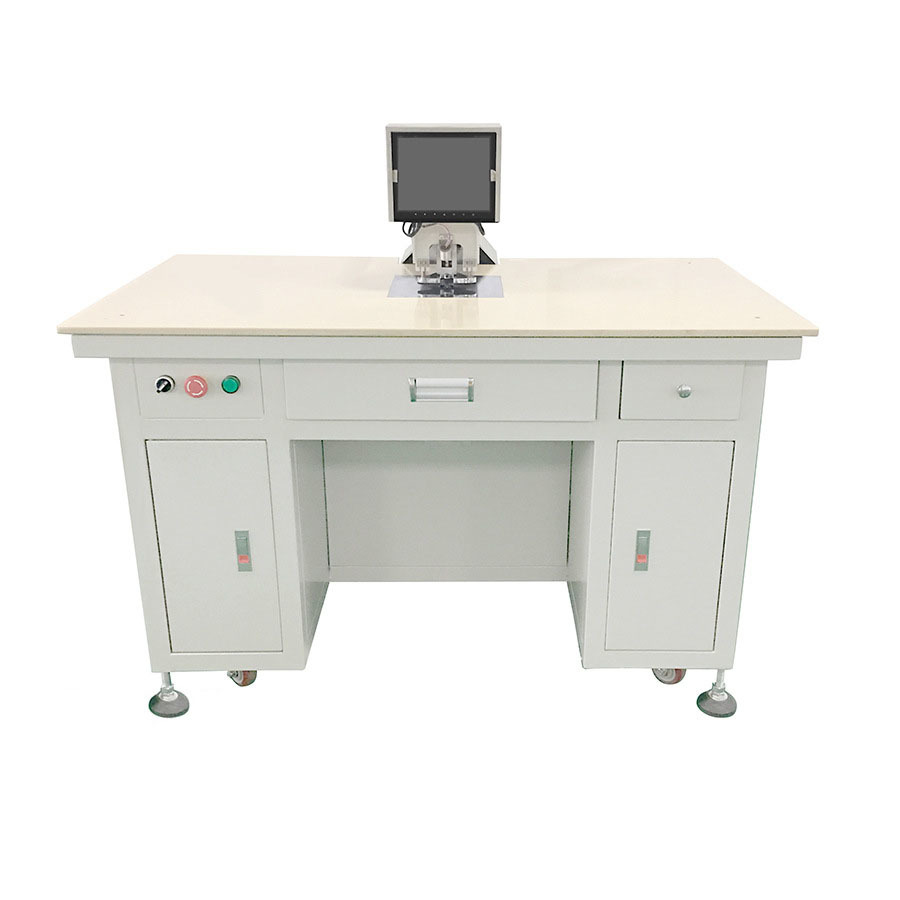

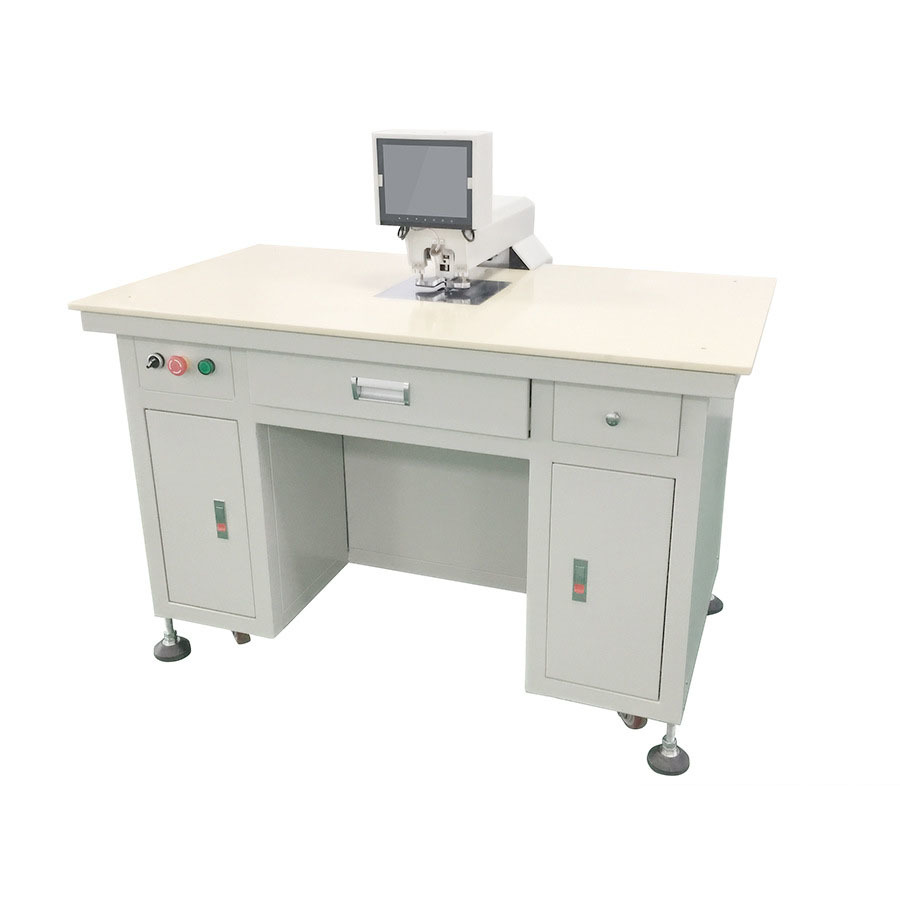

SLT15 Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
SLT15 Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
SLT15 Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
SLT15 Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
SLT15 Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
SLT15 Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate
Specifications
Brand Name :
SILITRON
Model Number :
SLT15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 per month
Packaging Details :
L1360 x W880 x H1350 mm
Precision :
±0.015mm
Speed :
0.35s/hole
Substrate thickness :
0.01-1mm(base on material)
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
It's widely used for PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, flex printed circuits, medical labels, graphic overlays, and other materials.
Punching Samples

SLT15 Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate

Machine Features
(1) Function: Large marble working table, all sheets are OK; CCD automatic positioning and punching.
(2) High accuracy, the overall error is less than or equal to 0.02mm
(3) The punching speed is fast, the average punching speed is 7-8 times than the manual
punching speed, only 0.5 seconds per hole.
(4) No dragging, precise positioning of icons and automatic punching;
(5) Flexible materials and aluminum material such as aluminum nameplate can be punched
by the machine without damaging the materials. Fast, the software can be upgraded for in free for lifelong;
(6) Computer working system, human-machine interface, setting working mode directly on the touch screen, simple and intuitive;
(7) Special light source recognition method, which can automatically recognize circular
diagrams on various materials and automatically align and punch holes;
(8) When working, you can directly observe the punching situation on the 8-inch computer screen or the punching place;
(9) When punching, the punched film is flattened by the stamper on the equipment to make punching more precise;
(10) Specialized settings can be provided. The computer system can be upgraded and provides you with strong professional technical support.
(11) Image processing: Binary integrated image processing method.
Technical Parameter
Model SLT15
Dimension L1250 x W780 x H1150mm
Weight 200KG
Table size L1250 x W770mm
Punching force 2500N
Air pressure 0.4~0.8Mpa
Voltage AC 220V-240V 50HZ
Power 0.4kW
Precision ±0.015mm
Light source white and colors

Workable Marks

SLT15 Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate SLT15 Semi-auto CCD Guide Hole Punching Machine For PC Polycabonate

Equipment Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
