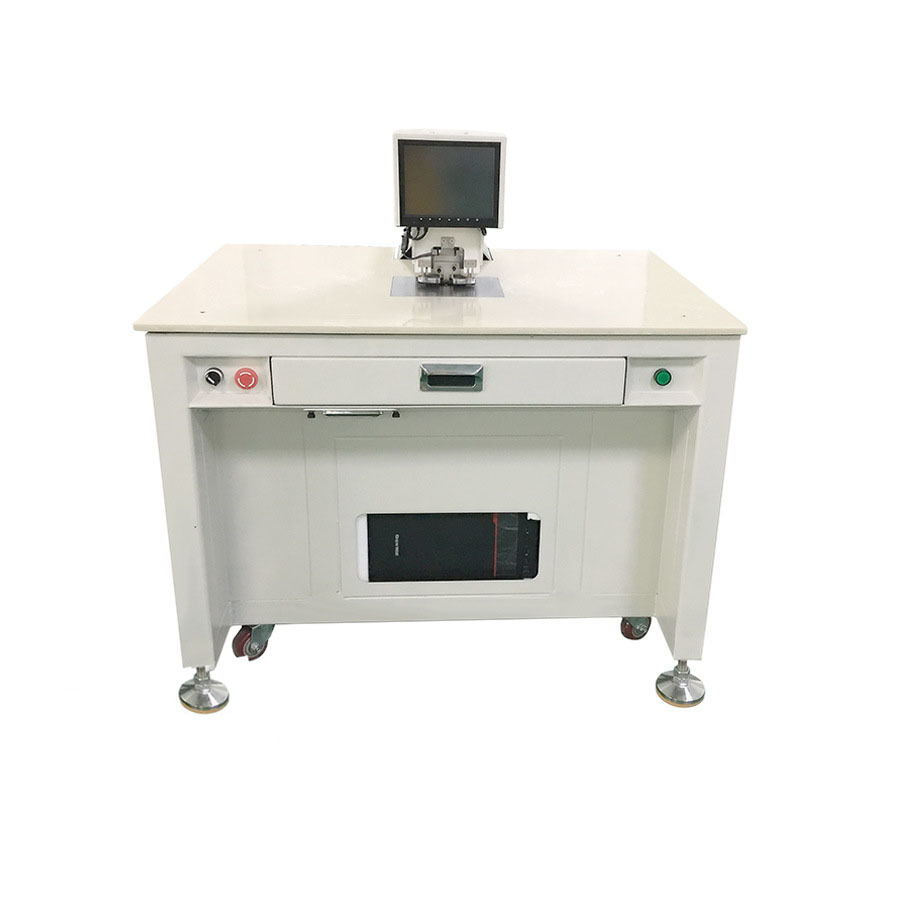

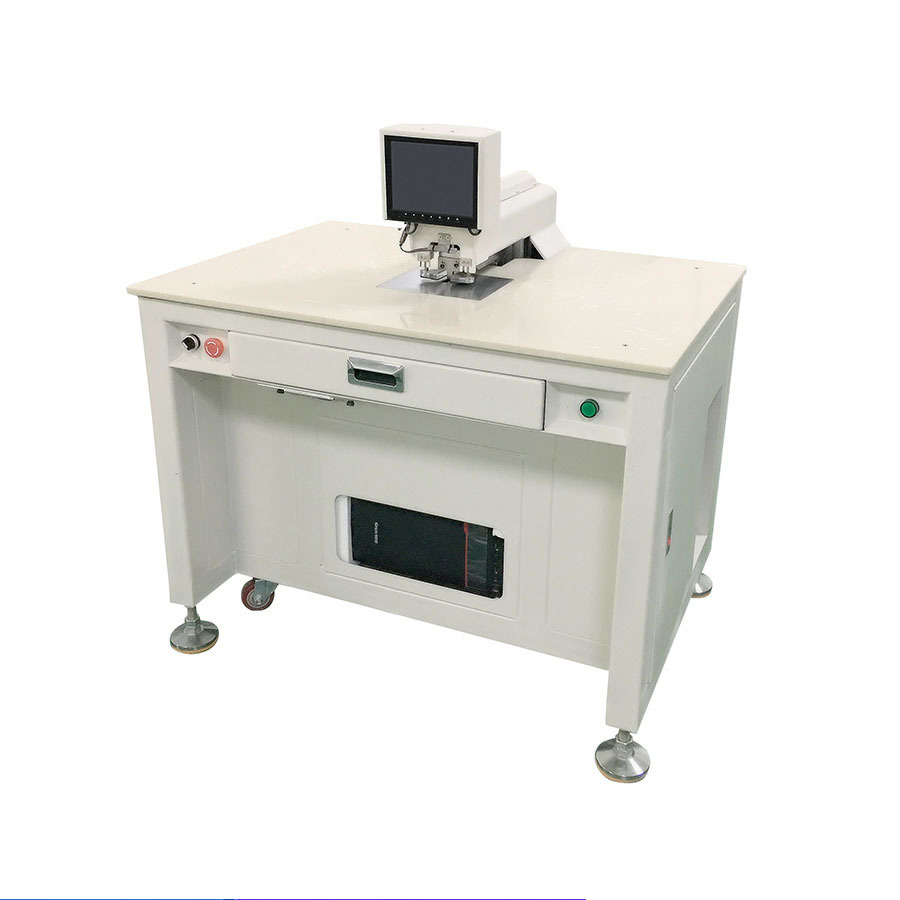

SLTZ15 Semi-auto CCD Guide Hole Punching Machine For Stainless Steel Nameplate
SLTZ15 Semi-auto CCD Guide Hole Punching Machine For Stainless Steel Nameplate
SLTZ15 Semi-auto CCD Guide Hole Punching Machine For Stainless Steel Nameplate
SLTZ15 Semi-auto CCD Guide Hole Punching Machine For Stainless Steel Nameplate
Specifications
Brand Name :
SILITRON
Model Number :
SLTZ15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
L1360 x W880 x H1350 mm
Speed :
0.4s/hole
Table size :
L1100 x W770mm
Substrate thickness :
0.01-1mm(base on material)
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
It's widely used for PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, polycarbonate, membrane switches, flex printed circuits, medical labels, graphic overlays, nameplates, stainless steel, stainless iron, nickel nameplates, electroformed nameplates and other materials.
SLTZ15 Semi-auto CCD Guide Hole Punching Machine For Stainless Steel Nameplate
Machine Features
(1) Function: Large marble working table, all sheets are OK; CCD automatic positioning and punching.
(2) High accuracy, the overall error is less than or equal to 0.015mm
(3) The punching speed is fast, the average punching speed is 7-8 times than the manual
punching speed, only 0.4 seconds per hole.
(4) No dragging, precise positioning of icons and automatic punching;
(5) Flexible materials and aluminum material such as aluminum nameplate can be punched
by the machine without damaging the materials. Fast, the software can be upgraded for in free for lifelong;
(6) Computer working system, human-machine interface, setting working mode directly on the touch screen, simple and intuitive;
(7) Special light source recognition method, which can automatically recognize circular
diagrams on various materials and automatically align and punch holes;
(8) When working, you can directly observe the punching situation on the 8-inch computer screen or the punching place;
(9) When punching, the punched film is flattened by the stamper on the equipment to make punching more precise;
(10) Specialized settings can be provided. The computer system can be upgraded and provides you with strong professional technical support.
(11) Image processing: Binary integrated image processing method.
Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm

Workable Marks

SLTZ15 Semi-auto CCD Guide Hole Punching Machine For Stainless Steel Nameplate SLTZ15 Semi-auto CCD Guide Hole Punching Machine For Stainless Steel Nameplate

Equipment Main Components
  • Transmission components: motor, lead screw, guide rail, slider, coupling, bearing, limit photoelectric switch, metal connecting plate.
  • Pneumatic components: solenoid valve, cylinder, oil–water filter, punching die, control relay.
  • Vision components: video capture card, camera, lens, infrared light source, touchscreen display.
  • Control components: industrial PC, motion control card, SLT automatic punching software, camera auto-positioning calculation system, relay on/off control system.
  • Electrical components: AC–DC power supply, short-circuit protection air switch, driver, solenoid valve.
