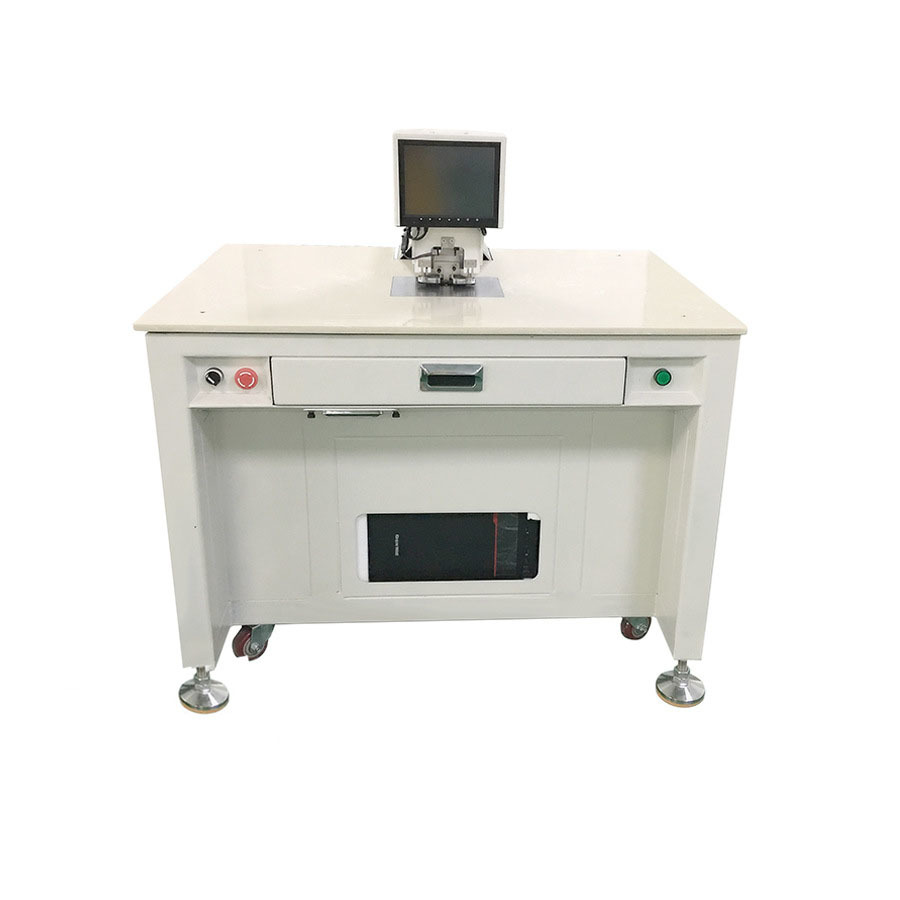

Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Specifications
Brand Name :
SILITRON
Model Number :
SLTZ15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
L1360 x W880 x H1350 mm
Material of punch die :
SKD11/61 quenched
Punch die life :
1 million cycles
Light source :
White and colors
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
Apply for:PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, stainless steel, stainless iron, anodized aluminum nameplate, nameplate label, stainless steel label, aluminum steel namplate, anodized industrial nameplate, steel aluminum cable tage, nickel nameplates, electroformed nameplates, and other
materials.
Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label
Machine Features

  • Windows XP Touch Interface – Easy operation and process monitoring.

  • Large Work Surface – Handles aluminum, stainless steel, and electroformed nameplates with ease.

  • Fast Punching Cycle – Detect and punch holes in less than a second.

  • High-Accuracy Transmission – Micro-step motors ensure ±0.015 mm precision.

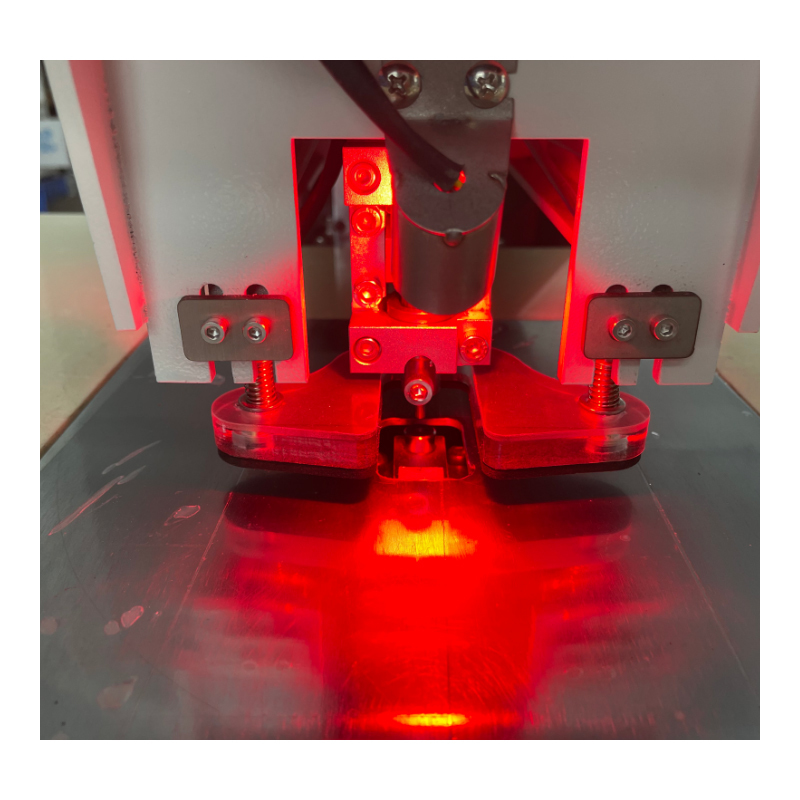

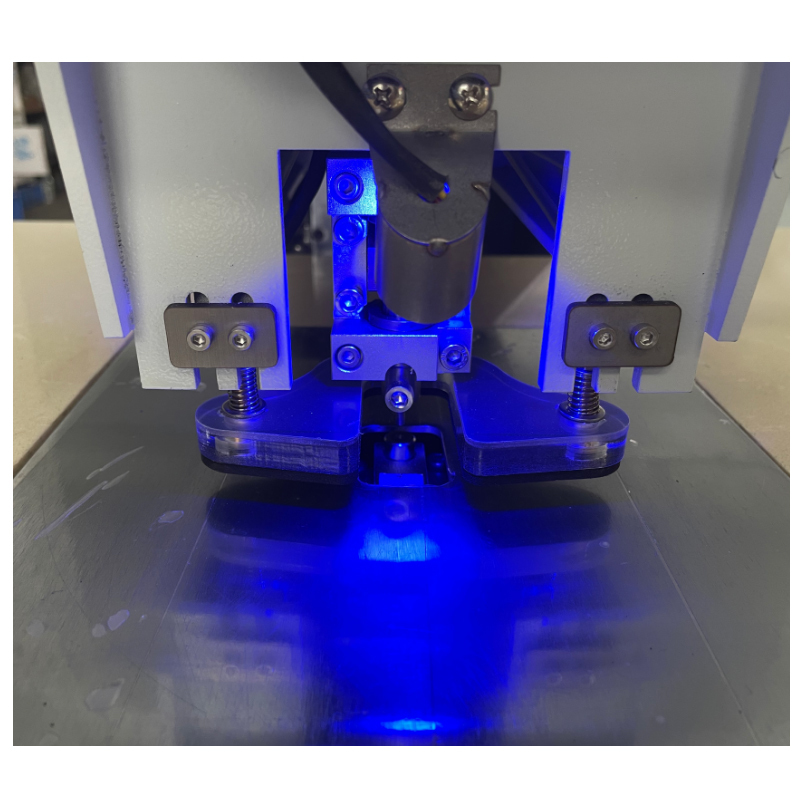

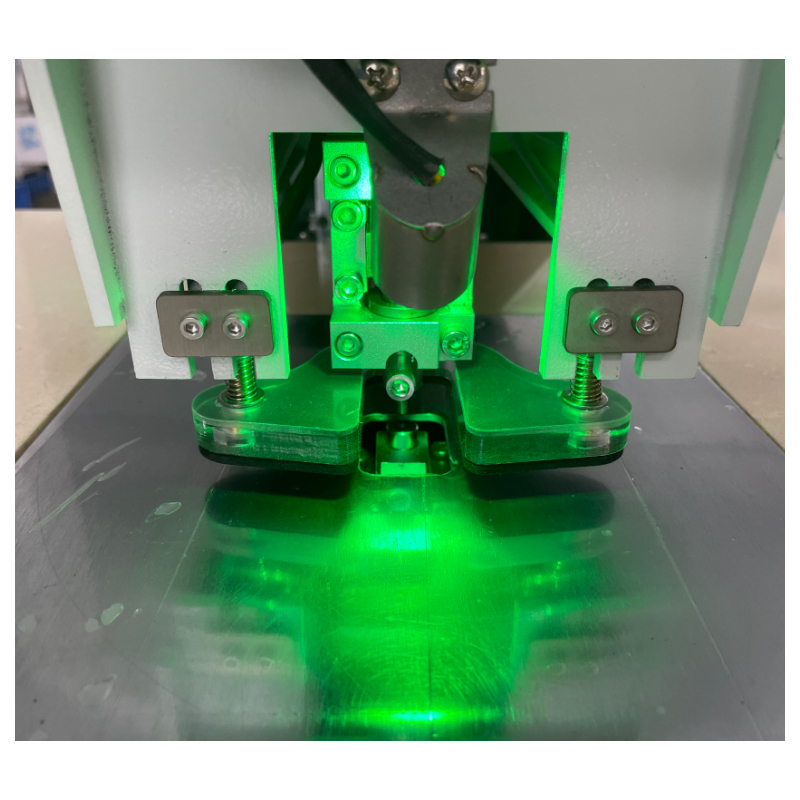

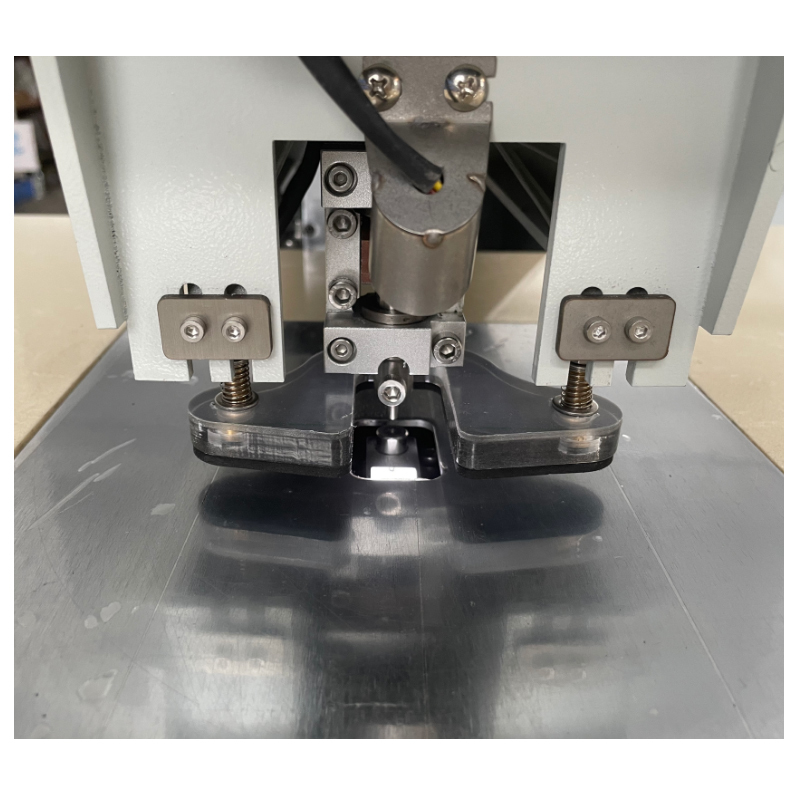

  • Dual LED Lighting – Up-light and down-light improve CCD detection on reflective metals.

  • No Pedal Needed – Entire operation completed via touch-screen.

  • Variable Tooling Options – Supports multiple hole sizes and material thicknesses.

  • Job Program Storage – Save and reuse setups for consistent results.

  • Upgrade-Ready Software – System can be updated for enhanced capabilities.

  • Durable Imported Parts – Imported valves, rails, and cylinders enhance machine longevity.

Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm
Speed 0.4s/hole
Substrate thickness 0.01-1mm(base on material)

Workable Marks

Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label Semi-auto CCD Camera Hole Punching Machine For Stainless Steel Name Plate Label

Main Configuration
Item
Brand
Origin
Guide rail / Slider
HIWIN
Taiwan
Lead screw
HIWIN
Taiwan
Coupling
Miki pulley
 Japan
Photoelectric switch
Omron
 Japan
Bearing
NSK
Japan
CCD Camera
Sony
Japan
Lens
Sony
Japan
Mainboard/software system
SLT
SLT
Cylinder/Solenoid valve
SHAKO
 Taiwan
