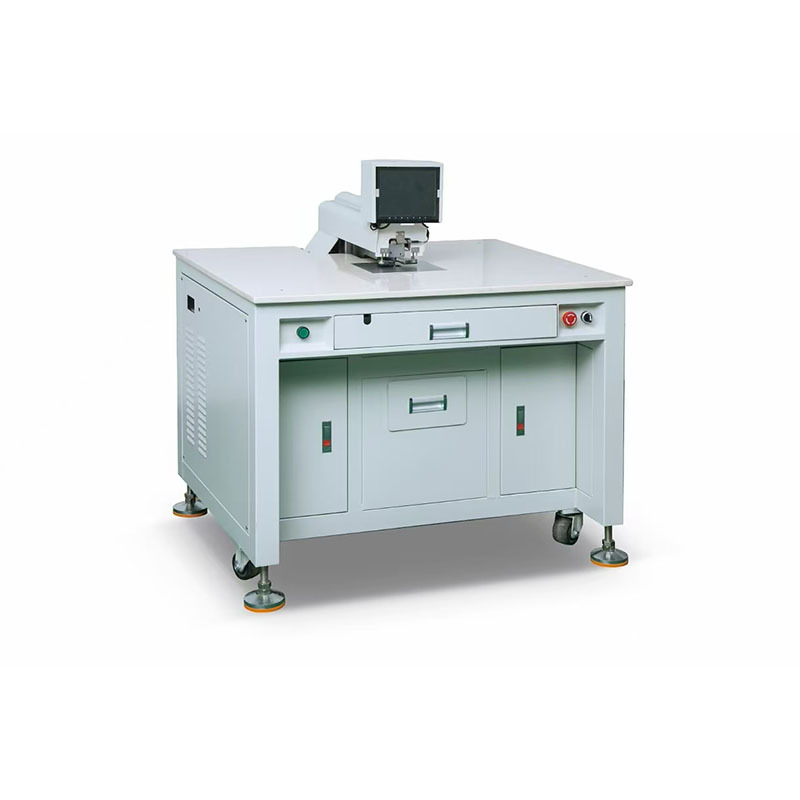

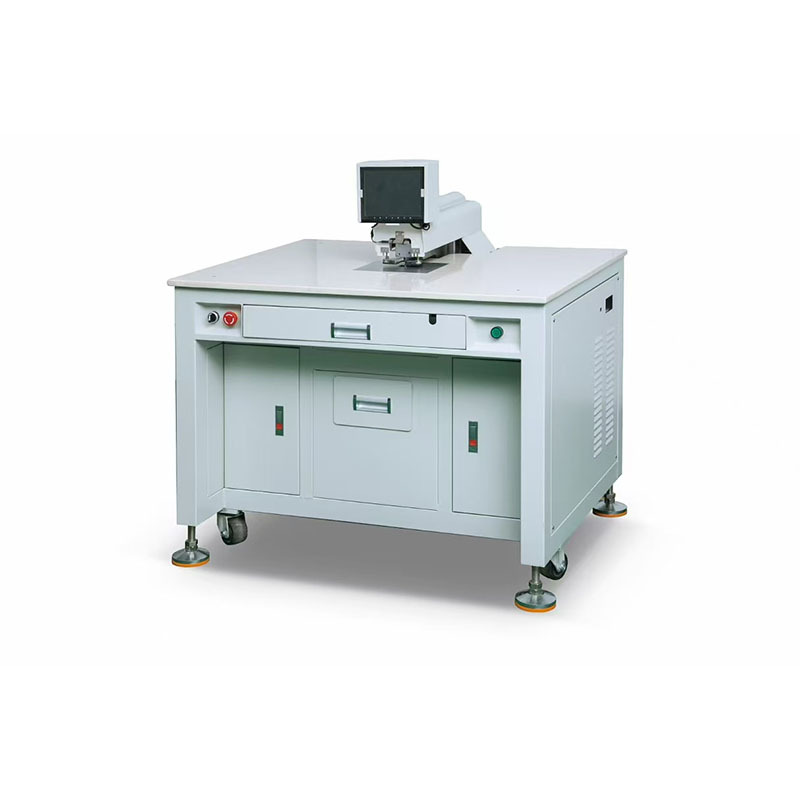

SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
Specifications
Brand Name :
SILITRON
Model Number :
SLTZ15
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
L1360 x W880 x H1350 mm
Material of punch die :
SKD11/61 quenched
Punch die life :
1 million cycles
Light source :
White and colors
Hole diameter :
Φ1－Φ5mm(customizable)
Description
Applicable Industries
Apply for:PET, PC, PVC, IMI/IMD, fiberglass boards, flexible circuits, films, photoplates, polyester, mobile phone panels, mobile phone keypads, aluminum substrates, thin aluminum sheets, nameplates, stainless steel, stainless iron, anodized aluminum nameplate, nameplate label, stainless steel label, aluminum steel namplate, anodized industrial nameplate, steel aluminum cable tage, nickel nameplates, electroformed nameplates, and other
materials.
SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label
Machine Features

  • User-Friendly Windows XP System – Simplifies control and navigation.

  • Wide Operation Stage – Enables easy material placement and rotation.

  • High-Speed Punching – Punch holes rapidly with precise CCD alignment.

  • Micro-Step Motor Drive – Guarantees stable and accurate performance.

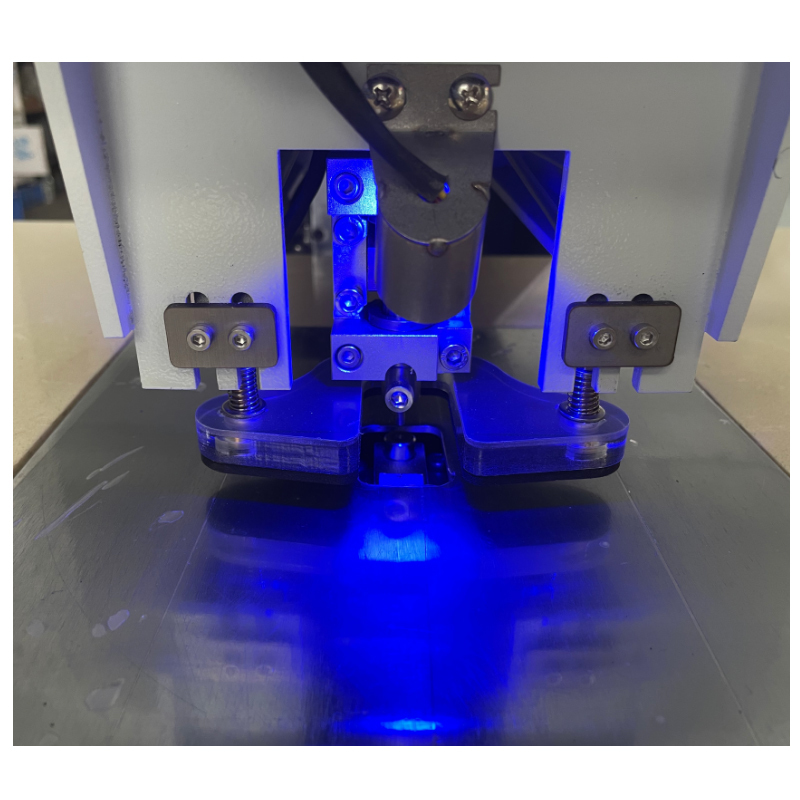

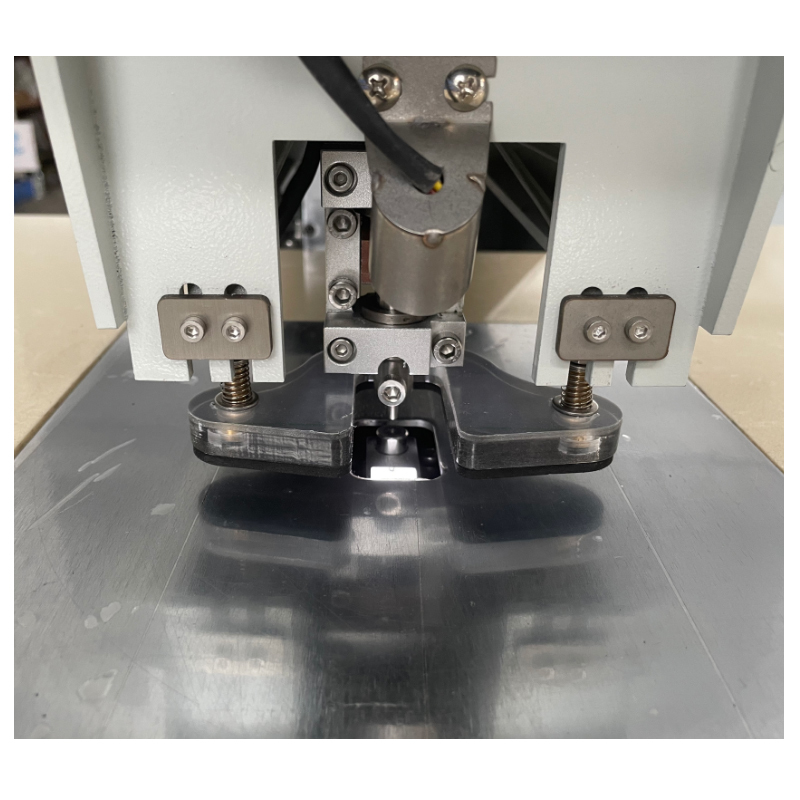

  • Optimized Lighting – Top and bottom illumination for all material types.

  • Touch-Screen Control – Eliminates the need for foot pedals, boosting speed.

  • Flexible Die Compatibility – Accommodates different thicknesses and diameters.

  • Stored Job Plans – Reuse previous programs to save setup time.

  • Lifetime Software Upgrade Support – Keep system optimized with new features.

  • Imported Key Components – Ensures durability, stability, and long-term service life.

Technical Parameter
Model SLTZ15
Dimension L1100 x W880 x H1150mm
Voltage AC 220V-240V 50HZ
Power 1kW
Air pressure 0.4~0.8Mpa
Weight 200kg
Punching force 9000N
Precision ±0.015mm
Table size L1100 x W770mm
Speed 0.4s/hole
Substrate thickness 0.01-1mm(base on material)

Workable Marks

SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label SLTZ15 Semi-auto CCD Camera Hole Punching Machine For Name Plate Label

Main Configuration
Item
Brand
Origin
Guide rail / Slider
HIWIN
Taiwan
Lead screw
HIWIN
Taiwan
Coupling
Miki pulley
 Japan
Photoelectric switch
Omron
 Japan
Bearing
NSK
Japan
CCD Camera
Sony
Japan
Lens
Sony
Japan
Mainboard/software system
SLT
SLT
Cylinder/Solenoid valve
SHAKO
 Taiwan
