Specifications
Coating :
other
Magnification :
0.084xto 0.84x(oom Ratio of 10:1)
largest Compatiole Camera :
1/2"
WD :
150-450mm
Weight :
233g
warranty :
1 Year
Iris :
F5.6-Close
Place of Origin :
Shanghai, China
Filter Size :
M46P=0.75
weight :
other
MOQ :
1
customized support :
OEM, ODM
Model Number :
MSS-L-NMI-10X
Brand Name :
MSS
size :
OTHER
Price :
$310-340
Type :
Digital microscope lens
Description
Product descriptions from the supplier

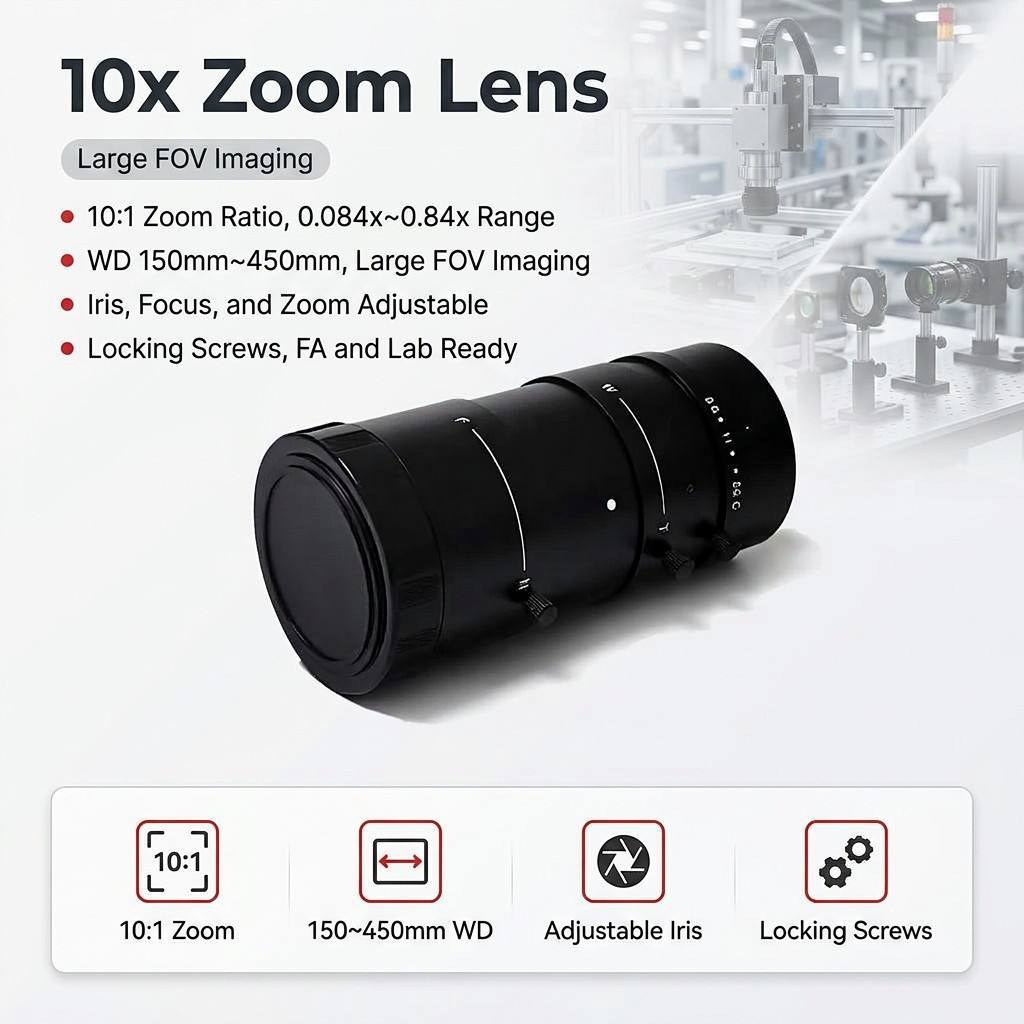

A wide zoom ratio lens developed for large field of view imaging. Zoom ratio of 10: 1 at a working distance of 150mm to 450mm by adjusting the focus. This lens can be used for FA, laboratory work, weak eyesight correction, and environment-related projects. .

Zoom ratio of 10: 1 (Magnification range: 0.084x(min)~0.84x(max)) .

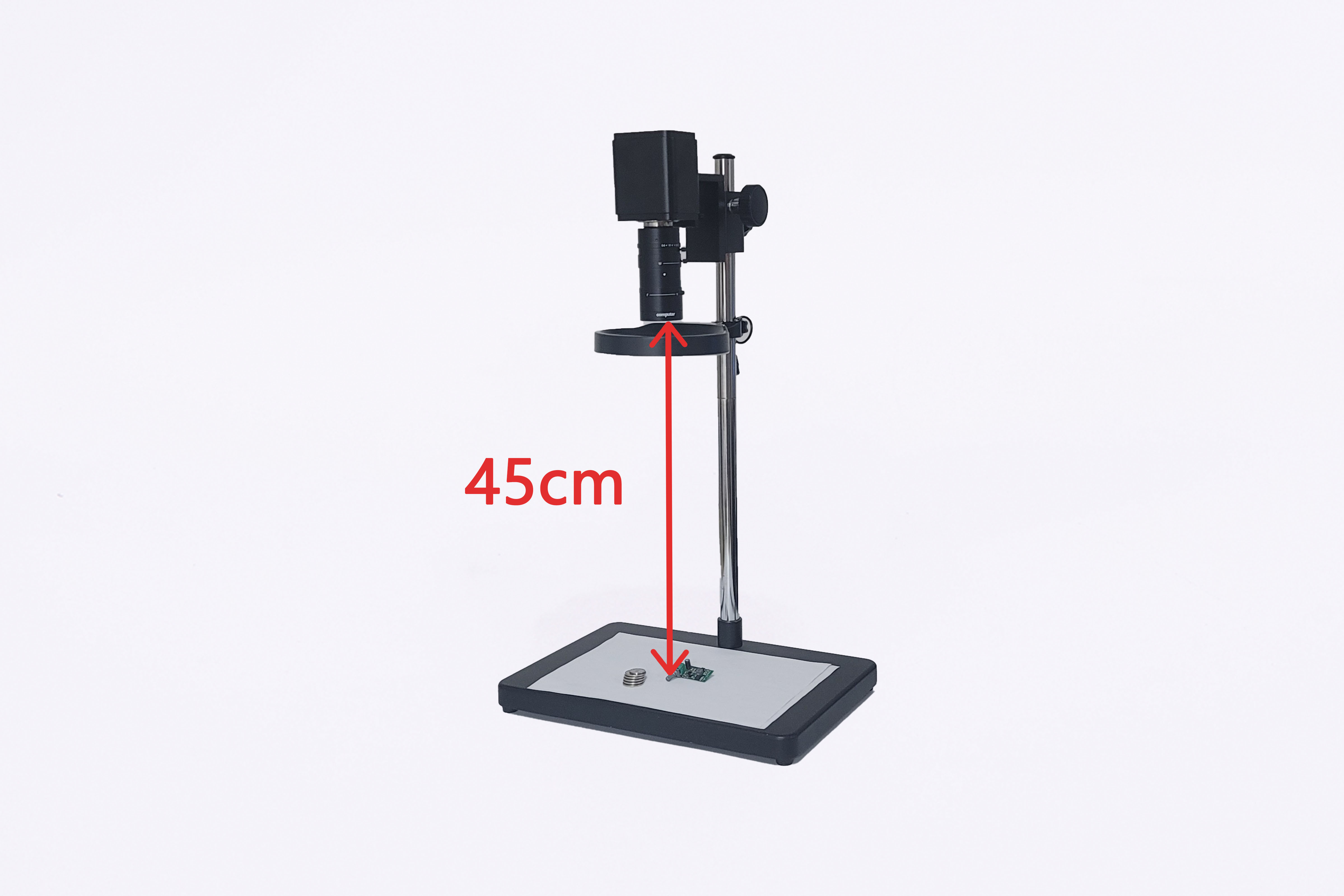

WD=450mm(min)~150mm(max) .

Iris, focus, and zoom are adjustable .

Equipped with locking screws


WD Magnifications Field of View
1/2”
(Length mm×Width mm)		 1/3”
(Length mm×Width mm)
150mm 0.086x～0.84x 55.8×74.4～5.7×7.6 42x56～4.3x5.7
200mm 0.06x～0.58x 80x107～8.3x11 60×80～6.2×8.3
250mm 0.045x～0.44x 107×142～10.9×14.5 80×107～8.2×10.9
300mm 0.037x～0.36x 130×173～13.3x17.8 97×130～10×13.3
350mm 0.031x～0.3x 155×206～16×21.3 116×155～12×16
400mm 0.02x～0.25x 185×246～19.2×25.6 138×185～14.4×19.2
450mm 0.023x～0.22x 209×278～21.8×29.1 157×209～16.4×21.8

Model MLH-10X
Magnification 0.084× to 0.84×(Zoom Ratio of 10:1)
WD 150~450mm
Iris F5.6~Close
Filter Size M46 P=0.75
Weight 233g
largest Compatible Camera 1/2"
