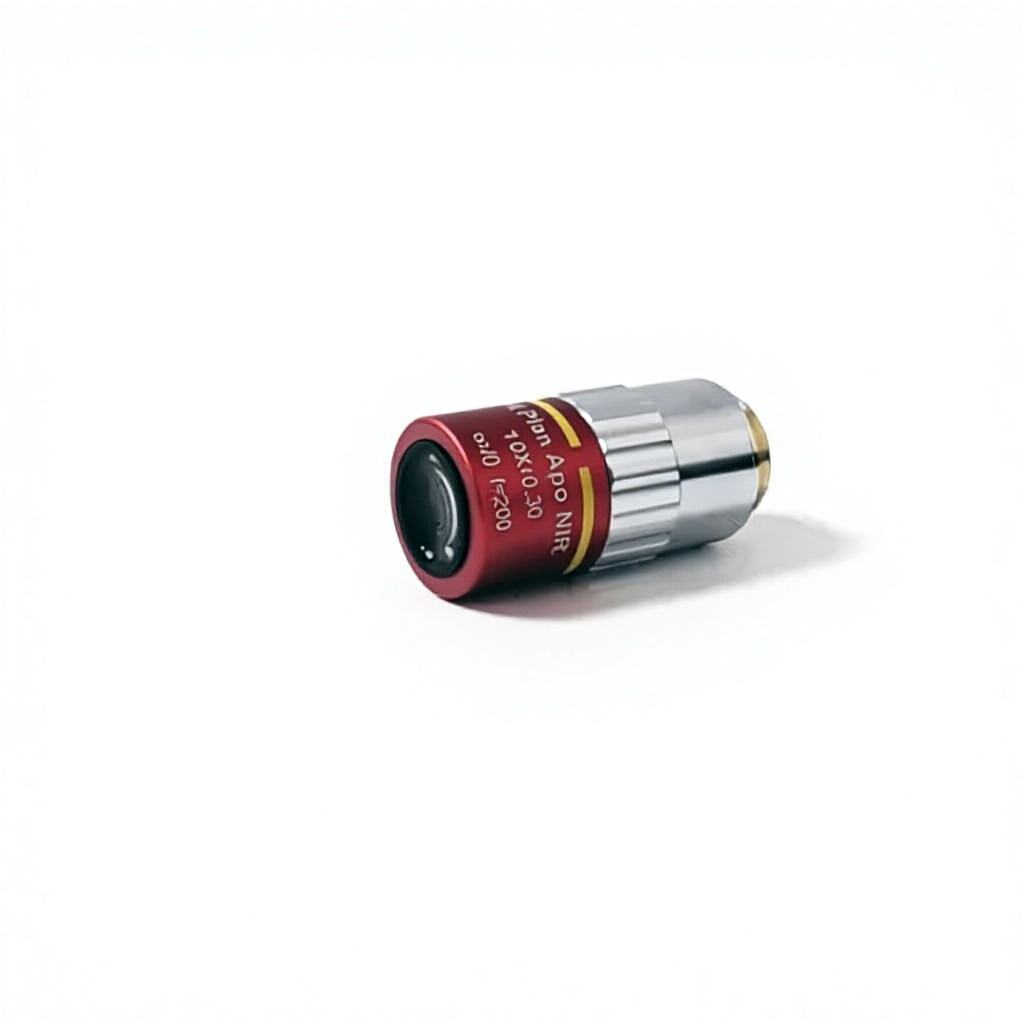

Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X
Specifications
2 :
2
Type :
Near infrared objective lens
weight :
other
Coating :
Other
warranty :
1 Year
5 :
5
customized support :
OEM, ODM
Model Number :
MSS-L-LAPO10X
size :
Other
Place of Origin :
Shanghai, China
6 :
6
3 :
3
Brand Name :
MSS
MOQ :
1
4 :
4
Price :
$400-430
1 :
1
Description
Product descriptions from the supplier

There are other multiples: 2x, 5x, 10x, 20x, 50x, 100x

M Plan Apo is a standard in the microscope optics industry. Apochromatic lenses are designed to correct for red, blue, and yellow light, while ordinary apochromatic lenses only correct for red and blue light, and all lenses are stress free, resulting in better color reproduction. The Plan specification objective lens can compensate for surface distortion, point distortion, and other distortions in the image. The long working distance apochromatic objective lens or APO objective lens has an excellent optical system. This objective lens can provide a flat, monochromatic aberration-free (almost no chromatic aberration) image in the entire field of view. It is suitable for various microscopes and can be used with A series of zoom lenses from MSS are combined into a high-performance zoom lens system, which is ideal for semiconductor product inspection, flow cytometry or other high-efficiency high-magnification applications. Its advanced design provides very high resolution and outstanding contrast. Its resolution can be from 5 microns to 0.34 microns.

Supplier 10X M Plan APO Objective Lens IR Long WD for Semiconductor Inspection NIR Chromatic Correction MSS-L-LAPO10X

M Plan Apo is a standard in the microscope optics industry. Apochromatic lenses are designed to correct for red, blue, and yellow light, while ordinary apochromatic lenses only correct for red and blue light, and all lenses are stress free, resulting in better color reproduction. The Plan specification objective lens can compensate for surface distortion, point distortion, and other distortions in the image.

The long working distance apochromatic objective lens or APO objective lens has an excellent optical system. This objective lens can provide a flat, monochromatic aberration-free (almost no chromatic aberration) image in the entire field of view. It is suitable for various microscopes and can be used with A series of zoom lenses from MSS are combined into a high-performance zoom lens system, which is ideal for semiconductor product inspection, flow cytometry or other high-efficiency high-magnification applications. Its advanced design provides very high resolution and outstanding contrast. Its resolution can be from 5 microns to 0.34 microns.

APO Lens Features

1: Apochromatic optical design;

2: Optional long working distance;

3: Ultra-micro resolution;

4: Parfocal distance 95mm;

5: Infinity optical system, tube lens focal length 200mm;

6: Objective lens thread M26X0.705.


PN TYPE N.A W.D
(mm)		 FL
(mm)		 TL
(mm)		 25OFN
(mm)		 1”CAMERA RES
(μm)		 DOF±△
(μm)		 SCREW Length
(mm)		 Dia.
(mm)
2X BF 0.055 34 100 F=200 12 4.8×6.4 5 91 M26 66.5 34
5X BF 0.15 44.9 40 F=200 4.8 1.92X2.56 2.5 14 M26 55.65 34
10X BF 0.30 33.9 20 F=200 2.4 0.96X1.28 1 3.5 M26 66.6 34
20X BF 0.45 20.1 10 F=200 1.2 0.48X0.64 0.7 1.55 M26 80.45 34
50X BF 0.65 9.4 4 F=200 0.5 0.19X0.26 0.4 0.61 M26 91.1 34
ELWD BF 0.30 30.9 10 F=200 1.2 0.48X0.64 1 3.2 M26 69.65 34
ELWD BF 0.45 20.1 4 F=200 0.5 0.19X0.26 0.7 0.9 M26 80.45 34
100X BF 0.80 6.0 2 F=200 0.24 0.1X0.13 0.4 0.4 M26 94.5 34
