Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27
Specifications
warranty :
1 Year
Imaging :
Primary imaging of the outer wall detection
weight :
other
Detect object diameter(mm) :
5-30
Coating :
other
Paired with FA lens focal length :
16mm
Brand Name :
MSS
Place of Origin :
Shanghai, China
Price :
$1,200-1,250
Support CCD :
2/3''
Working wavelength(nm) :
450-650
Image circle (mm) :
7.07
Lens mount :
C-Mount
Type :
360 ° outer wall detection lens
MOQ :
1
customized support :
OEM, ODM
Model Number :
MSS-L-T27
size :
OTHER
Description
Product descriptions from the supplier

Compared with the traditional multi view layout recognition mode, the 360 exterior wall imaging system has efficient and energy-saving lenses, as well as clear and stable imaging.

Supplier 360° Outer Wall Detection Lens 5mm 45° Side View for Small Component Inspection RGB Color Correction MSS-L-T27

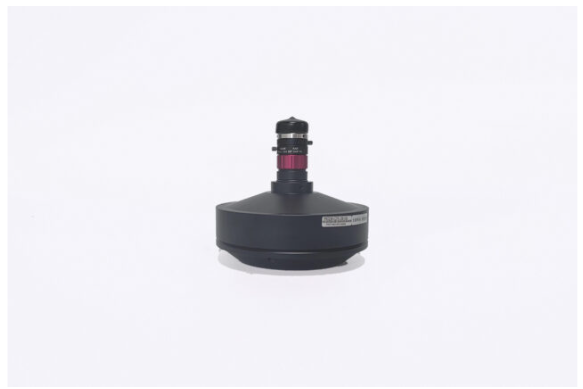

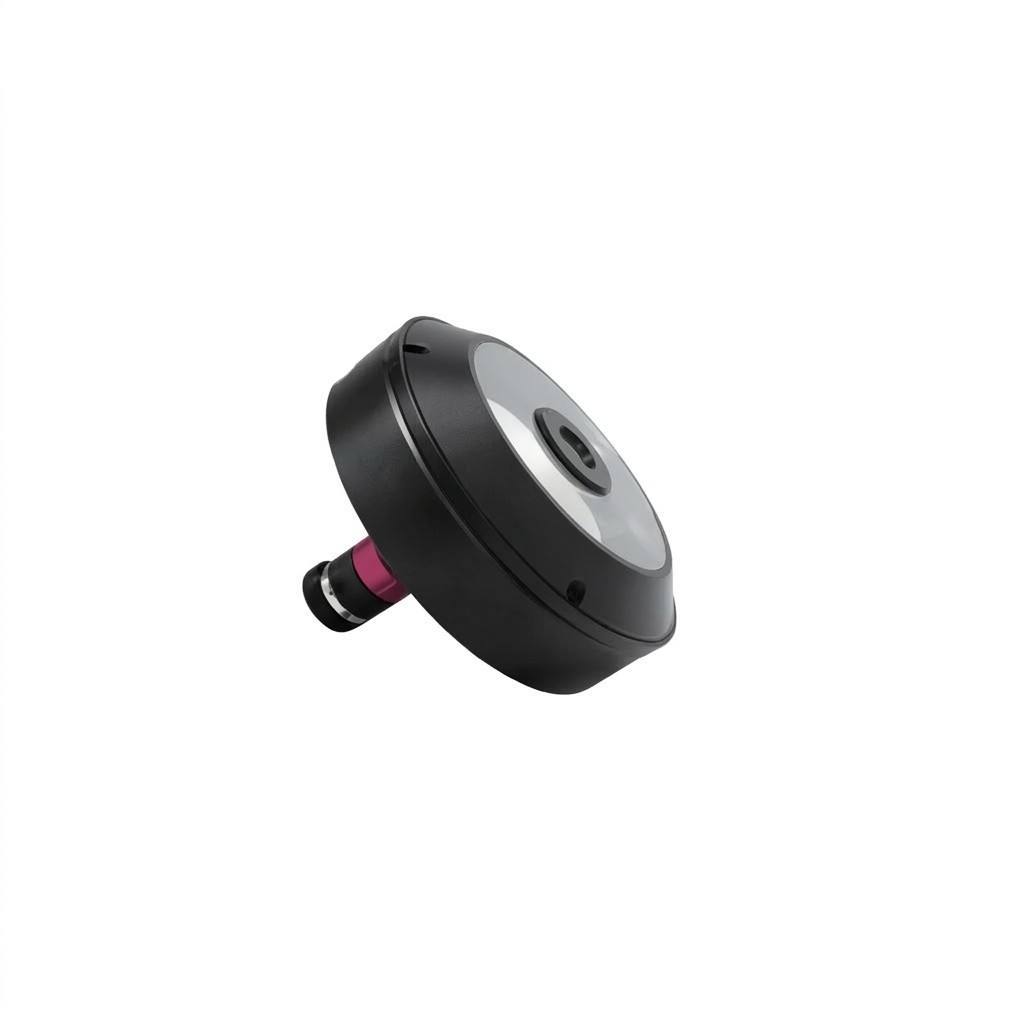

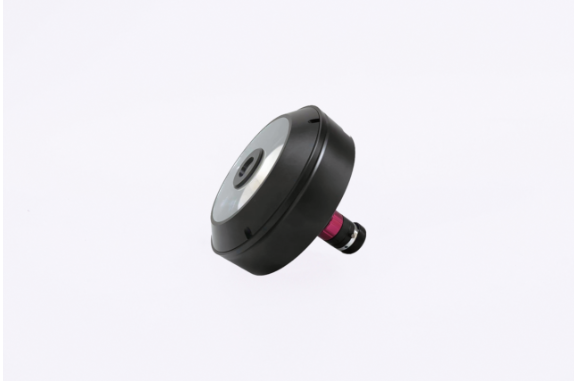

360 ° catadioptric lens MSS-L-T27

Compared with the traditional multi view layout recognition mode, the 360 exterior wall imaging system has efficient and energy-saving lenses, as well as clear and stable imaging.

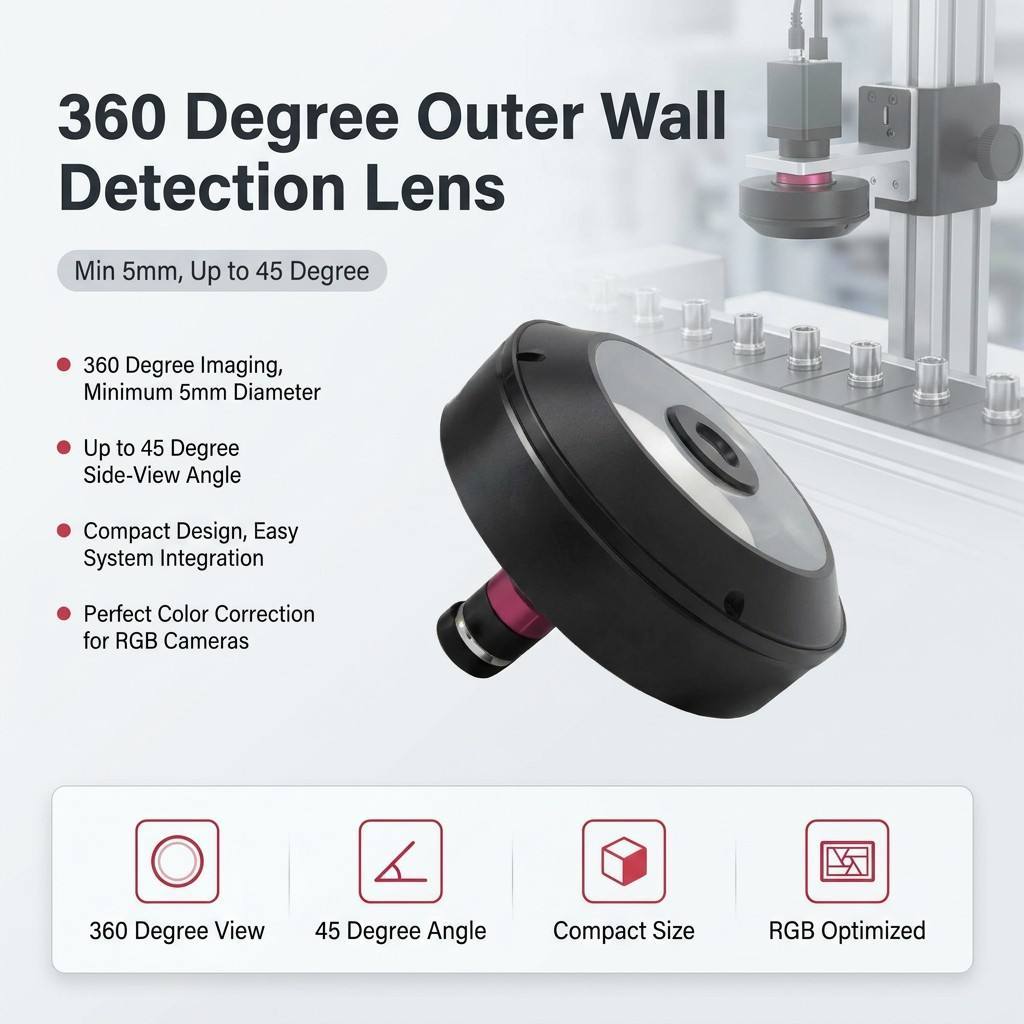

360 ° outer wall detection lens

Model: MSS-L-T27


Product features:

360 ° imaging of small-sized objects, capable of capturing components with diameters as small as 5mm. Ultra wide side shooting angle, with a side view angle of up to 45 ° for shooting objects. Compact and compact, the lens can be easily integrated into any system. Perfect color correction for RGB camera applications and color checks.


Support CCD
Image circle


(φmm)
Imaging
Paired with FA lens


focal length
Lens mount
Working


wavelength(nm)
Detect object diameter(mm)

2/3”
7.07
Primary


imaging of the


outer wall


detection
16mm
C-Mount
450-650
5-30
detection range


Object diameter size(mm) object height(mm) work distance(mm) Is the top and outer walls imaged simultaneously
5 3 41 Outer wall imaging
7 5 39 Simultaneous imaging of outer wall and top
10 6 36 Simultaneous imaging of outer wall and top
15 11 30 Simultaneous imaging of outer wall and top
20 13 24 Simultaneous imaging of outer wall and top
25 18 15 Simultaneous imaging of outer wall and top
30 18 10 Outer wall imaging
