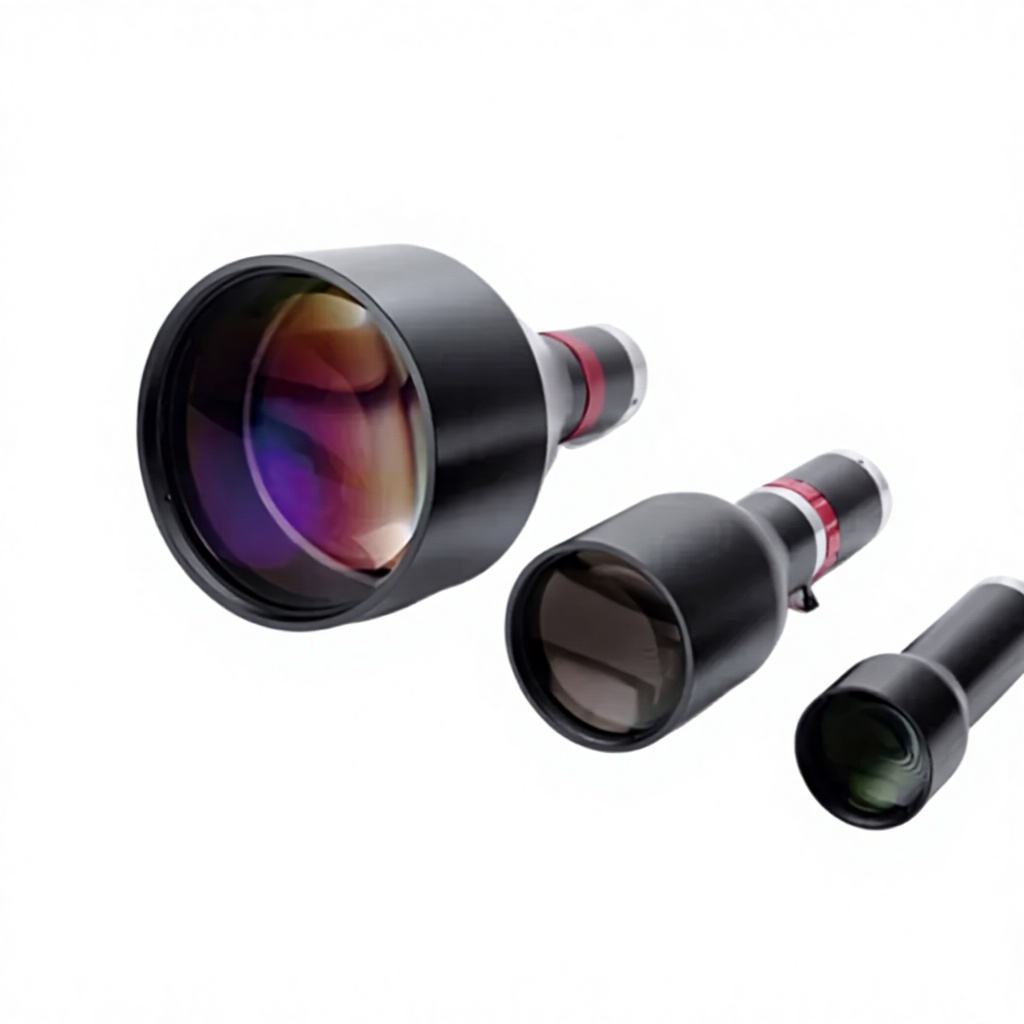

Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33
Specifications
5 :
5
customized support :
OEM, ODM
Price :
$1,400-1,450
6 :
6
size :
OTHER
2 :
2
Model Number :
MSS-L-YX33
Type :
Telecentric Lens
weight :
0.25kg(0.55lb)
Coating :
Anti-Reflective Coating
warranty :
1 Year
3 :
3
MOQ :
1
Brand Name :
MSS
4 :
4
Place of Origin :
Shanghai, China
1 :
1
Description
Product descriptions from the supplier

Image distortion due to field of view is small, greatly improving shape measurement accuracy for parts with depth

Both side telecentric lens with telecentric structure on both object side and image side.

There is no image distortion due to the field of view, and shape measurement accuracy for parts with depth is greatly improved.

Effective when used for more accurate measurements

Supplier Bilateral Telecentric Lens Both-Side for Precision Measurement Low Distortion High Shape Accuracy MSS-L-YX33

Product features:
Up to 35mm full-picture format array camera can be supported.
Large relative aperture, imaging quality very close to diffraction limit, matching high pixel camera.
Optional adjustable light bar provides convenience for balanced use of depth of field and resolution.
FOV(φ mm) 22
Magnification B(x) 0.500
WD(mm) 651
CCD size(φ mm) 11.0(2/3")
Image square F/# 5.0
Image MTF30(p/mm) 160
Object depth of field DoF(mm) +0.8@F5.0
Image square distortion(%max) <0.1
Object telecentricity(°max) <0.1
I/O(mm) 189+1
Camera connector C
Total length of lens (mm) 106.7
Net weight(kg) 0.2
Variable light bar no
Coaxial light or not no
Field of vision(mm x mm) 1/1.8" 14.4x10.8
1/1.7" 15.0x11.2

About this supplier

Shanghai Mengshengsheng International Trade Co., Ltd. specializes in optical products, including industrial microscopes and lenses. The company offers a one-year warranty and rigorous quality control testing. With a focus on precision measurement, it provides telecentric lenses with high shape accuracy and low distortion.
