Specifications
2 :
2
Brand Name :
MSS
Place of Origin :
Shanghai, China
warranty :
1 Year
Magnification :
0. 7X-4. 5X
weight :
Actual shall prevail
WD :
95mm
customized support :
ODM, OEM
interface :
C
MOQ :
1
size :
Other
Price :
RM 708.34-791.68
Model Number :
MSS-L-001
Zoom :
6.5-1
Type :
Digital microscope body
Coating :
Other
1 :
1
Description
Product descriptions from the supplier

Lens are a monocular continuous zooming Lens, using with the high definition colour CCD camera & TV together. Having long working distance, wide field of view; fine definition image. According to the different requirement in different condition, the user can select the supplementary objective: 0.3x,0.5x,0.75x,1.5x,2x and CCD adapter: 0.35x,0.5x,0.75x,1.5x,2x. There are also several kinds of illumination: double illumination(XDS-10C inclined light in halogen bulb, transmitted light in fluorescent),ring fluorescent illumination, or fiber optics light. It also can use with the image data analyzing system. The stand has: pillar(XDS-10A,10B,10C), and universal stand(XDS-10US1).

Supplier Monocular Zoom Lens for Video Microscope HD CCD Long WD Wide FOV Multi Objective Adapter MSS-L-001

Lens are a monocular continuous zooming Lens, using with the high definition colour CCD camera & TV together. Having long working distance, wide field of view; fine definition image. According to the different requirement in different condition, the user can select the supplementary objective: 0.3×,0.5×,0.75×,1.5×,2× and CCD adapter: 0.35×,0.5×,0.75×,1.5×,2×. There are also several kinds of illumination: double illumination(XDS-10C inclined light in halogen bulb, transmitted light in fluorescent),ring fluorescent illumination, or fiber optics light. It also can use with the image data analyzing system. The stand has: pillar(XDS-10A,10B,10C), and universal stand(XDS-10US1).

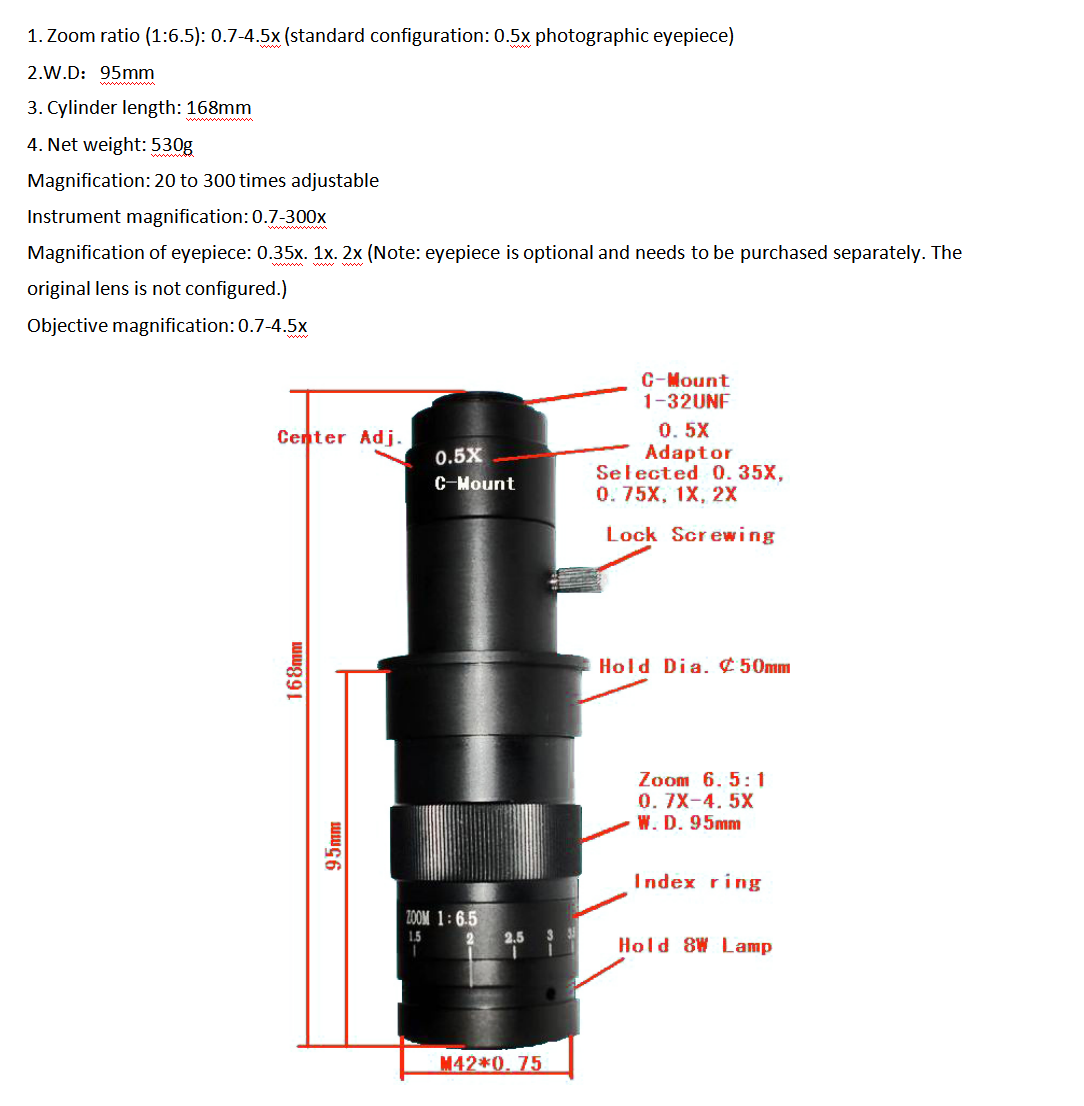

Technical Specifications:

Zoom Range of the Lens Body: 0.7x ~ 4.5x Zoom Rate:6.5:1

Working distance:W.D.95mm, holder diameterΦ50mm,

Standard optional:0.5X CCD Adapter (Lens Body length:L168mm)

Out size: 200*300*150mm

Netweight:0.55Kg/pcs

Grossweight:6.5kg/10pcs

Optional:

CCD Adapter: 0.35X/L143mm,0.75X/L206mm,1X/L246mm,1.5X/L271mm,2X/L295mm

Auxiliary Lenses: 0.3X/W.D.320mm, 0.5X/W.D.180mm, 0.75X/W.D.105mm,

1X/W.D.95mm, 1.5X/W.D.46mm, 2X/W.D.32mm

optical magnification:0.07X-18X FOV: 0.33-81.6mm

Total magnification:4.3X-1065X(1/3"CCD,14"monitor)


Supplementary




lens		 CCD adapter Working



Distance(mm)
0.35× 0.5× 0.75× 1× 1.5× 2×
0.3× 0.07~0.47× 0.11~0.68× 0.16~1.01× 0.21~1.35× 0.32~2.03× 0.42~2.70× 320
0.5× 0.12~0.79× 0.18~1.13× 0.26~1.69× 0.35~2.25× 0.53~3.38× 0.7~4.5× 180
0.75× 0.18~1.18× 0.26~1.69× 0.39~2.53× 0.53~3.38× 0.79~5.06× 1.05~6.75× 105
none 0.25~1.58× 0.35~2.25× 0.53~3.38× 0.70~4.50× 1.05~6.75× 1.40~9.00× 95
1.5× 0.37~2.36× 0.53~3.38× 0.79~5.06× 1.05~6.75× 1.58~10.13× 2.10~13.5× 46
2× 0.49~3.15× 0.70~4.50× 1.05~6.75× 1.40~9.00× 2.10~13.53× 2.80~18.00× 32
CCD




Camera		 Monitor
14” 15” 17” 21 ” 25” 29”
1/3” 59.2× 63.5× 72.0× 88.5× 105.8× 122.8×
1/2” 44.5× 47.6× 54.0× 66.7× 79.4× 92.1×
2/3” 32.3× 34.6× 39.3× 48.5× 57.7× 67.0×
CCD Camera 1/3” 1/2 ” 2/3”
The diagonal size in CCD camera


 recoding face		 6mm 8mm 11mm
