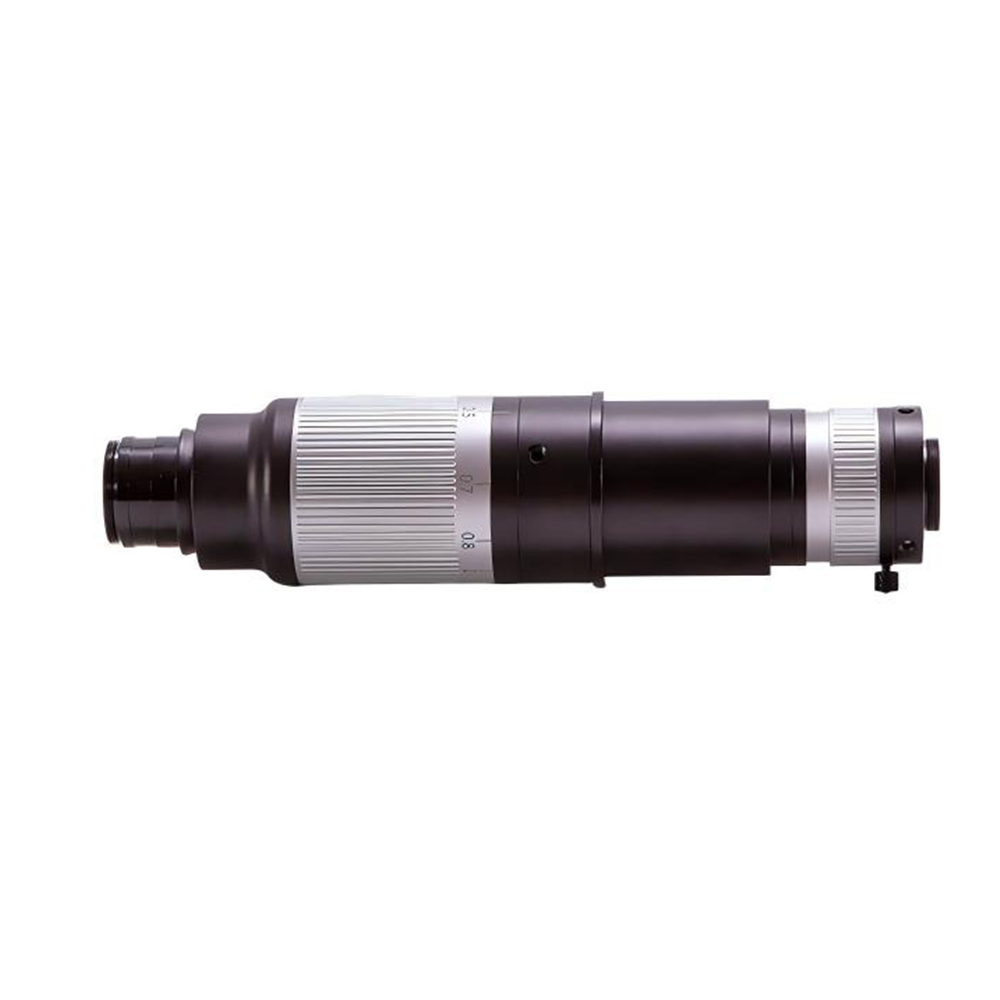

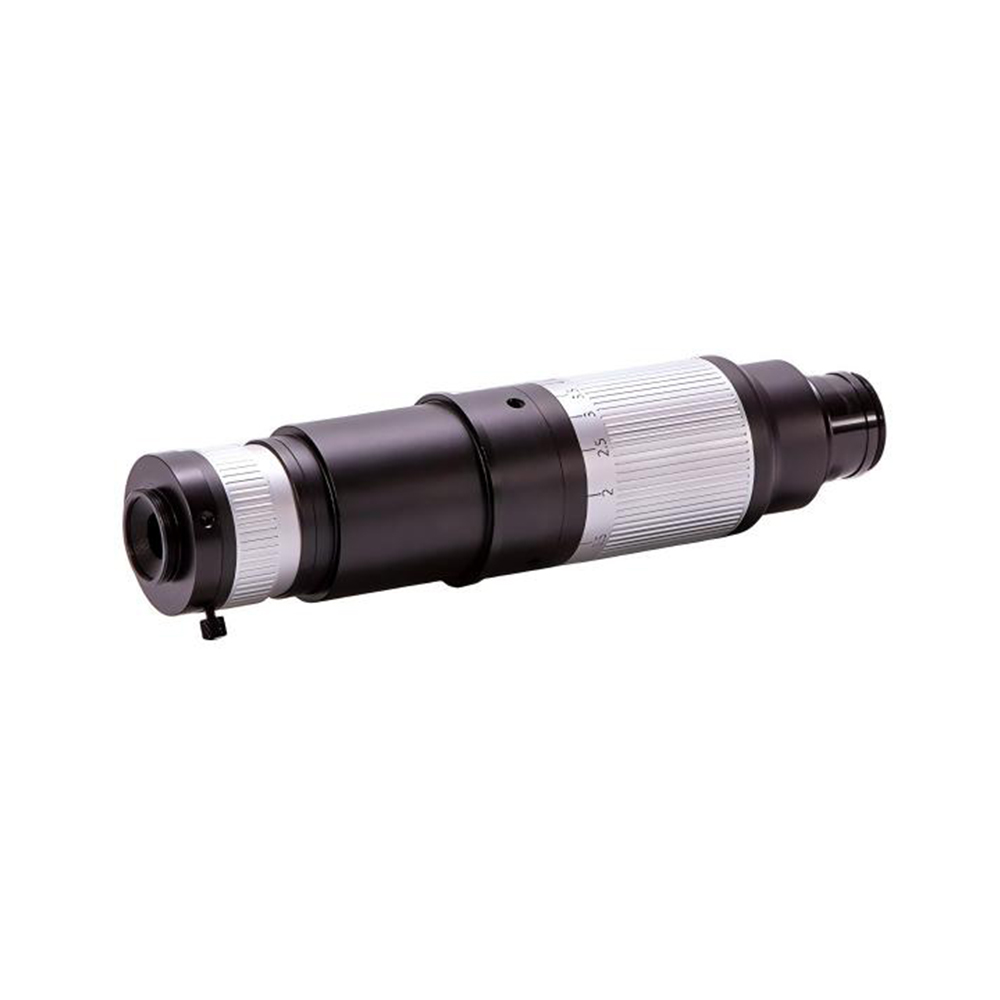

4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330
Specifications
Brand Name :
MSS
MOQ :
1
5 :
5
customized support :
OEM, ODM
6 :
6
size :
other
2 :
2
Type :
4K zoom lens
weight :
other
Place of Origin :
Shanghai, China
Price :
$810-835
Coating :
other
warranty :
1 Year
Model Number :
MSS-L-0330
3 :
3
4 :
4
1 :
1
Description
Product descriptions from the supplier

Color correction optical system, 4K ultra high definition imaging, greatly improves the judgment ability of analysis and automated intelligent calculation

MSS0330 0.3-3.0X main body supports 2/3 inch cameras, MSS0550 0.5-5.0X modified magnification main body and above support 1-inch cameras, which increases the field of view size by more than 1.5X compared to traditional lenses at the same magnification.

Modular design, can be matched with functional components as needed, such as coaxial lighting, debunked objectives, objective converters, etc By utilizing the principle of chromatic aberration correction, images can be perfectly clear under different wavelengths of illumination without the need for refocusing.

Widely used in the detection and research of food, silicon wafers, chips, electronic components, biology and other fields.

4K Zoom Lens 0.3-3.0X Apochromatic for Digital Microscope Food Silicon Wafer Electronics Ultra HD AI Analysis MSS-L-0330

0.3-3.0X Ultra high Resolution 4K Apochromatic Zoom Lens,Apochromatic optical system. Ultra 4K image.1:10 zoom ratio.0.3-3.0X standard zoom body. User can choose different magnification C mount and objective lens

Product features:

1. Apochromatic optical system.Ultra 4K image.Greatly improve the analysis and automated intelligent computing judgment.

2. MSS03300.3-3.0Xzoombody, support max sensor size of camera is 2/3 inch MSS0550 05-5.0Xzoombody Supports 1inchsensor camera.lmprove FOV more 1.5Xthan the traditional zoom lens at the same magnification.

3. Modular design. t can be equipped with functional components such as coaxia lighting, APO objective and objective nosepiece etc.

4. Using the principle of apochromatic system, the image is perfectly clear without refocusing in different wavelength lighting situations.Widely used in food, silicon chips,chips, electronic components,biology and other fields of detection and research.

5. 1:10 zoom ratio.0.3-3.0Xstandard zoom body.User can choose different magnification C mount and objective lens.The expansible multipliers are shown below .

Model Multiple Focal length(mm) Working Distance(mm) Depth of focus(mm) Numerical aperture(mm) Resolution(mm) CCD
MSS0330 0.3X 27 100 5.8 0.023 0.015 2/3”
MSS0330 0.5X 45 100 2.16 0.037 0.009 2/3”
MSS0330 1.0X 90 100 0.63 0.063 0.005 2/3”
MSSO330 2.0X 180 100 0.22 0.09 0.004 2/3”
MSS0330 3.0X 270 100 0.12 0.107 0.003 2/3”
