Specifications
2 :
2
category :
Continuous zoom lens
Angular mirror :
90 ° angle prism
Place of Origin :
Shanghai, China
Optical power :
0.67X-4.5X
interface :
C Type
MOQ :
1
material :
other
work distance :
98±2mm
warranty :
1 Year
Price :
$410-450
Brand Name :
MSS
Sensor Maximum compatibility :
1/1.8''
Accuracy :
other
customized support :
OEM, ODM
1 :
1
Description
Product descriptions from the supplier

Product Introduction

1.Professional optical path design, optical magnification of 0.67X-4.5X, variable magnification ratio of 6.5:1

2.Based on a 1/1.8 "camera, it can achieve large field of view observation

3.Compact structural design, easy to integrate and install

4.Concentricity less than 0.1mm

Product Application

Applied in anime, visual inspection, semiconductor, automation, electronic communication, metal detection and other industries

Equipped with a 90 ° angular mirror


型号model MSS-L-ZJJT01
类别category 连续变倍镜头Continuous zoom lens
光学倍率Optical


power		 0.67X-4.5X
工作距离work

distance		 98±2mm
配 1 x 目 镜
Equipped with 1x
eyepiece		 0.67X 1.0X 1.5X 2.0X 2.5X 3.0X 3.5X 4.0X 4.5X
配0.5x目镜
Equipped with 0.5x

eyepiece		 0.335X 0.5X 0.75X 1.0X 1.25X 1.5X 1.75X 2.0X 2.25X
景深

depth of field		 1.9 0.95 0.44 0.29 0.23 0.16 0.13 0.12 0.1
NA 0.03 0.04 0.045 0.05 0.05 0.055 0.06 0.06 0.065
F.NO. 11.6 12 12.5 14 17.8 17.8 20.5 23.5 26.5
分辨率(μm)

Resolution(μ m)		 11.18 8 5.6 4.8 4.8 3.95 3.95 3.95 3.95
TV畸变 0.019% 0.035% 0.002% 0.003% 0.004% 0.001% 0.002% 0.002% 0.002%
视野大小(1x目
镜)(mm)

Field of view
size(1x
eyepiece)(mm)		 1/2'' 11.94 8 5.33 4 3.2 2.67 2.29 2 1.78
1/3'' 8.95 6 4 3 2.4 2 1.71 1.5 1.33
最大兼容Sensor

Maximum
compatibility with


sensors		 1/1.8''
接口

interface		 C Type

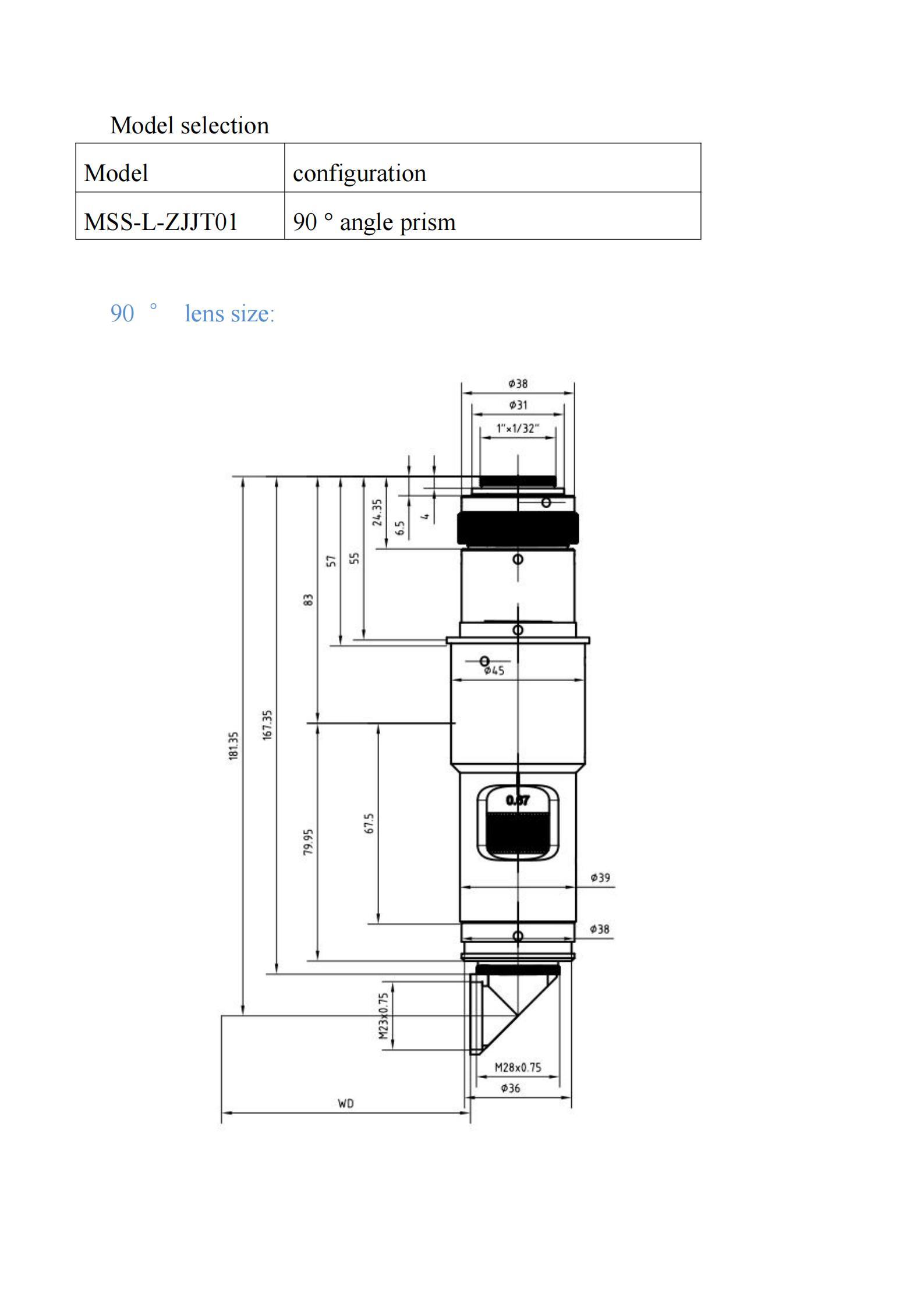

Model configuration MSS-L-ZJJT01 90 ° angle prism

About this supplier

Shanghai Mengshengsheng International Trade Co., Ltd. specializes in optical products, offering industrial microscopes, cameras, lenses, and illumination systems. With a focus on quality, products undergo rigorous testing and 100% finished product quality control. The company provides a one-year warranty and supports OEM/ODM services, ensuring reliable delivery via multiple logistics options.
