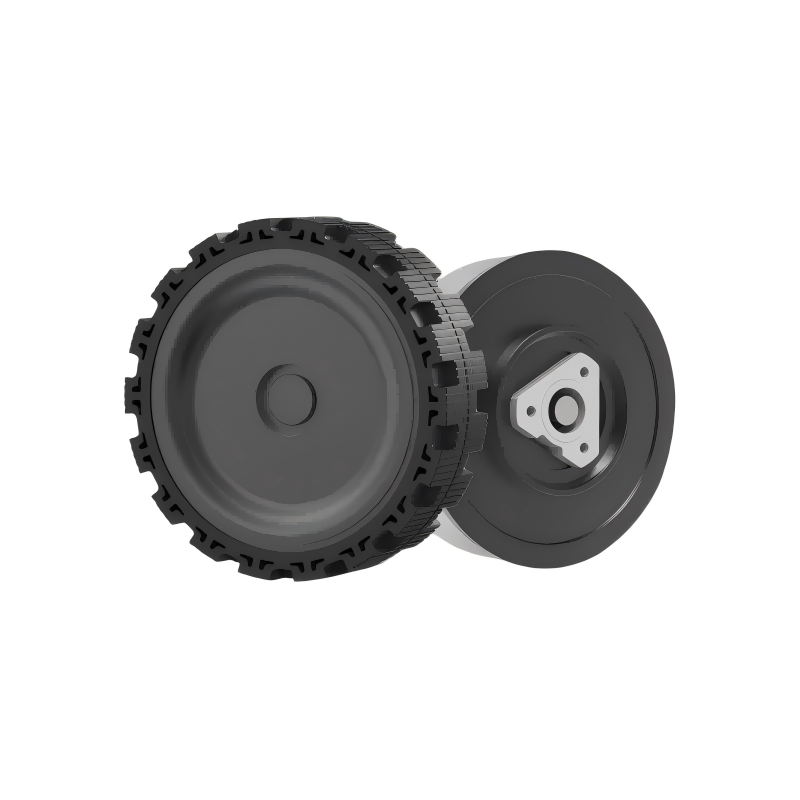

Smart Robotic Vacuum Hub Motor M0603
Smart Robotic Vacuum Hub Motor M0603
Specifications
Rated Speed :
98/100RPM
Brand Name :
SENINTER
Model Number :
M0603
Rated Voltage :
14.4/25.2VDC
Communication Protocol :
RS485
Rated Power :
6/1.5W
Rated Torque :
0.25/0.15N.m
Certification :
CE ROHS
Place of Origin :
CHINA
Description

M0603 Series: Ideal for dual‑drive wheels in robotic vacuums and as drive motors for industrial conveyor systems.

Ultra-low noise, high precision, and zero backlash ensure quiet and accurate operation. The direct-drive system delivers fast response with zero latency. Long service life is achieved thanks to high-quality bearings, while the compact structure allows for a large hollow shaft design. The simple, highly integrated design uses relatively few components, eliminates mechanical friction in the transmission, and achieves a transmission efficiency close to 100%.

 Smart Robotic Vacuum Hub Motor M0603

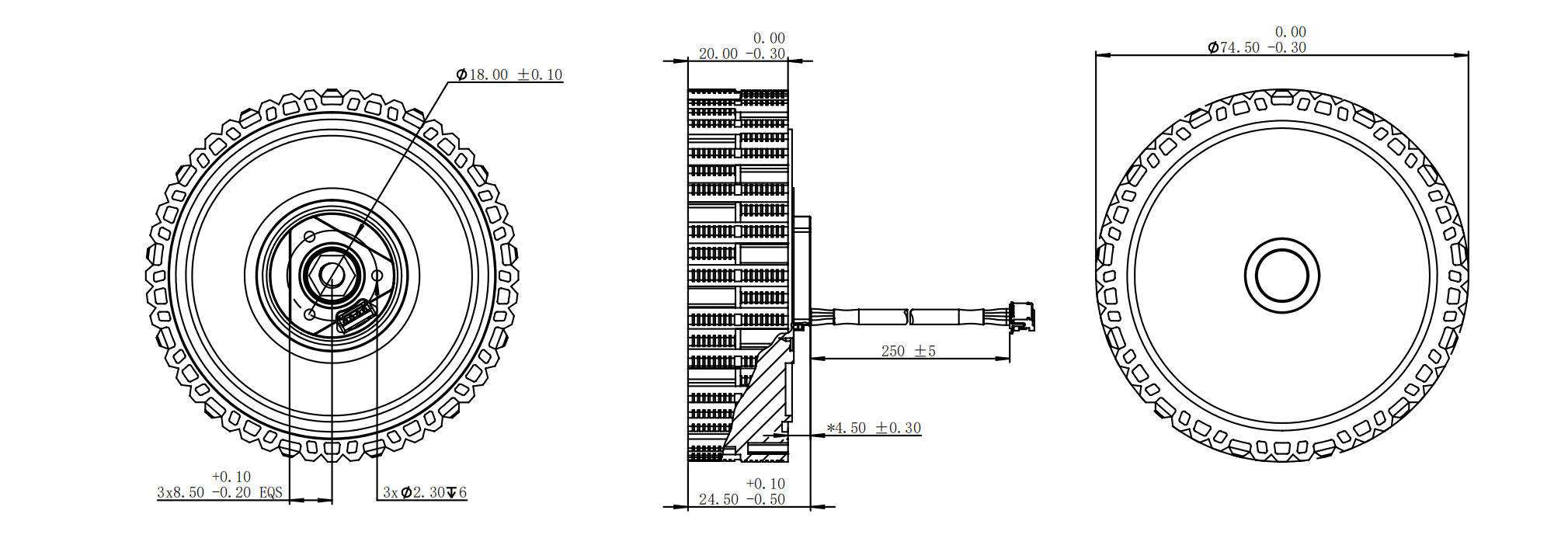

Dimension Drawing

Smart Robotic Vacuum Hub Motor M0603






Joint Module Motor Technical Parameters


Parameter Unit Model A Model B
Overall Dimension mm Φ74.5×20 Φ74.5×20
Rated Voltage VDC 14.4 25.2
Rated Power W 6 1.5
Rated Torque N·m 0.25 0.15
Stall Torque N·m 0.85 0.3
Rated Speed rpm 98 100
No-load Speed rpm 210 400
Rated Current A 0.5 0.24
Stall Current A 3 1
Module Mass g 260 218
Noise Level dB ≤48 ≤45
Encoder Resolution bit 12 12
Communication Protocol — UART UART
IP Rating — IPX4 IP54
Insulation Class — F F
Withstand Voltage VAC/Hz 500/50 500/50
Operating Temp. ℃ -10~40 -10~40
Operating Humidity % ＜85 ＜85
Storage Temp. ℃ -20~65 -20~65
Storage Humidity % ＜85 ＜85

Motor Characteristic Curve

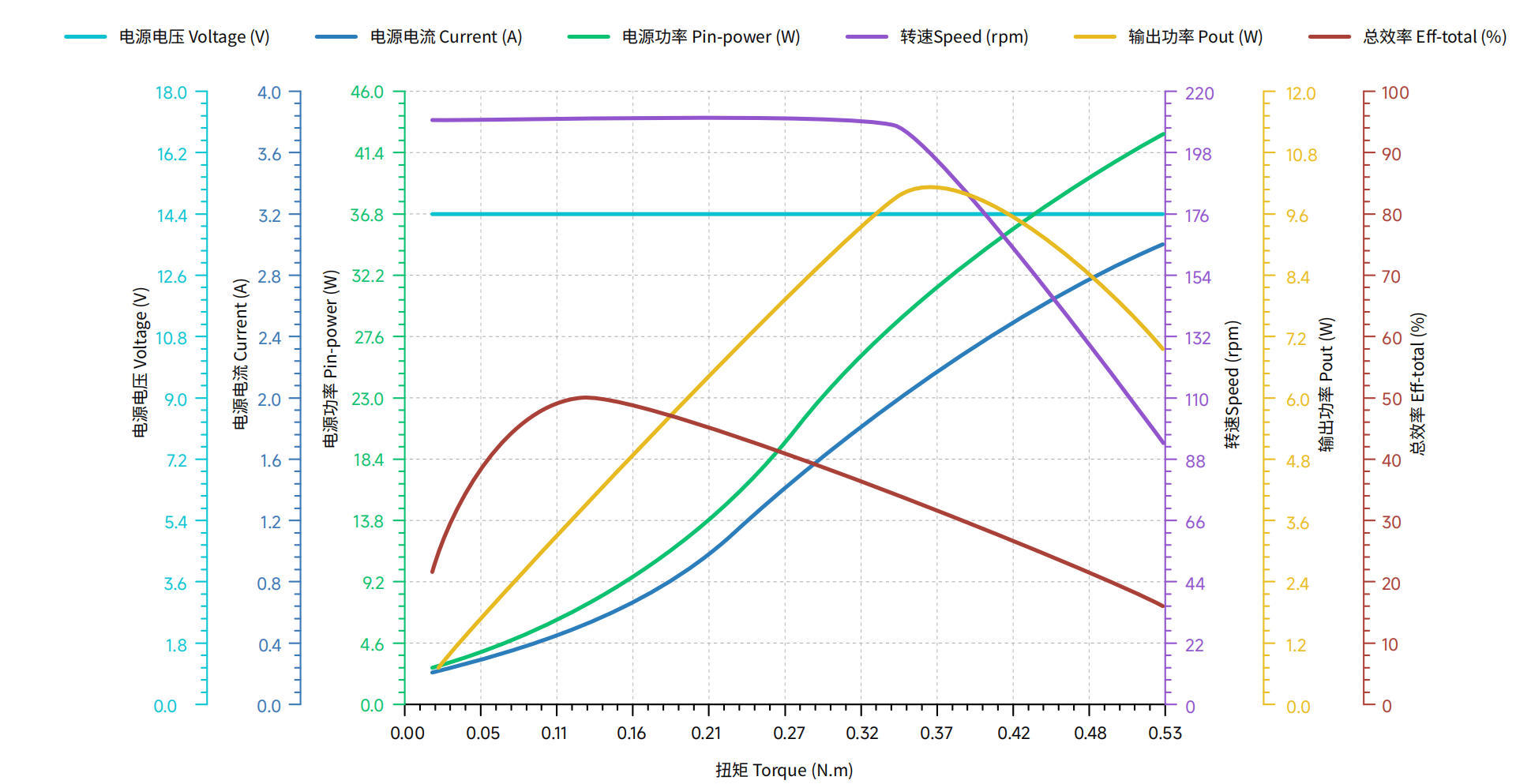

Model A

Smart Robotic Vacuum Hub Motor M0603

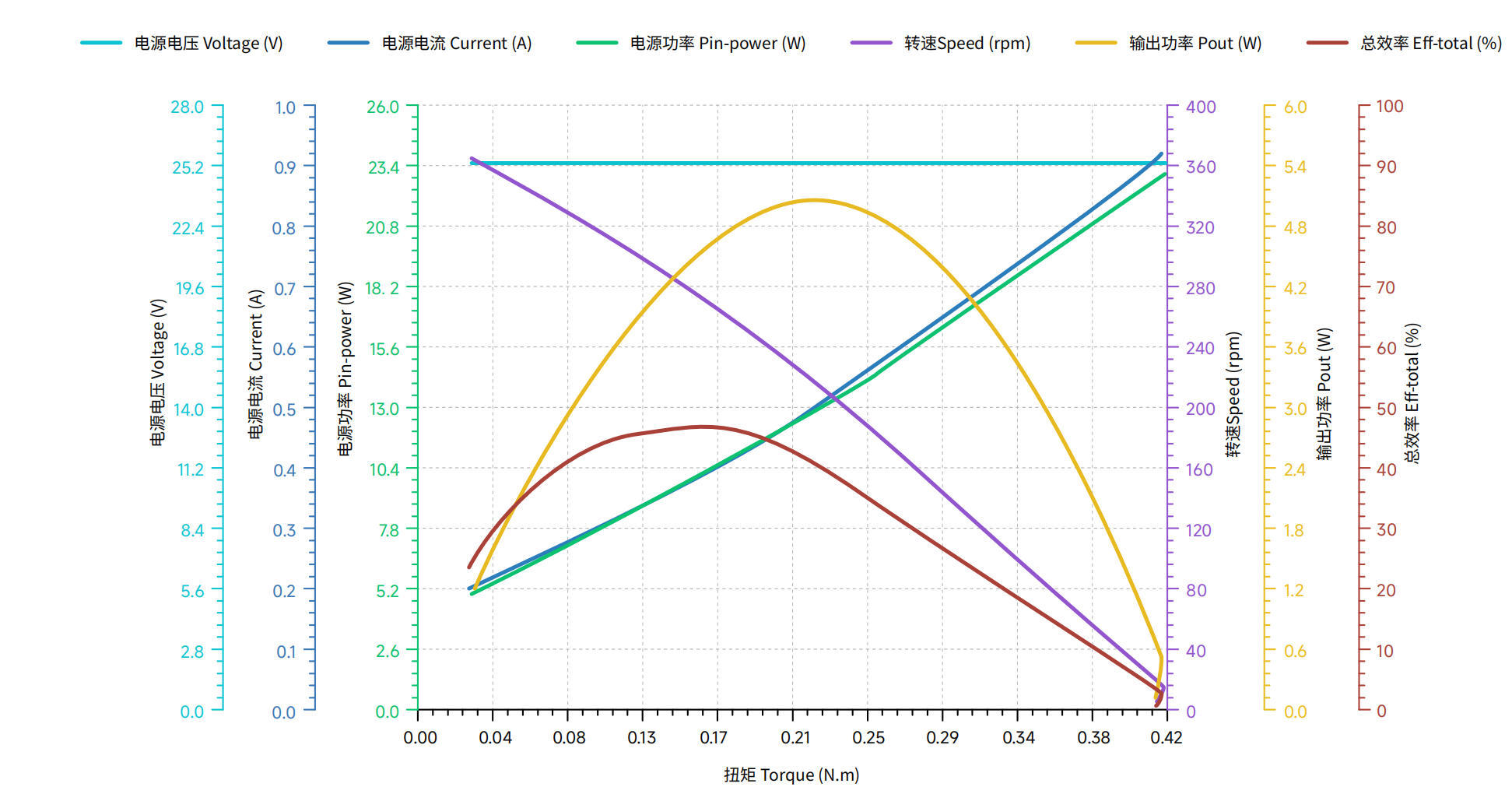

Model B

Smart Robotic Vacuum Hub Motor M0603
