Electric Boat Doors Drive Motor M1502
Electric Boat Doors Drive Motor M1502
Electric Boat Doors Drive Motor M1502
Electric Boat Doors Drive Motor M1502
Electric Boat Doors Drive Motor M1502
Electric Boat Doors Drive Motor M1502
Specifications
IP Rating :
IP55/IP65
Certification :
CE ROHS
Rated Speed :
115/95RPM
Model Number :
M0701
Rated Power :
110W/20W
Communication Protocol :
CAN
Brand Name :
SENINTER
Rated Voltage :
24VDC
Place of Origin :
CHINA
Rated Torque :
9.6/2N.m
Description


M1502 Series – Electric Door Actuator Motors for Yachts, Drive Wheel Motors for Lawn Mowers, and Chassis Motors for Camera Dollies & Mobile Robots

Ultra-low noise, high precision, and zero backlash ensure quiet and accurate operation. The direct-drive system delivers fast response with zero latency. Long service life is achieved thanks to high-quality bearings, while the compact structure allows for a large hollow shaft design. The simple, highly integrated design uses relatively few components, eliminates mechanical friction in the transmission, and achieves a transmission efficiency close to 100%.

Electric Boat Doors Drive Motor M1502

 Electric Boat Doors Drive Motor M1502

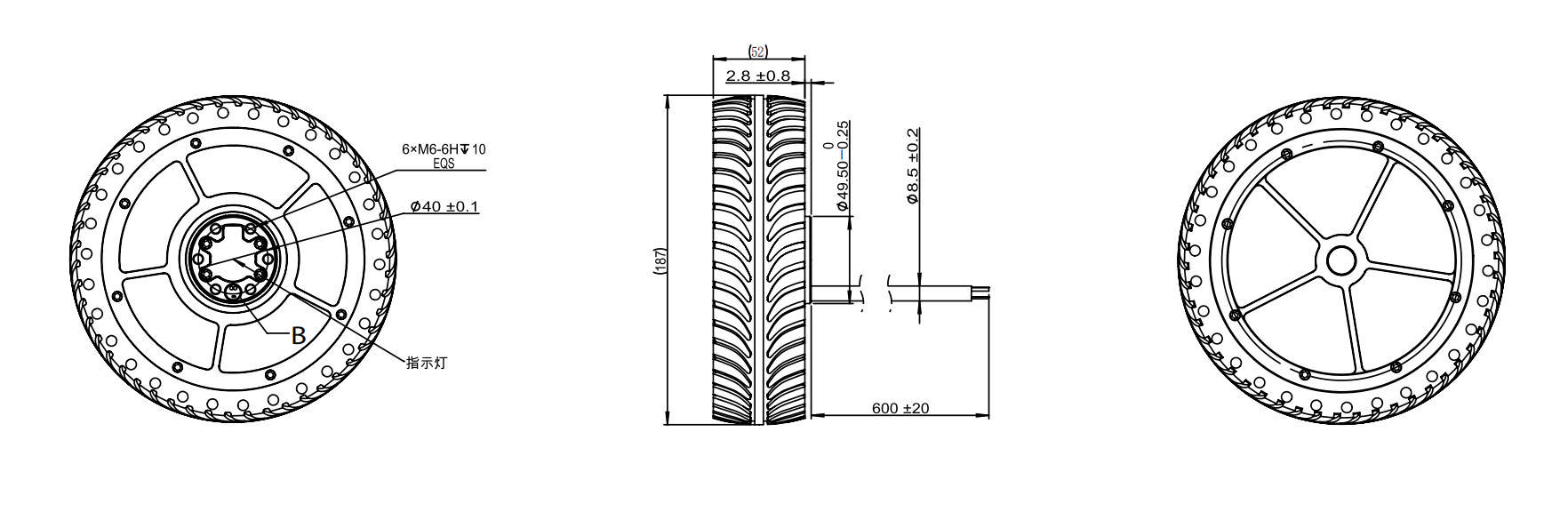

Dimension Drawing(Model 1)

Electric Boat Doors Drive Motor M1502

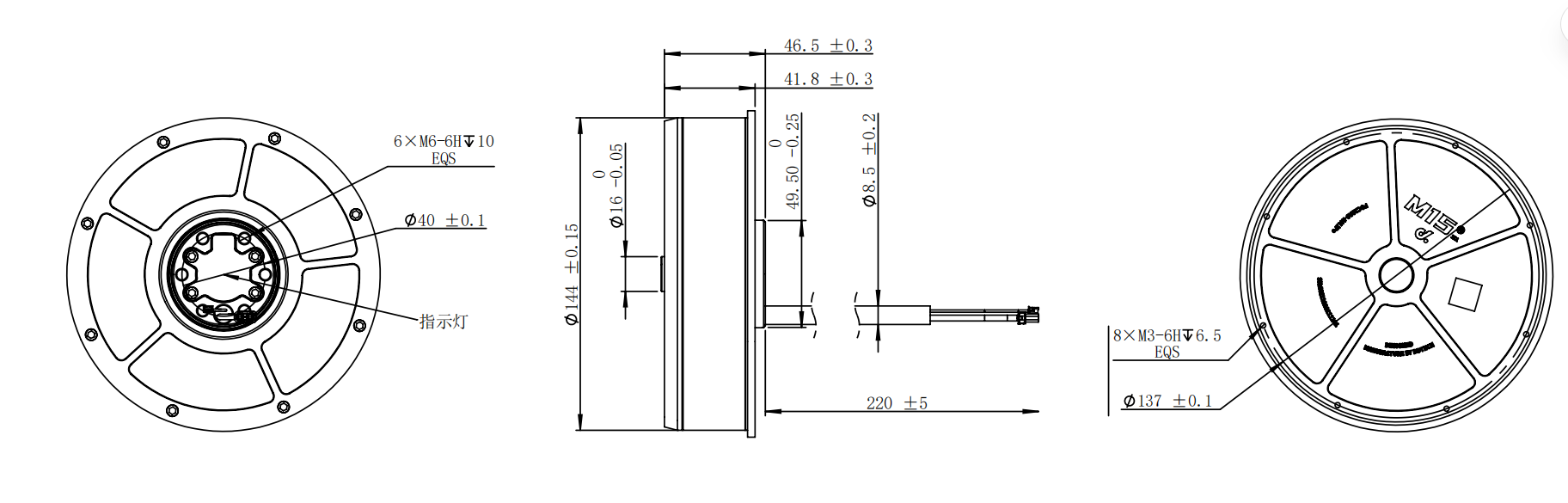

Dimension Drawing(Model 2)

Electric Boat Doors Drive Motor M1502




Motor Technical Parameters

Parameter Unit Model 1 Model 2
Overall Dimension mm Φ187×52 Φ144×41.83
Rated Voltage VDC 24 24
Rated Power W 110 20
Rated Torque N·m 9.6 (S2 Duty Cycle) 2
Stall Torque N·m 17 10
Rated Speed rpm 115 95
No-load Speed rpm 200 210
Rated Current A 11.5 1.5
Stall Current A 21 17
Module Mass g 3000 1860
Noise Level dB ≤52 ≤52
Encoder Resolution bit 14 14
Communication Protocol — CAN Bus CAN Bus
IP Rating — IP55 IP65
Insulation Class — B B
Withstand Voltage VAC/Hz 600/50 600/50
Operating Temp. ℃ -20~45 -20~45
Operating Humidity % ＜85 ＜85
Storage Temp. ℃ -20~65 -20~65
Storage Humidity % ＜85 ＜85

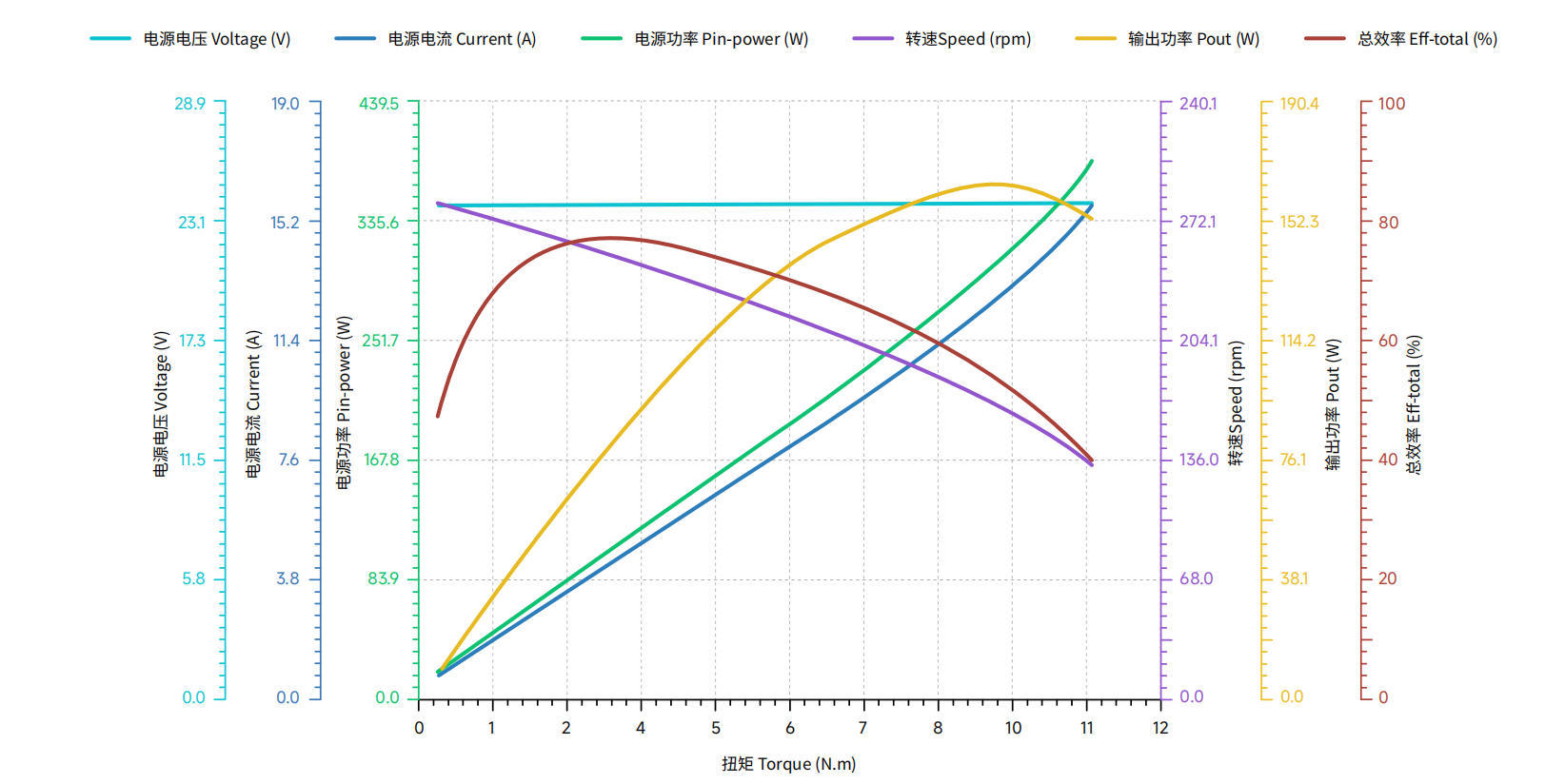

Motor Characteristic Curve(Model 1)


Electric Boat Doors Drive Motor M1502

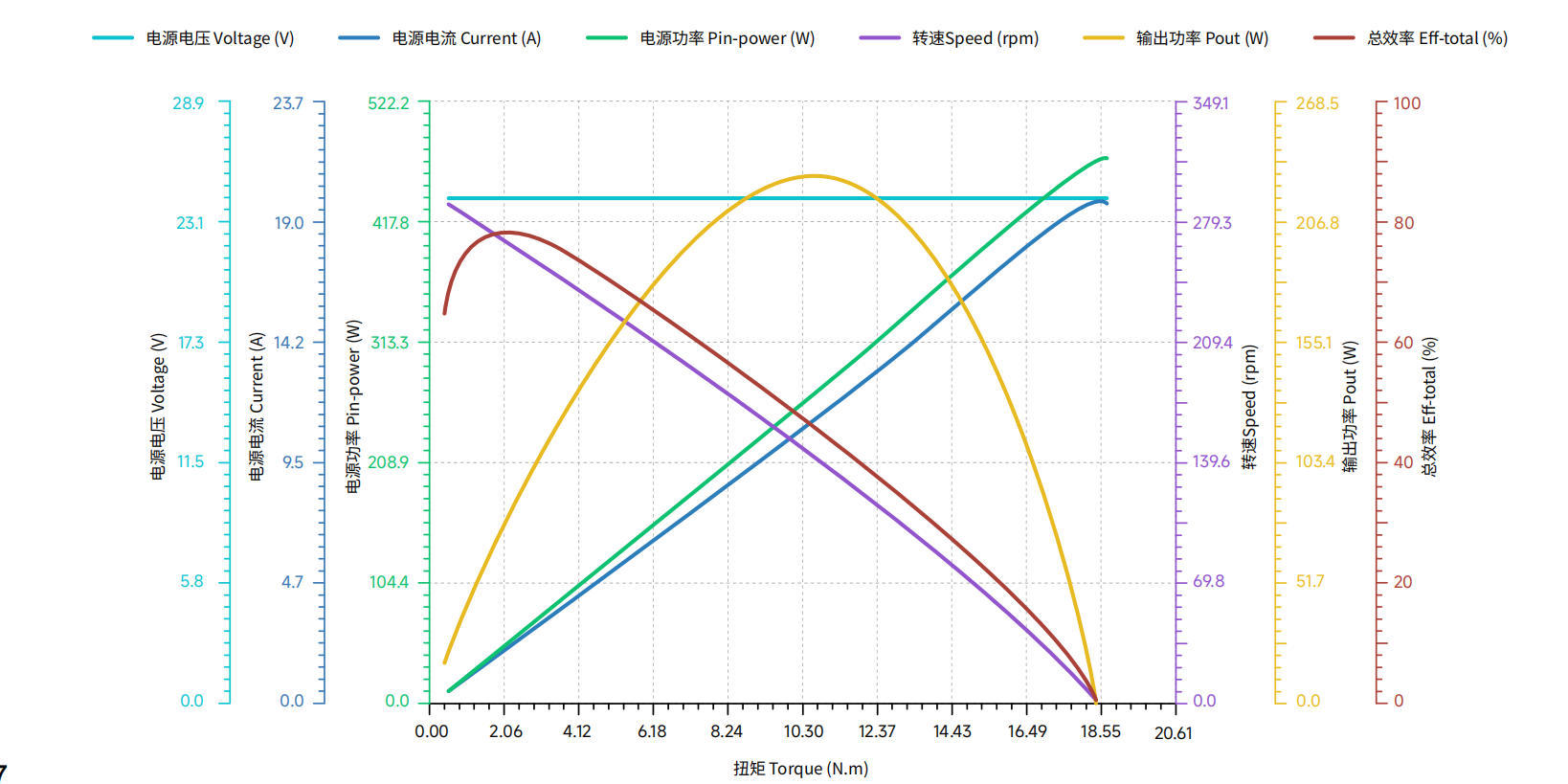

Motor Characteristic Curve(Model 1)

Electric Boat Doors Drive Motor M1502
