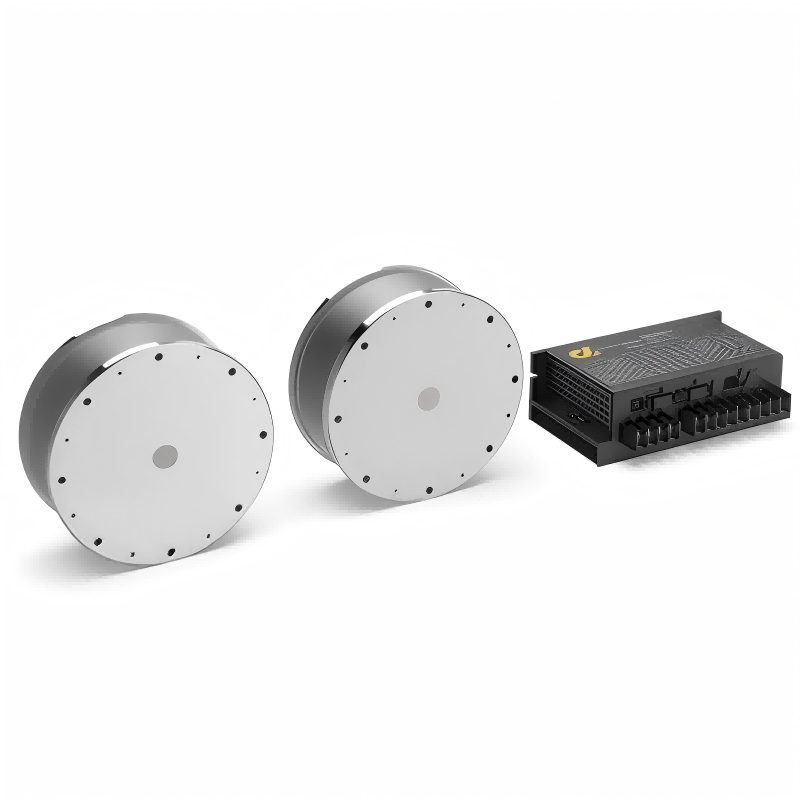

M1503 Series – AGV/AMR Chassis Drive Wheel Motor
M1503 Series – AGV/AMR Chassis Drive Wheel Motor
Specifications
Model Number :
M1503
OD :
155mm
Rated Torque :
10N.m
Rated Voltage :
24VDC
Rated Speed :
115/95RPM
IP Rating :
IP55
Rated Power :
150
Brand Name :
SENINTER
Communication Protocol :
CAN
Certification :
CE ROHS
Place of Origin :
CHINA
Description


M1503 Series – AGV/AMR Chassis Drive Wheel Motor

Ultra-low noise, high precision, and zero backlash ensure quiet and accurate operation. The direct-drive system delivers fast response with zero latency. Long service life is achieved thanks to high-quality bearings, while the compact structure allows for a large hollow shaft design. The simple, highly integrated design uses relatively few components, eliminates mechanical friction in the transmission, and achieves a transmission efficiency close to 100%.

 M1503 Series – AGV/AMR Chassis Drive Wheel Motor

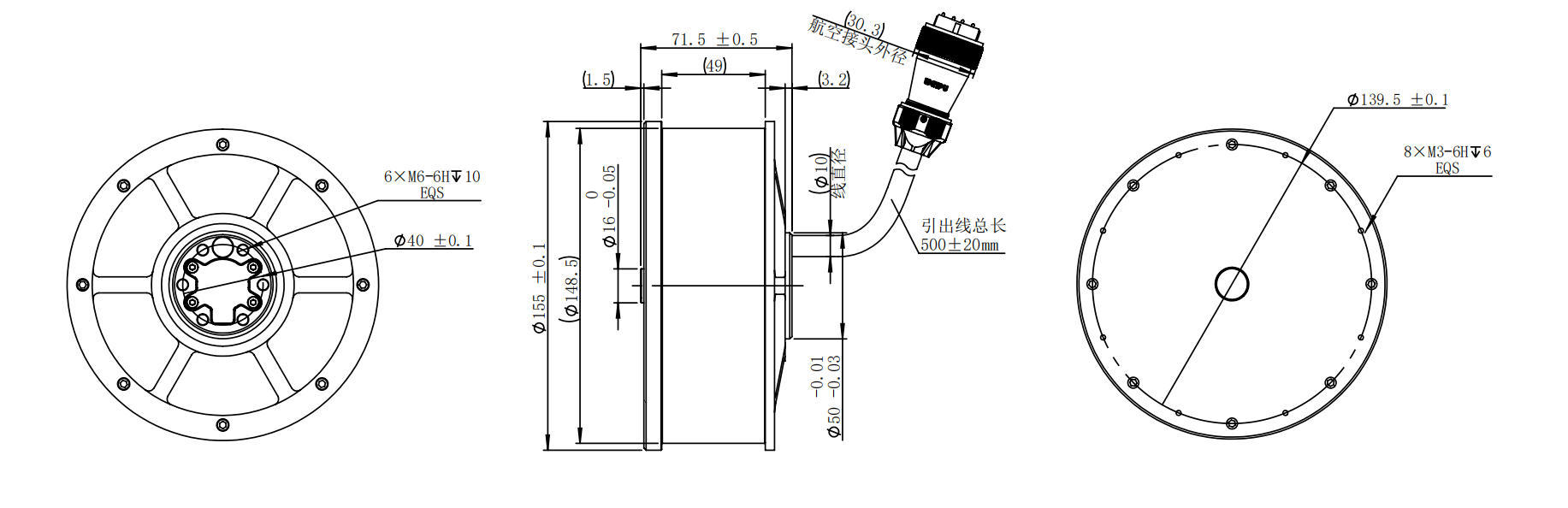

Dimension Drawing(Model 1)

M1503 Series – AGV/AMR Chassis Drive Wheel Motor







Motor Technical Parameters


Parameter Unit Value
Overall Dimension mm Φ155×71.5
Rated Voltage VDC 24
Rated Power W 150
Rated Torque N·m 10
Stall Torque N·m 30
Rated Speed rpm 150
No-load Speed rpm 200
Rated Current A 10
Stall Current A 30
Module Mass g 4400
Noise Level dB ≤50
Encoder Resolution bit 17
Communication Protocol — CAN Bus
IP Rating — IP55
Insulation Class — F
Withstand Voltage VAC/Hz 600/50
Operating Temp. ℃ -20~40
Operating Humidity % ＜85
Storage Temp. ℃ -20~65
Storage Humidity % ＜85

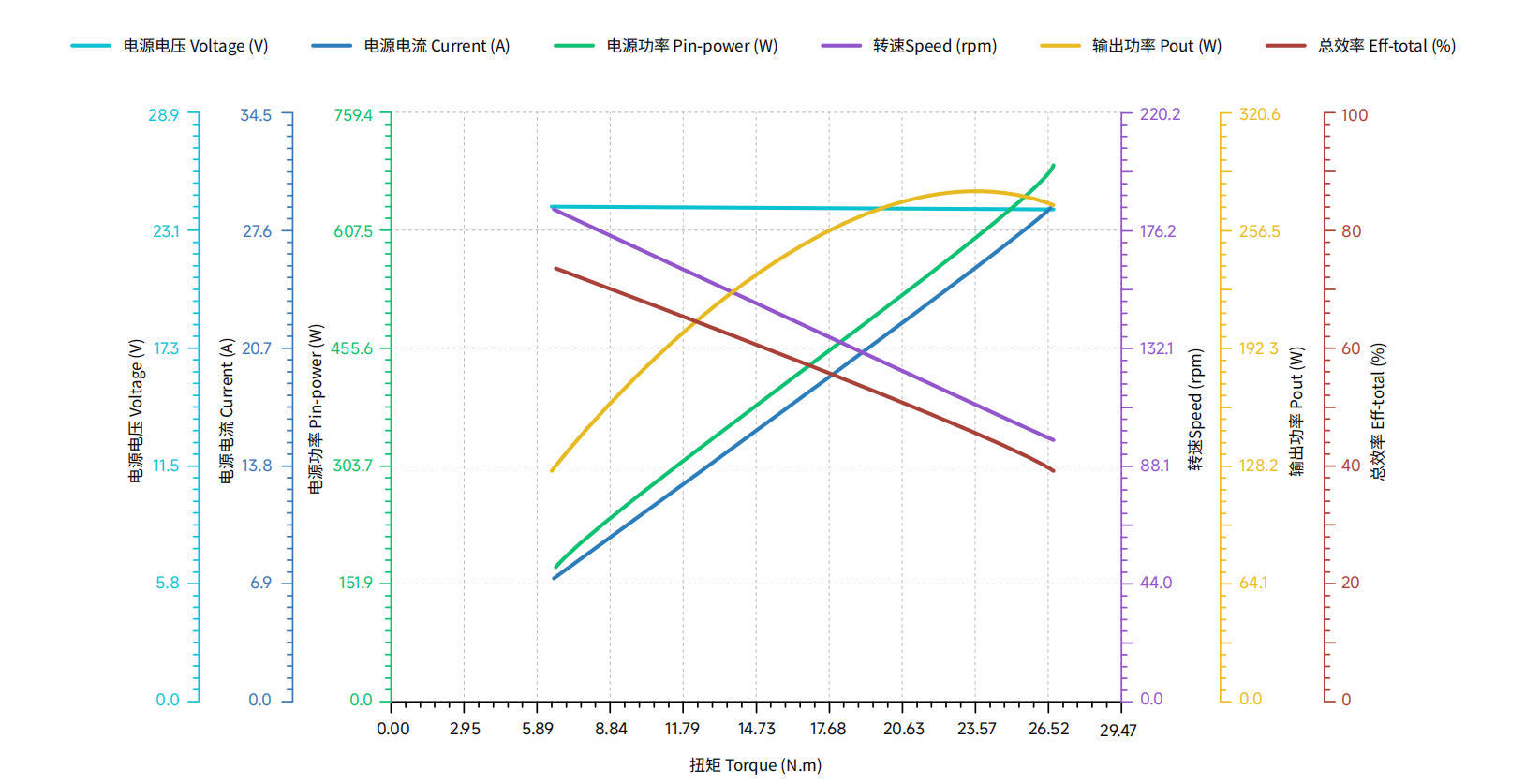

Motor Characteristic Curve
