Smart Air Purifying Robot Hub Motor M0601
Smart Air Purifying Robot Hub Motor M0601
Smart Air Purifying Robot Hub Motor M0601
Smart Air Purifying Robot Hub Motor M0601
Smart Air Purifying Robot Hub Motor M0601
Smart Air Purifying Robot Hub Motor M0601
Specifications
Rated Speed :
115RPM
Brand Name :
SENINTER
Model Number :
M0601
Rated Voltage :
18VDC
Communication Protocol :
RS485
Place of Origin :
CHINA
Rated Power :
10W
Rated Torque :
0.96N.m
Certification :
CE ROHS
Description

Ultra-low noise, high precision, and zero backlash ensure quiet and accurate operation. The direct-drive system delivers fast response with zero latency. Long service life is achieved thanks to high-quality bearings, while the compact structure allows for a large hollow shaft design. The simple, highly integrated design uses relatively few components, eliminates mechanical friction in the transmission, and achieves a transmission efficiency close to 100%.

 Smart Air Purifying Robot Hub Motor M0601

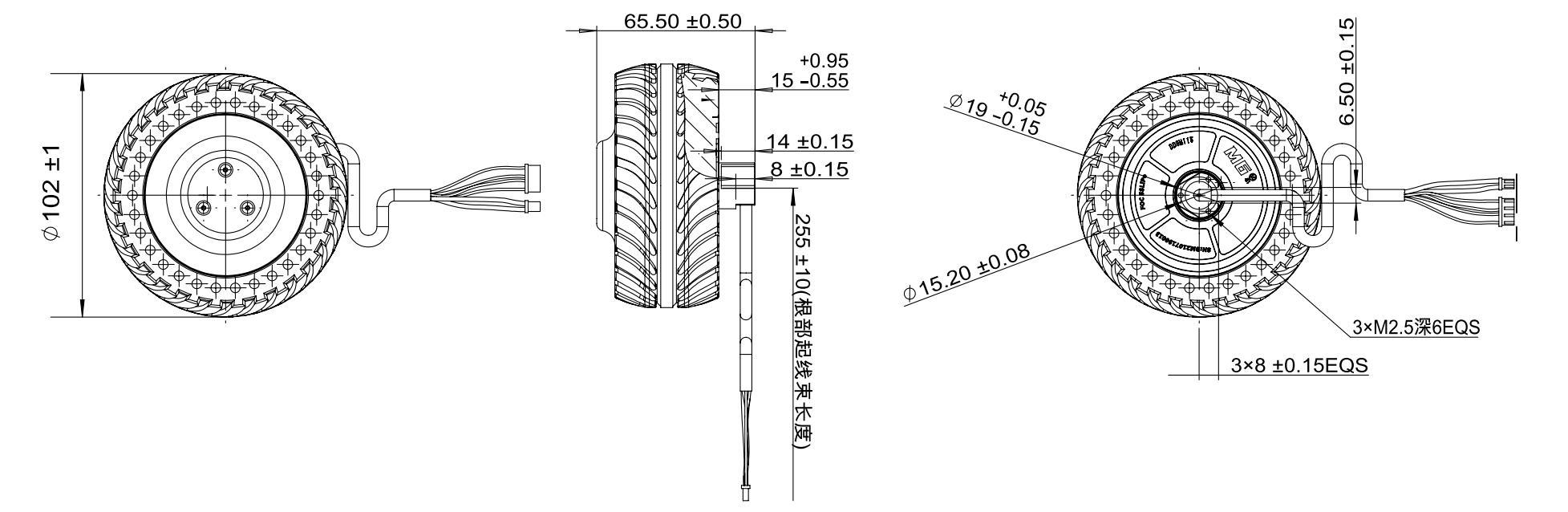

Dimension Drawing

Smart Air Purifying Robot Hub Motor M0601






Joint Module Motor Technical Parameters


Parameter Unit Value Parameter Unit Value
Overall Dimension mm Φ100.7×43 Noise Level dB ≤50
Rated Voltage VDC 18 Encoder Resolution bit 12
Rated Power W 10 Communication Protocol — RS485
Rated Torque N·m 0.96 IP Rating — IP54
Stall Torque N·m 2 Insulation Class — B
Rated Speed rpm 115 Withstand Voltage VAC/Hz 600/50
No-load Speed rpm 200 Operating Temp. ℃ -20~45
Rated Current A 1.25 Operating Humidity % ＜85
Stall Current A 2.7 Storage Temp. ℃ -20~65
Module Mass g 745 Storage Humidity % ＜85

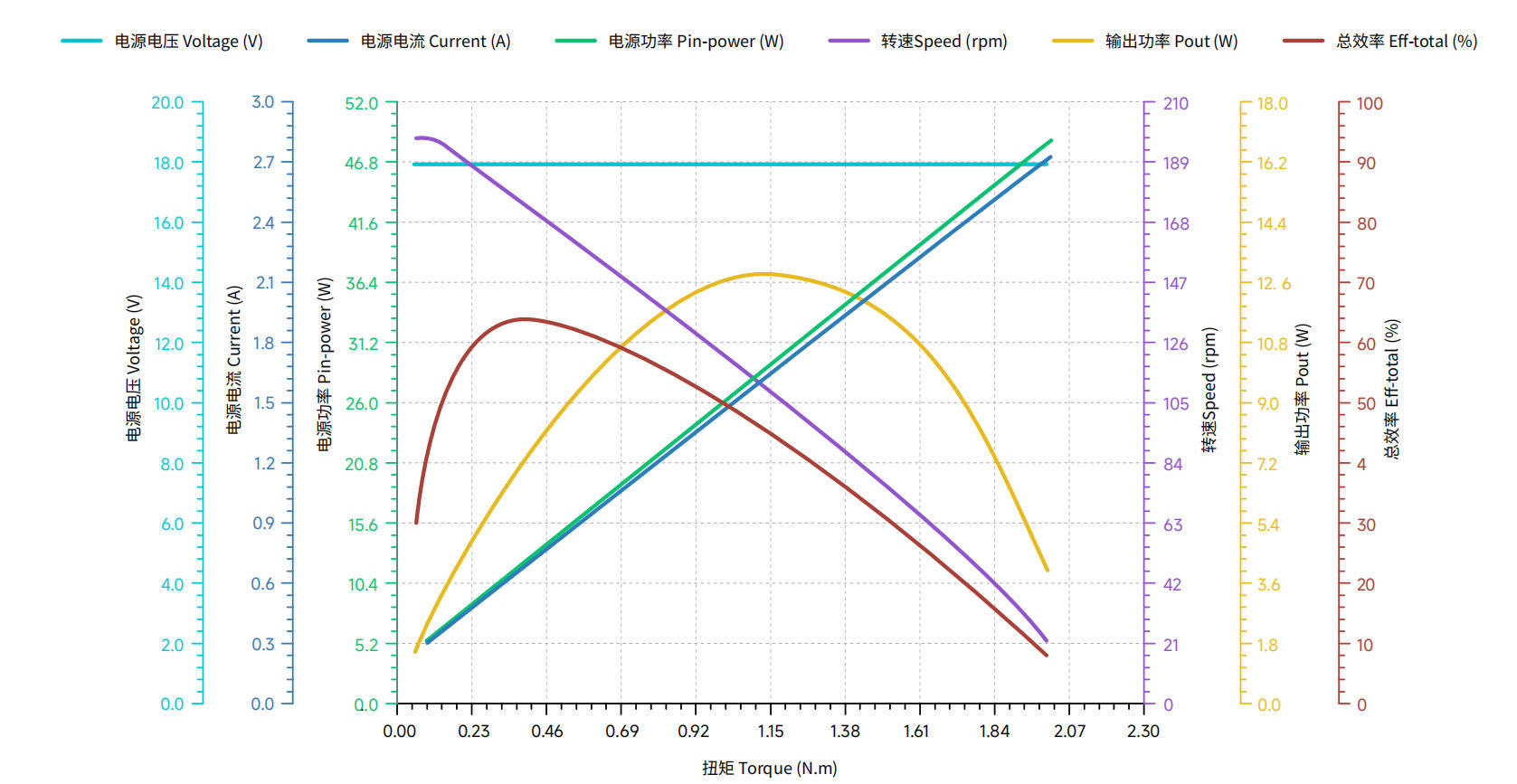

Motor Characteristic Curve


Smart Air Purifying Robot Hub Motor M0601
