M1505 Series – AGV/AMR Chassis Drive Wheel Motor
M1505 Series – AGV/AMR Chassis Drive Wheel Motor
Specifications
Model Number :
M1505
OD :
180mm
Rated Torque :
7.5/9.5N.m
Rated Power :
55-120W
Brand Name :
SENINTER
Communication Protocol :
CAN
Rated Voltage :
24VDC
Rated Speed :
115/95RPM
IP Rating :
IP65
Certification :
CE ROHS
Place of Origin :
CHINA
Description

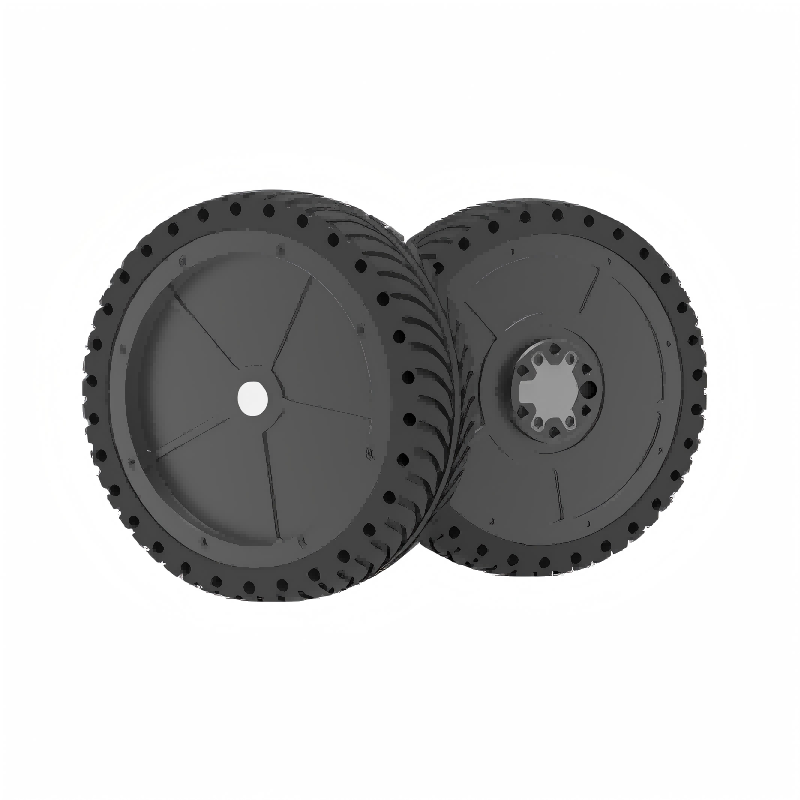

M1505Series – AGV/AMR Chassis Drive Wheel Motor

Ultra-low noise, high precision, and zero backlash ensure quiet and accurate operation. The direct-drive system delivers fast response with zero latency. Long service life is achieved thanks to high-quality bearings, while the compact structure allows for a large hollow shaft design. The simple, highly integrated design uses relatively few components, eliminates mechanical friction in the transmission, and achieves a transmission efficiency close to 100%.

 M1505 Series – AGV/AMR Chassis Drive Wheel Motor

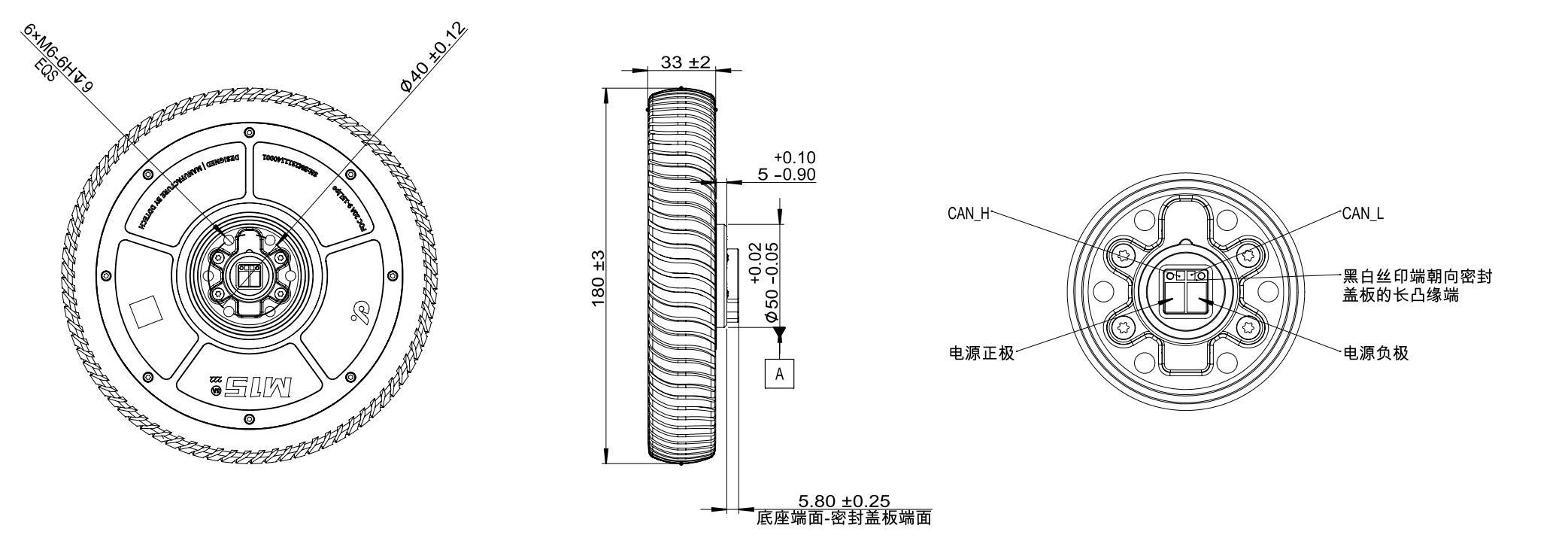

Dimension Drawing(Model 1)

M1505 Series – AGV/AMR Chassis Drive Wheel Motor







Motor Technical Parameters

Parameter Unit Model 1 Model 2
Overall Dimension mm Φ180.3×33.2 Φ180.3×33.2
Rated Voltage VDC 24 24
Rated Power W 55 120
Rated Torque N·m 3 3
Stall Torque N·m 7.5 9.5
Rated Speed rpm 175 360
No-load Speed rpm 250 510
Rated Current A 4.2 7.5
Stall Current A 12 30
Module Mass kg 1.54 1.54
Noise Level dB ≤65 ≤65
Encoder Resolution bit 15 15
Communication Protocol — CAN Bus CAN Bus
IP Rating — IP65 IP65
Insulation Class — F F
Withstand Voltage VAC/Hz 500/50 500/50
Operating Temp. ℃ -20~50 -20~50
Operating Humidity % ＜85 ＜85
Storage Temp. ℃ -20~60 -20~60
Storage Humidity % ＜85 ＜85

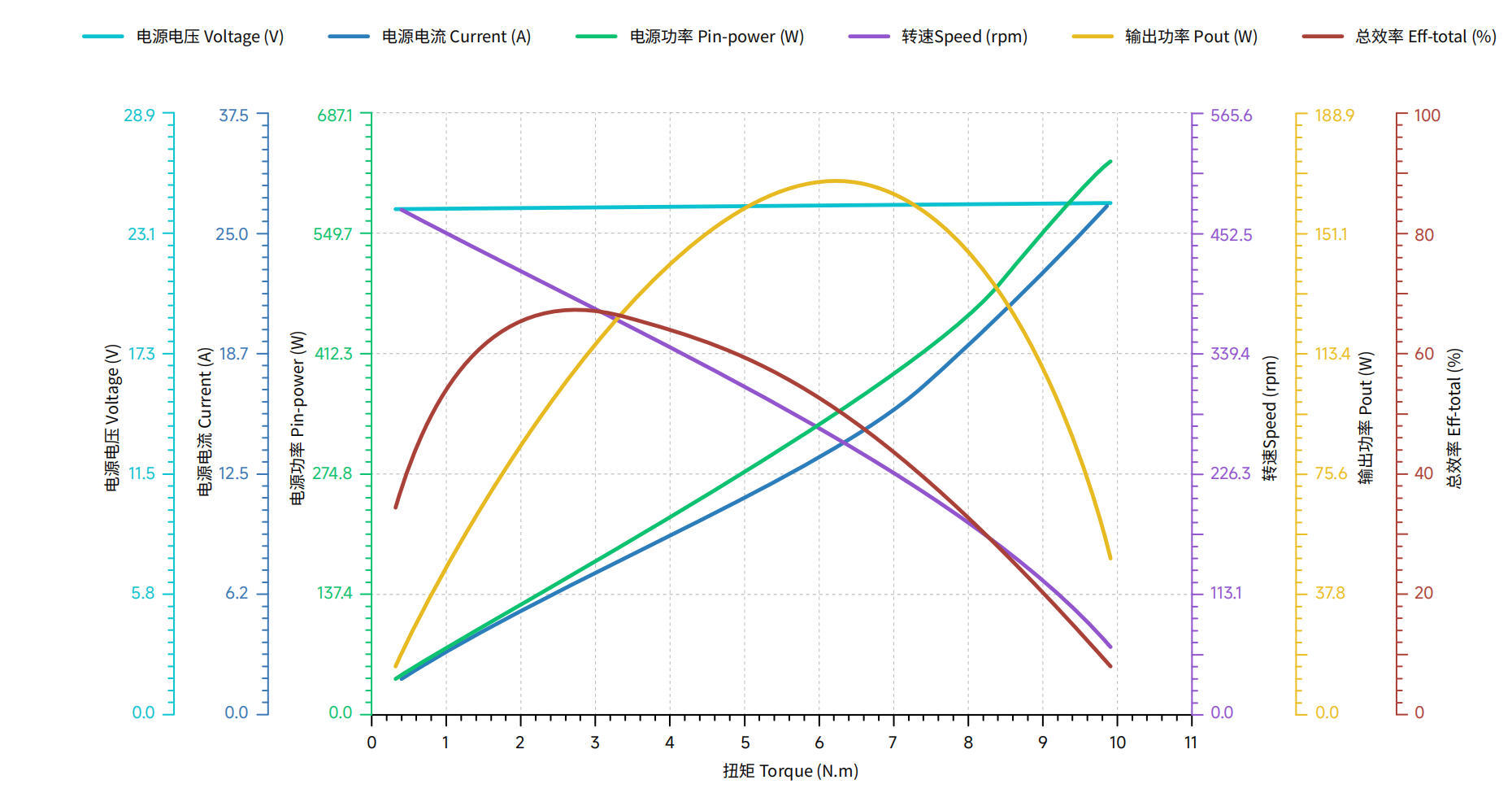

Motor Characteristic Curve (Model 1)


M1505 Series – AGV/AMR Chassis Drive Wheel Motor

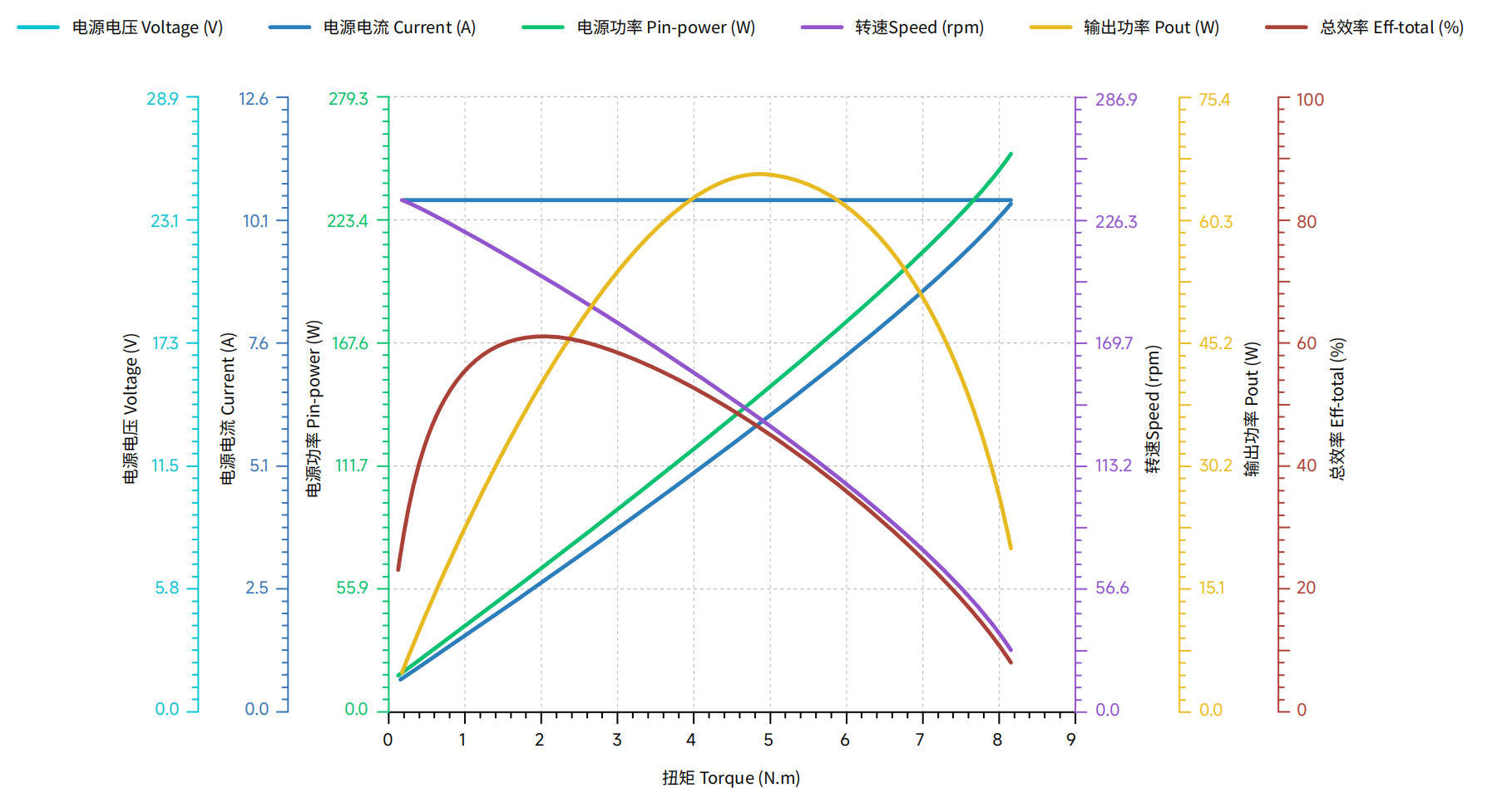

Motor Characteristic Curve (Model 2)


M1505 Series – AGV/AMR Chassis Drive Wheel Motor
