Industrial Robot Vacuum Two-Wheel Drive Motor M0701
Industrial Robot Vacuum Two-Wheel Drive Motor M0701
Specifications
Rated Speed :
200RPM
Brand Name :
SENINTER
Model Number :
M0701
Rated Voltage :
24VDC
Communication Protocol :
RS485
Rated Power :
25W
Rated Torque :
1.2N.m
Place of Origin :
CHINA
Certification :
CE ROHS
Description

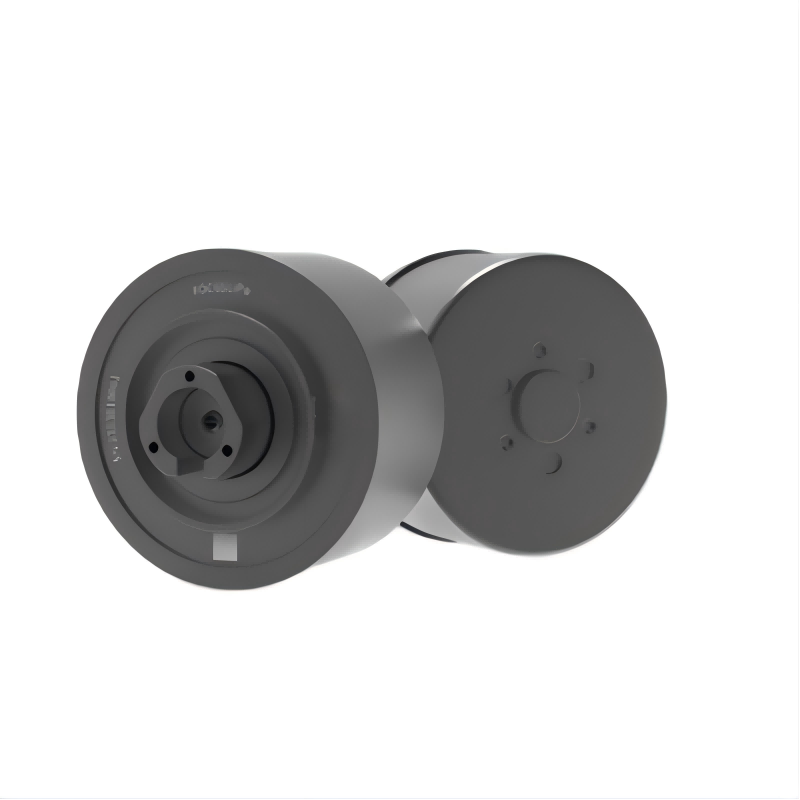

M0701 Series: This motor is designed for the two‑wheel drive chassis of industrial robot vacuums, serving as the drive wheel motor.

Ultra-low noise, high precision, and zero backlash ensure quiet and accurate operation. The direct-drive system delivers fast response with zero latency. Long service life is achieved thanks to high-quality bearings, while the compact structure allows for a large hollow shaft design. The simple, highly integrated design uses relatively few components, eliminates mechanical friction in the transmission, and achieves a transmission efficiency close to 100%.

 Industrial Robot Vacuum Two-Wheel Drive Motor M0701

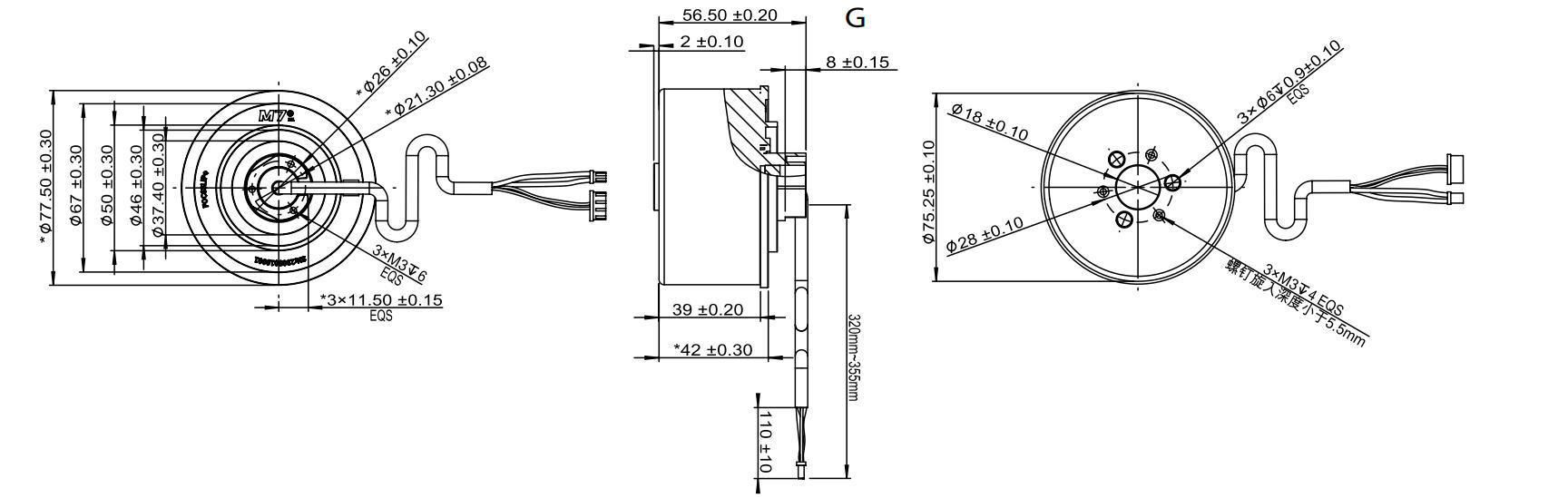

Dimension Drawing

Industrial Robot Vacuum Two-Wheel Drive Motor M0701






Motor Technical Parameters

Parameter Unit Value
Overall Dimension mm Φ75.25×42
Rated Voltage VDC 24
Rated Power W 25
Rated Torque N·m 1.2
Stall Torque N·m 4.5
Rated Speed rpm 200
No-load Speed rpm 300
Rated Current A 1.55
Stall Current A 8.5
Module Mass g 730
Noise Level dB ≤40
Encoder Resolution bit 12
Communication Protocol — RS485
IP Rating — IP54
Insulation Class — B
Withstand Voltage VAC/Hz 600/50
Operating Temp. ℃ -20~105
Operating Humidity % ＜85
Storage Temp. ℃ -20~65
Storage Humidity % ＜85

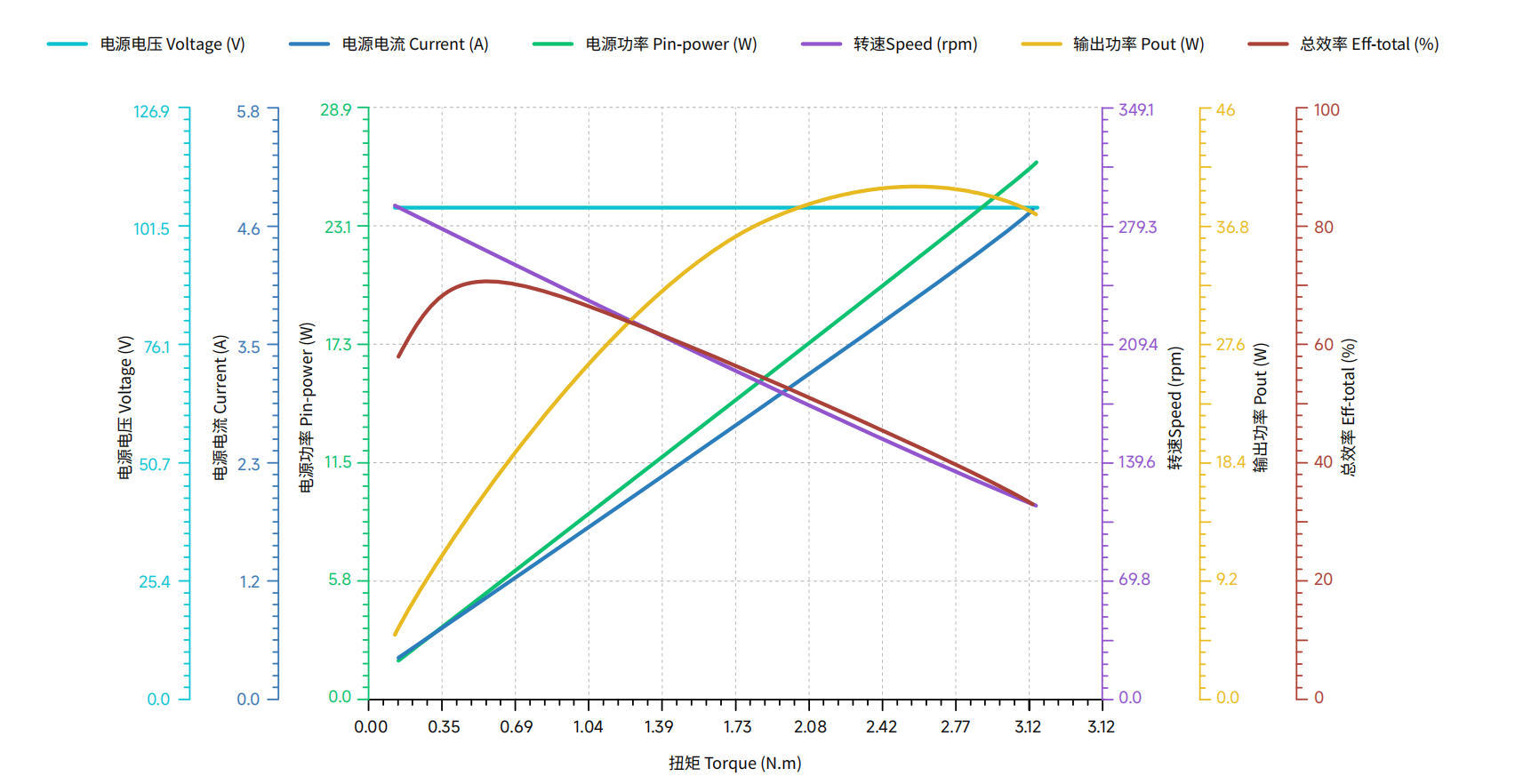

Motor Characteristic Curve


Industrial Robot Vacuum Two-Wheel Drive Motor M0701
