Robotic Lawn Mower Hub Motor S06010A
Robotic Lawn Mower Hub Motor S06010A
Robotic Lawn Mower Hub Motor S06010A
Robotic Lawn Mower Hub Motor S06010A
Robotic Lawn Mower Hub Motor S06010A
Robotic Lawn Mower Hub Motor S06010A
Robotic Lawn Mower Hub Motor S06010A
Robotic Lawn Mower Hub Motor S06010A
Specifications
Rated Power :
32W
Brand Name :
SENINTER
Communication Protocol :
CAN
Model Number :
S06010A
OD :
94mm
Rated Torque :
3N.m
Rated Voltage :
24VDC
Rated Speed :
100RPM
IP Rating :
IPX6
Certification :
CE ROHS
Place of Origin :
CHINA
Description



S0610A Integrated Drive & Control Module

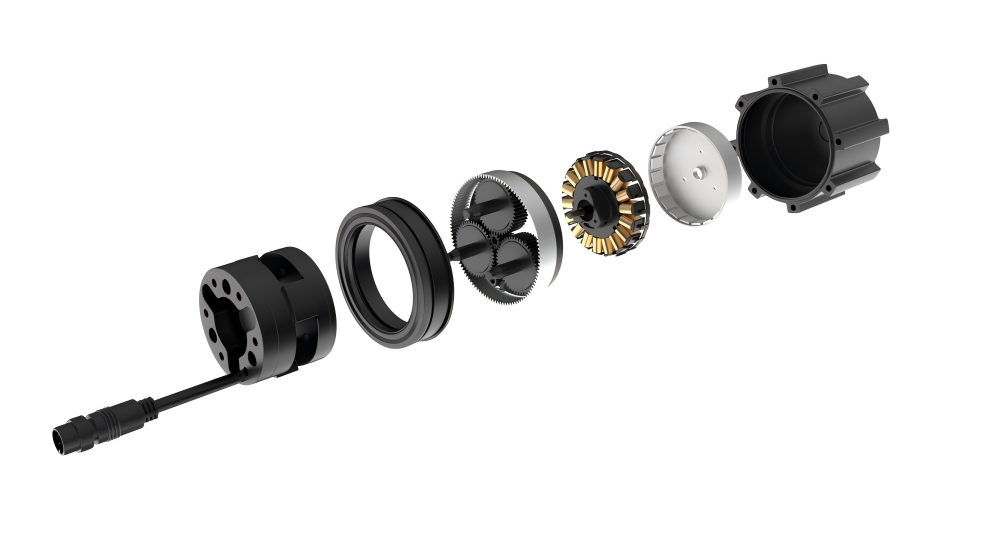

The S0610A is a 4-in-1 integrated drive solution that combines a brushless outer-rotor motor, precision gearbox, high-resolution encoder, and intelligent driver in one compact module. Built for the next generation of robotic lawn mowers, it delivers:

For Users:

  • Tool-Free Maintenance – Quick-release connector allows drive wheel and motor module replacement in seconds, without disassembling the mower or compromising the waterproof structure

  • Superior Performance – Smooth startup at speeds as low as 5rpm, with peak torque up to 12Nm for tackling 10°–40° slopes and complex terrain

  • Built to Last – IPX7 waterproof rating and lightweight design (<700g) ensure reliable operation and extended product lifecycle

  • Always Up-to-Date – OTA firmware updates unlock new features and algorithms without hardware changes

For Manufacturers:

  • Simplified Assembly – Integrated driver eliminates external driver boards and reduces wiring complexity, boosting production efficiency and yield

  • Design Flexibility – Compact architecture frees up internal space for 4WD configurations and advanced features

  • Faster R&D – Platform-based modular design allows rapid product iteration without re-engineering drive hardware

  • Lower BOM Cost – Reduced electromagnetic interference simplifies EMC certification and eliminates extra components like magnetic rings

For Service Channels:

  • Standardized Repairs – Pre-assembled replacement kits enable quick, error-free service without specialized technical skills

Robotic Lawn Mower Hub Motor S06010A

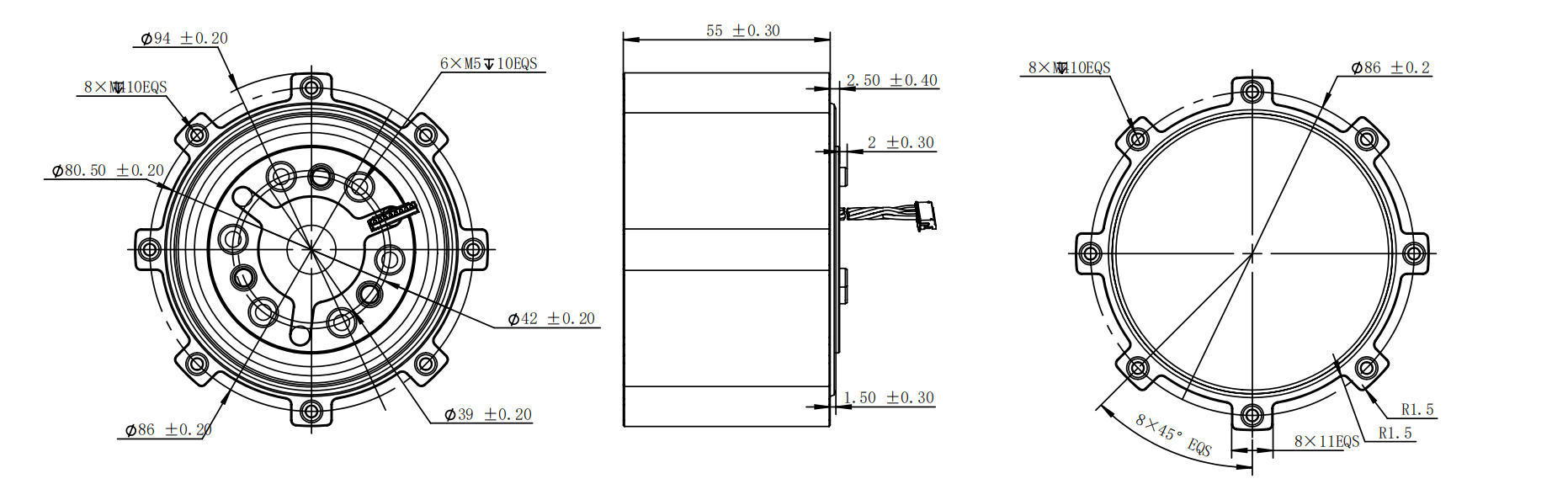

Dimension Drawing


Robotic Lawn Mower Hub Motor S06010A






Motor Technical Parameters

Parameter Unit Value
Overall Dimension mm Φ94×59
Rated Voltage VDC 24
Rated Power W 32
Rated Torque N·m 3
Stall Torque N·m 12
Rated Speed rpm 100
No-load Speed rpm 150
Rated Current A 2.2
Stall Current A 8
Module Mass g 600
Noise Level dB ≤55
Encoder Resolution bit 12
Communication Protocol — CAN Bus / RS485
IP Rating — IPX6
Insulation Class — F
Withstand Voltage VAC/Hz 500/50
Operating Temp. ℃ -20~105
Operating Humidity % ＜85
Storage Temp. ℃ -20~65
Storage Humidity % ＜85

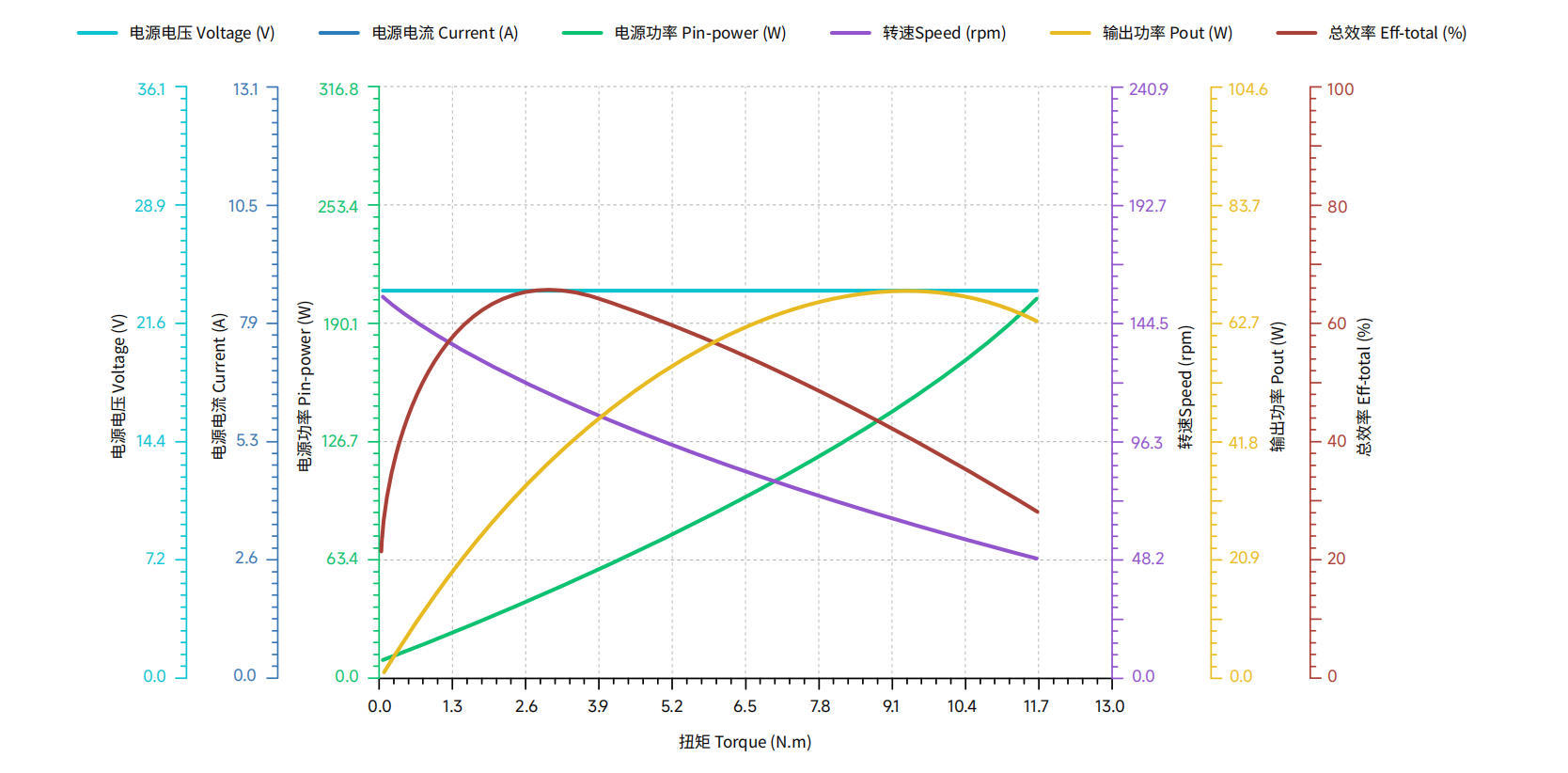

Motor Characteristic Curve

Robotic Lawn Mower Hub Motor S06010A
