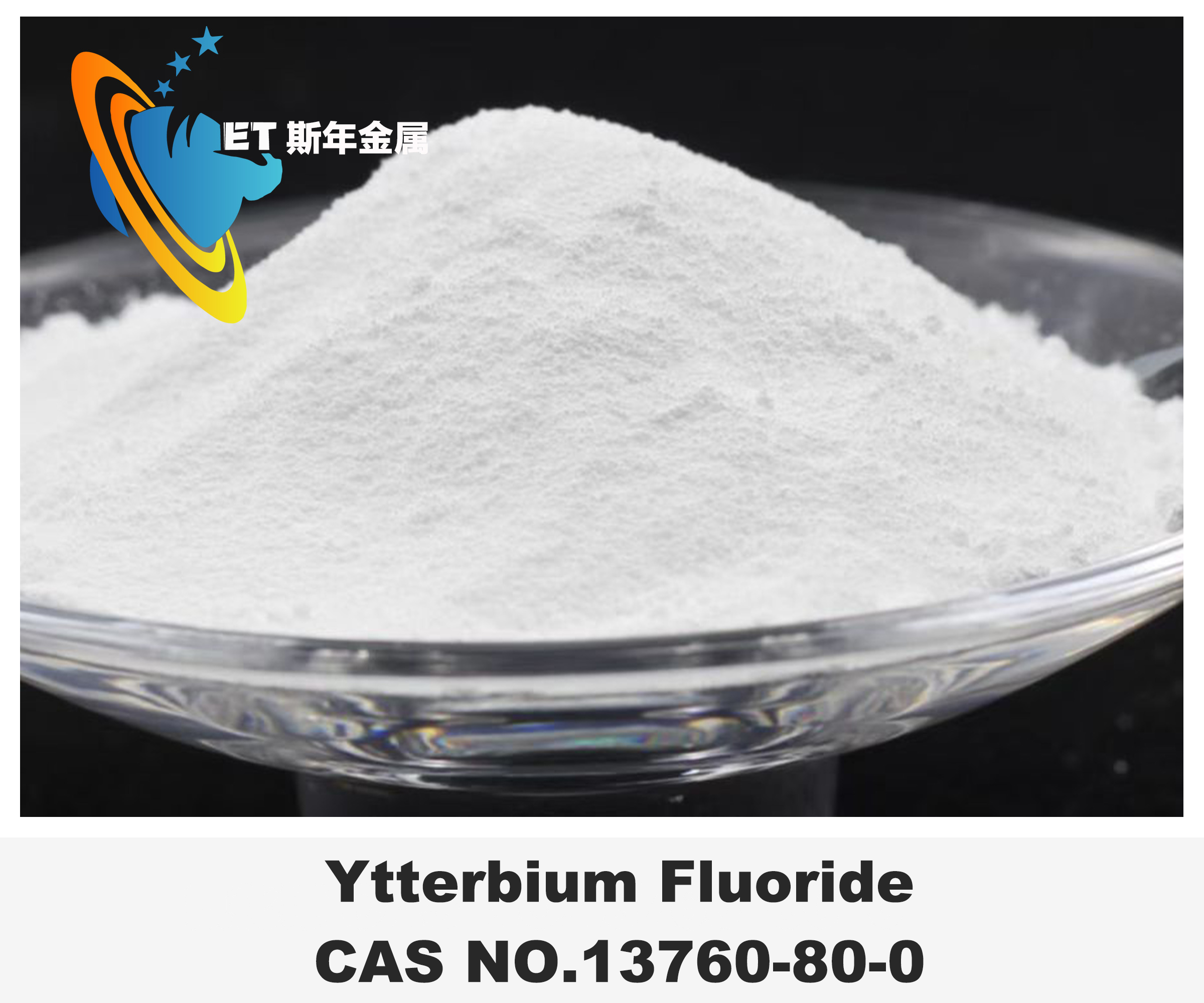

Ytterbium Fluoride YbF3 For Laser Host Crystals IR Transmitting Fibers
Ytterbium Fluoride YbF3 For Laser Host Crystals IR Transmitting Fibers
Specifications
Supply Ability :
100 tons
MOQ :
500g
Packaging Details :
0.5-1 kilogram per bottle, 50 kilograms per drum, 500 kilograms per pallet
Delivery Time :
45-60 Workdays
Payment Terms :
T/T
CAS # :
13760-80-0
Molecular Formula :
YbF3
EC No. :
237-354-2
Purity :
99.9-99.99%
Molecular Weight :
230.04
Appearance :
White crystals
Melting Point :
1,052°C (1,926°F)
Boiling Point :
2,380°C (4,316°F)
Density :
8.20 g/cm³
Exact Mass :
230.934 g/mol
Monoisotopic Mass :
211.935706 Da
Description

Ytterbium Fluoride (YbF₃): Medical Scintillators, Laser Host Crystals, IR-transmitting Fibers, Specialty Alloys

Ytterbium fluoride is an inorganic compound with the chemical formula YbF₃, appearing as a white powder with density of 8.2 g/cm³. It melts at 1052°C and boils above 2200°C. Insoluble in water and difficult to dissolve in hydrochloric, nitric or sulfuric acids, but soluble in perchloric acid. Hygroscopic in air but relatively stable.

Applications

  1. Used to prepare scintillators for modern medical imaging and nuclear science
  2. Laser materials for rare-earth crystals
  3. Fluoride glass optical fibers and rare-earth infrared glasses
  4. Manufacturing special alloys and electrolytic production of ytterbium metal

Product Series

Product

Product Code

Safety Data

Technical Data

Ytterbium Fluoride 99.99%

ET-YbF

 Ytterbium Fluoride.pdf Ytterbium Fluoride YbF 3 99.99.pdf

Health and Safety Information

Signal Word Danger
Hazard Statements H301+H311+H331
Hazard Codes T
Precautionary Statements P261-P280-P302+P352+P312-P304+P340+P312-P403+P233
Flash Point Not applicable
Risk Codes 23/24/25-32
Safety Statements 26-36/37/39-45
RTECS Number ZG2487500
Transport Information UN 3288 6.1/PGIII
WGK Germany 3
GHS Pictograms Ytterbium Fluoride YbF3 For Laser Host Crystals IR Transmitting Fibers

Packaging Specifications

  • Standard packaging: 50 kg/drum, 500 kg/pallet, ton bags
  • Sample packaging: 500 g/bag, 1 kg/bottle

Production Method

  1. Purify raw chloride salts by removing impurities
  2. Introduce carbon dioxide to form carbonates
  3. React with high-purity fluorine in special equipment to produce fluoride salts
  4. Wash reaction products with hot purified water
  5. Dry and dehydrate in vacuum furnace
  6. Adjust temperature to remove free fluorine
  7. Introduce hydrogen gas to transform crystal phase and modify refractive index
