Simple Structure Railcar Bogie Welded Frame For Low Speed Heavyload Wagon
Simple Structure Railcar Bogie Welded Frame For Low Speed Heavyload Wagon
Simple Structure Railcar Bogie Welded Frame For Low Speed Heavyload Wagon
Simple Structure Railcar Bogie Welded Frame For Low Speed Heavyload Wagon
Simple Structure Railcar Bogie Welded Frame For Low Speed Heavyload Wagon
Simple Structure Railcar Bogie Welded Frame For Low Speed Heavyload Wagon
Specifications
Brand Name :
Railteco
Model Number :
RTHZ18
Place of Origin :
China
MOQ :
One pcs
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Price :
Negotiable
Name :
Railway Bogie RTHZ18
Axle load :
35t
Tare weight :
7.8t
Diameter of Wheel :
650mm
Wheel Base :
1300mm
Design Speed :
35km/h
Description

Railway Bogie RTHZ18 Bogie Wagon Bogie Wheelset Bogie Three Axles

Description of Railway Bogie RTHZ18:

This kind of bogie is mainly used for low-speed and heavy-load wagon. It is mainly composed of frame, wheelset, axle box and guide frame.

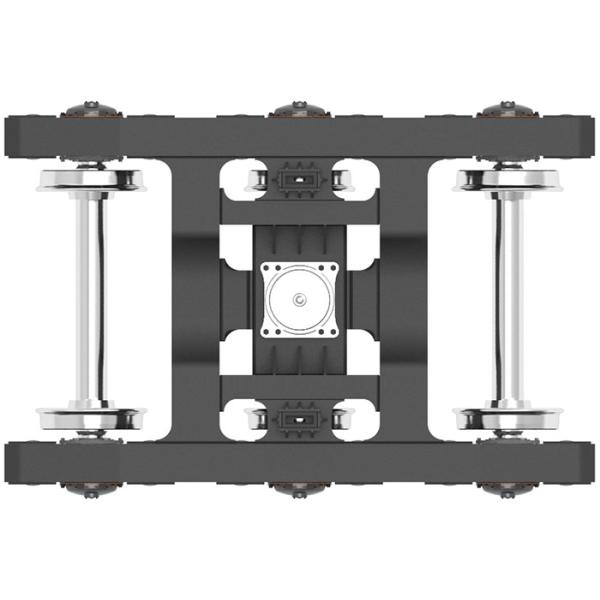

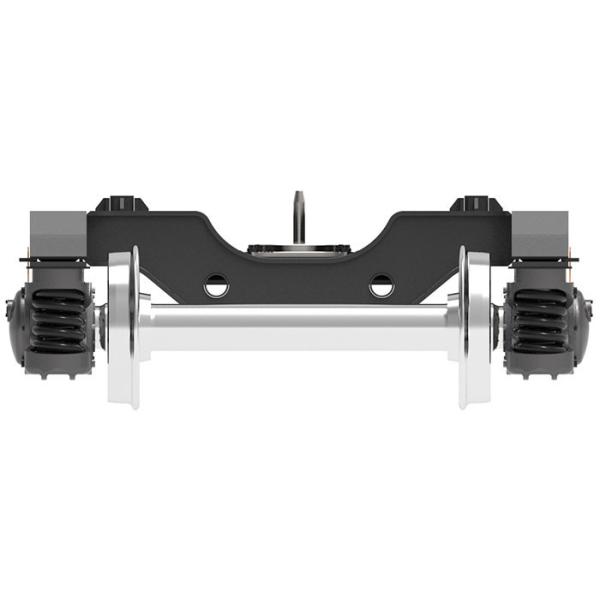

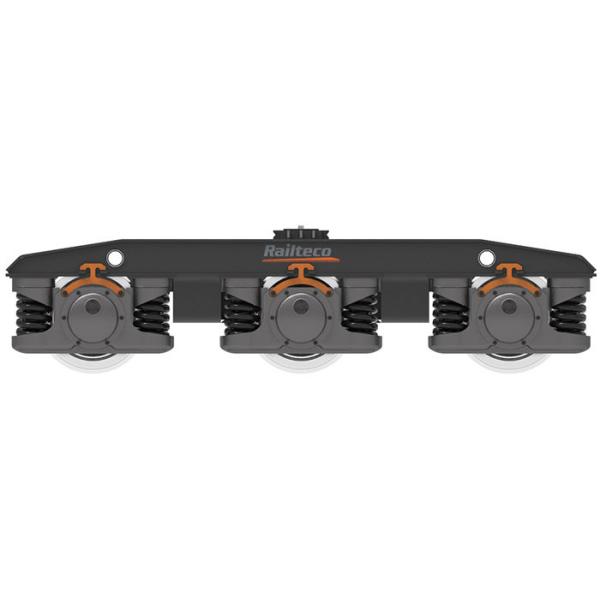

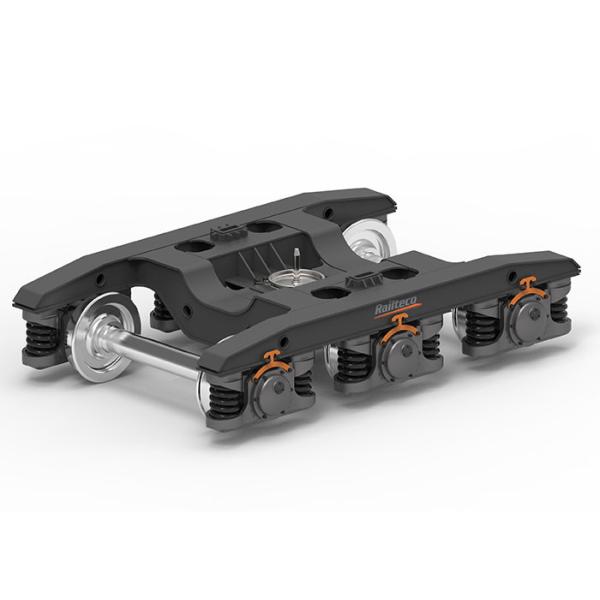

The bogie mainly adopts a welded frame type structure. The frame consists of two sets of side beams, two sets of cross beams and one set of middle beam. Two rigid side bearings are arranged on both sides of the frame. The wheels are made of integral silicon steel wheels; self-aligning roller bearings are used, and the springs adopt three-stage spring stiffness. The parts where connecting the bogie and the vehicle are made of non-metallic materials such as nylon and rubber.

The bogie is simple in structure, reliable in strength, and convenient in operation and maintenance.

Main Technical Data of Railway Bogie RTHZ18:

Gauge 1435mm
Wheel Base 1300mm
Diameter of Wheel 650mm
Center Distance of Side Bearing 1500
Design Speed 35km/h
Tare Weight 7.8t
Min. Curve Radius 100m
Height of Center Disk 648mm
Max. Load of Center Disk 105t
Axle Load 35t
