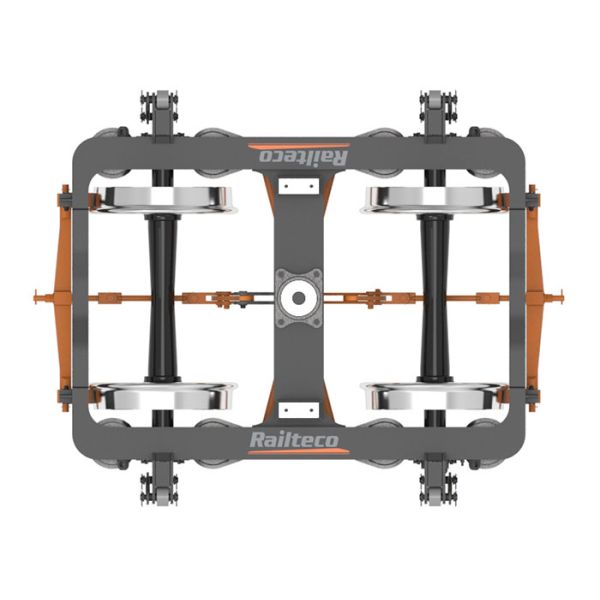

1165mm Wheel Base Railway Bogie RTKZ1 For Passenger Car Rail Coach
1165mm Wheel Base Railway Bogie RTKZ1 For Passenger Car Rail Coach
1165mm Wheel Base Railway Bogie RTKZ1 For Passenger Car Rail Coach
1165mm Wheel Base Railway Bogie RTKZ1 For Passenger Car Rail Coach
1165mm Wheel Base Railway Bogie RTKZ1 For Passenger Car Rail Coach
1165mm Wheel Base Railway Bogie RTKZ1 For Passenger Car Rail Coach
Specifications
Brand Name :
Railteco
Model Number :
RTKZ1
Place of Origin :
China
MOQ :
One pcs
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Price :
Negotiable
Name :
Railway Coach Bogie RTKZ1
Axle Load :
3.75t
Tare Weight :
≤1.5t
Running Speed（Max） :
40km/h
Diameter of wheels :
Ø596mm
Wheel Base :
1165mm
Description

Railway Bogie RTKZ1 Bogie Wagon Bogie Wheelset Bogie for Passenger Car Rail Coach

Description of Railway Coach Bogie RTKZ1:

This kind of bogie is available to be used on the railway gauge of 762mm and the operating speed is 40km/h. It is applied for Taiwan forest railway sightseeing passenger car. It is mainly comprised of axle box spring suspension, vertical damper, bogie frame, center plate, brake device, self-steering redial device etc. The diameter of wheels is 596mm. The welding bogie frame is comprised of side beam, center beam and end beam. The bogie adopts center plate and side bearer.

The bogie adopts basic brake device. The braking leverage ratio is 4.84.

Main Technical Data of Railway Coach Bogie RTKZ1:

Gauge 762mm
Axle load 3.75T
Tare weight 1.5T
Wheel base 1165mm
Running speed(Max) 40km/h
Diameter of wheels Ø596mm
