Specifications
Brand Name :
Railteco
Model Number :
RTHZ07
Place of Origin :
China
MOQ :
One pcs
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Price :
Negotiable
Name :
Railway Wagon Bogie RTHZ07
Axle load :
18.5t 20t
Tare weight :
≤3.5t
Running speed（Max） :
100km/h
Diameter of wheels :
Ø863mm
Wheel Base :
1753mm
Description

Railway Bogie RTHZ07 Bogie Wagon Bogie Wheelset Bogie For Rail Freight Car Wagon

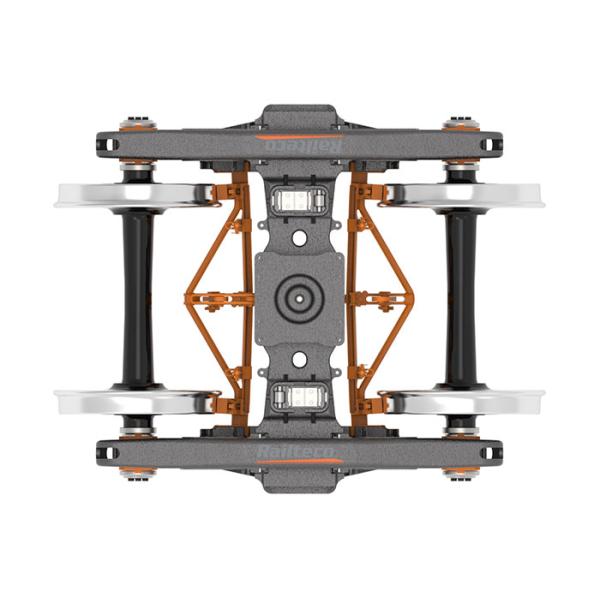

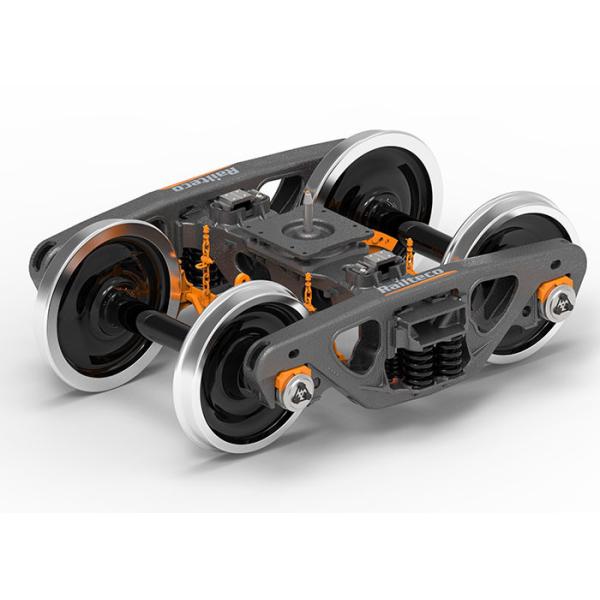

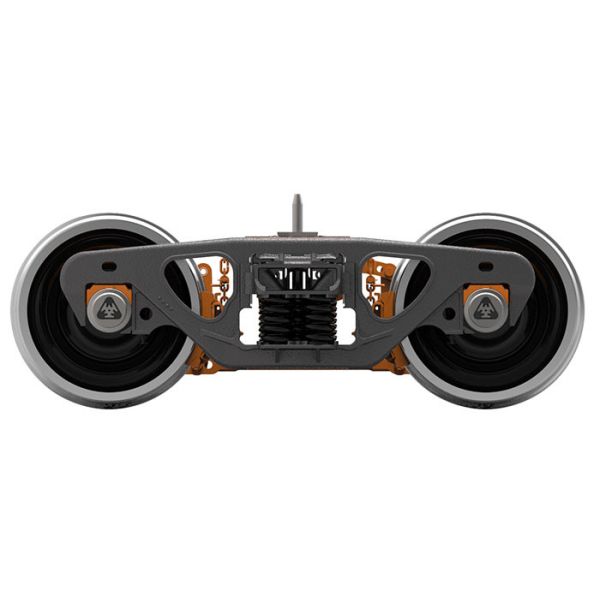

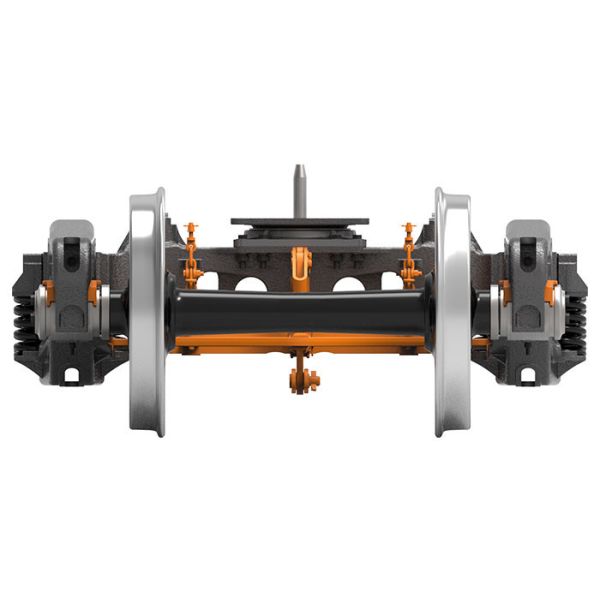

Description of Railway Wagon Bogie RTHZ07:

This kind of bogie is available to be used on the railway gauge of 1067mm. It is applied for new-making and servicing wagons. The axle load is 20t and the operating speed(Max) is 100km/h. The arrangement shall permit for ready accessibility for maintenance. This kind of bogie falls into categories of casting steel three-piece bogie. It is mainly comprised of wheel set, side frame, bolster, brake rigging, center spring suspension system, Constant friction type snubbing device, roller bearing, and side bearing etc.

Axle shall be in accordance with AAR M-101, the journal size of axle is 5 1/2ʺ×10ʺ.Wheel shall be in accordance with AAR M-107/M-208 ,the diameter of wheels is 863mm. The press-mounted of wheels and axle is according to AAR standard. Use Class D 5 1/2ʺ×10ʺ tapered roller bearings in accordance with AAR M-934, manufacturer is Timken,SKF or FAG.

The bogie adopts basic brake device. The braking leverage ratio is 5.88. The bogie adopts forged brake beam and composition brake shoe.

Main Technical Data of Railway Wagon Bogie RTHZ07:

Gauge 1067mm
Axle load 18.5t 20t
Tare weight ≤3.5t
Wheel base 1753mm
Running speed(Max) 100km/h
Diameter of wheels Ø863mm
