Casting Steel Railway Three Piece Bogie 80 km/h Maximum Running Speed
Casting Steel Railway Three Piece Bogie 80 km/h Maximum Running Speed
Casting Steel Railway Three Piece Bogie 80 km/h Maximum Running Speed
Casting Steel Railway Three Piece Bogie 80 km/h Maximum Running Speed
Casting Steel Railway Three Piece Bogie 80 km/h Maximum Running Speed
Casting Steel Railway Three Piece Bogie 80 km/h Maximum Running Speed
Specifications
Brand Name :
Railteco
Model Number :
RTHZ27
Place of Origin :
China
MOQ :
One pcs
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Name :
Railway Wagon Bogie RTHZ27
Axle Load :
17t 18t 20t
Tare Weight :
≤3.3t
Running Speed（Max） :
80km/h
Diameter of wheels :
Ø762mm
Wheel Base :
1600mm
Price :
Negotiable
Description

Railway Bogie RTHZ27 Bogie Wagon Bogie Wheelset Bogie For Wagon Freight Car

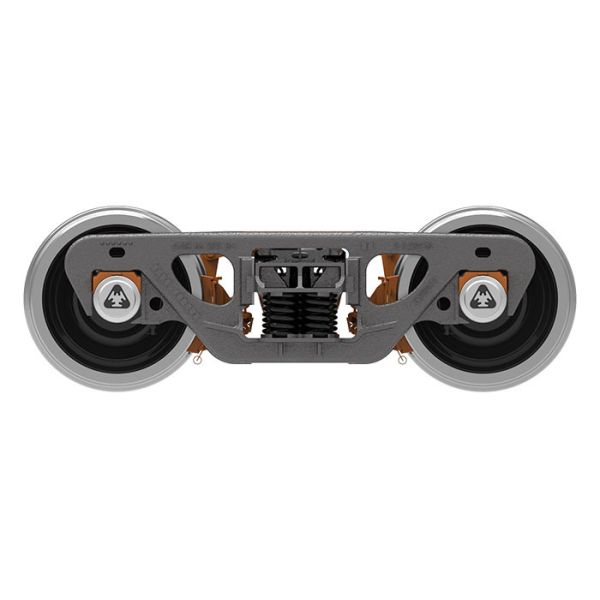

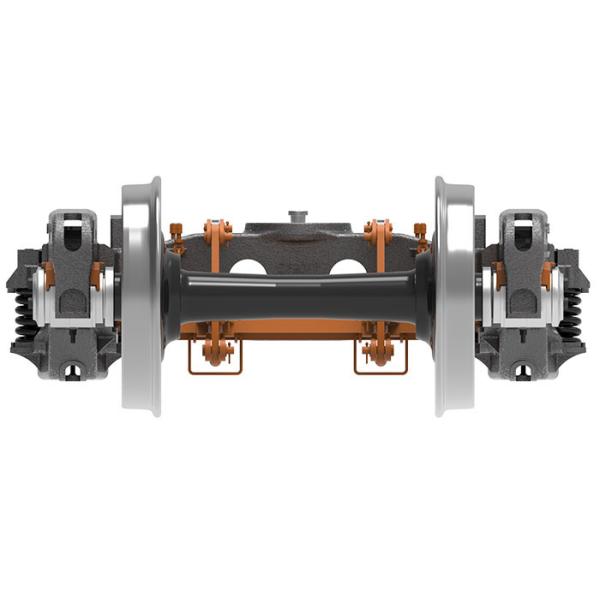

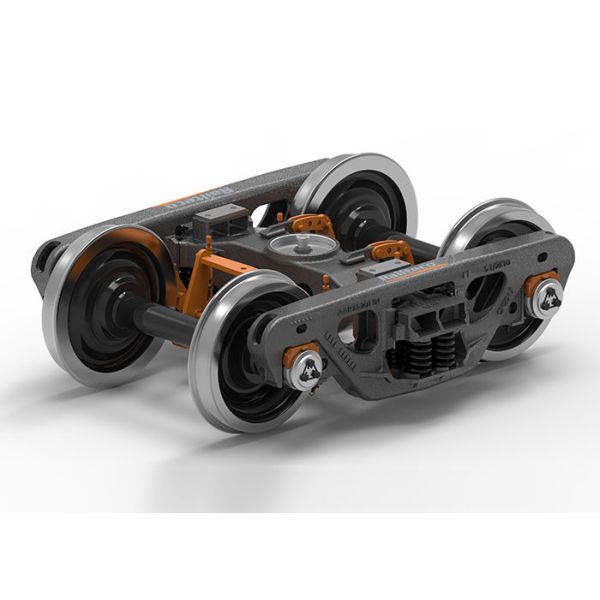

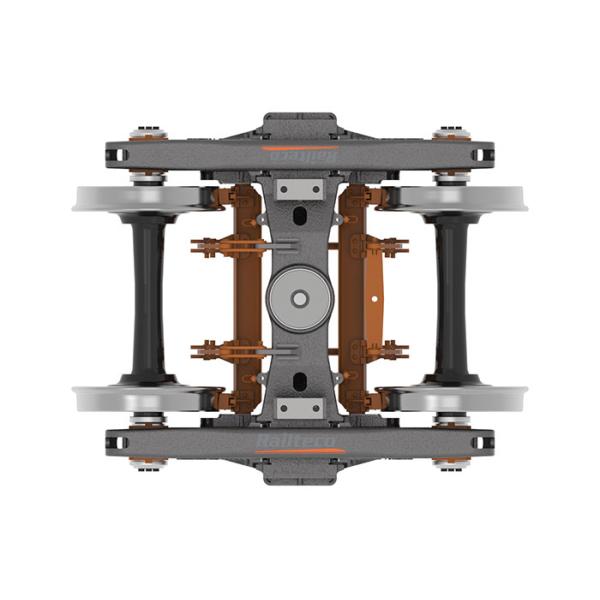

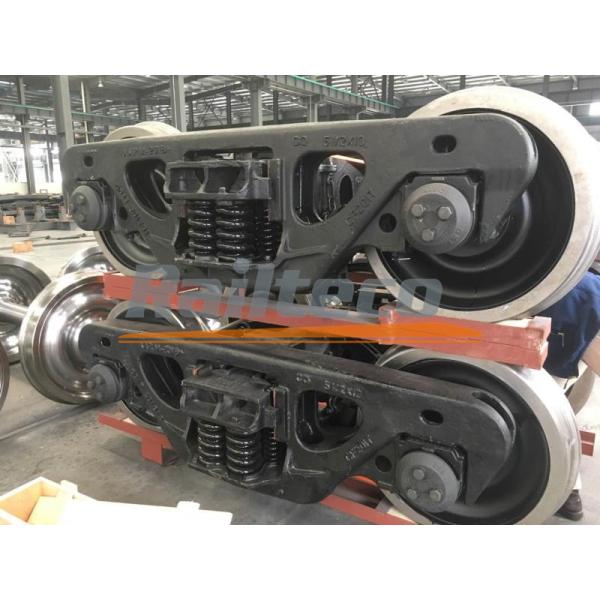

Description of Railway Wagon Bogie RTHZ27:

This kind of bogie falls into categories of casting steel three-piece bogie. It is mainly comprised of wheel set, side frame, bolster, brake rigging, center spring suspension system, Constant friction type snubbing device, roller bearing, and side bearing etc.This kind of bogie is available to be used on the railway gauge of 1000mm. The bogie adopts basic brake device. The number of brake pull rod is 2. The bogie adopts composite brake beam and composition brake shoe. It is applied for new-making and servicing wagons. The axle load is 20t (Max) and the operating speed (Max) is 80km/h. The arrangement shall permit for ready accessibility for maintenance.

Axle shall be in accordance with AAR M-101, the journal size of axle is 5 1/2ʺ×10ʺ.Wheel shall be in accordance with AAR M-107/M-208 ,the diameter of wheels is 762mm. The press-mounted of wheels and axle is according to AAR standard. Use Class D 5 1/2ʺ×10ʺ tapered roller bearings in accordance with AAR M-934, manufacturer is Timken, SKF or FAG.

Main Technical Data of Railway Wagon Bogie RTHZ27:

Gauge 1000mm
Axle load 17t 18t 20t
Tare weight ≤3.3t
Wheel base 1600mm
Running speed(Max) 80km/h
Diameter of wheels Ø762mm
