Specifications
Brand Name :
Railteco
Model Number :
RTHZ11
Place of Origin :
China
MOQ :
One pcs
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Price :
Negotiable
Name :
Railway Wagon Bogie RTHZ11
Axle load :
22t 23.5t 25t
Tare weight :
≤4.7t
Running speed（Max） :
80km/h
Diameter of wheels :
Ø840mm
Wheel Base :
2032mm
Description

Railway Bogie RTHZ11 Bogie Wagon Bogie Wheelset Bogie For Freight Car Rail Wagon

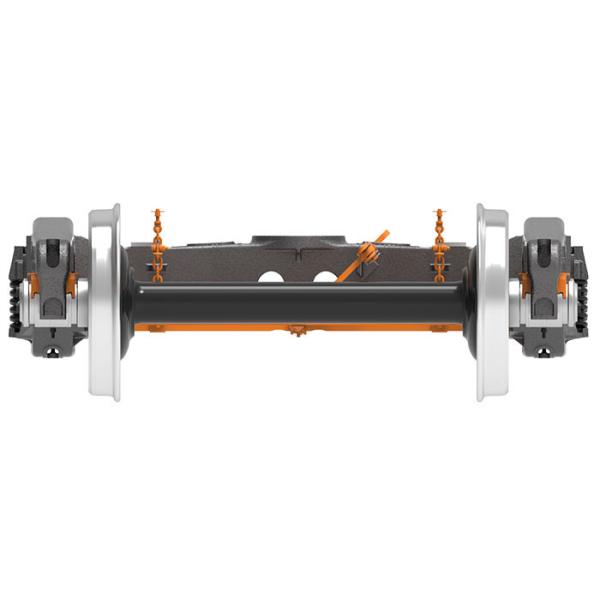

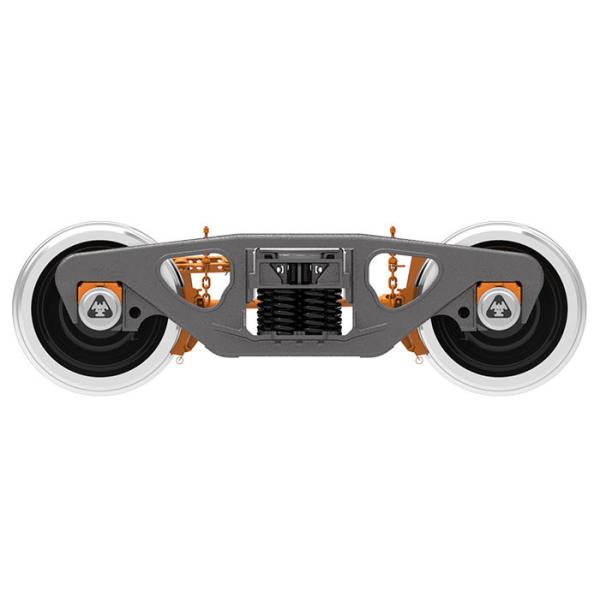

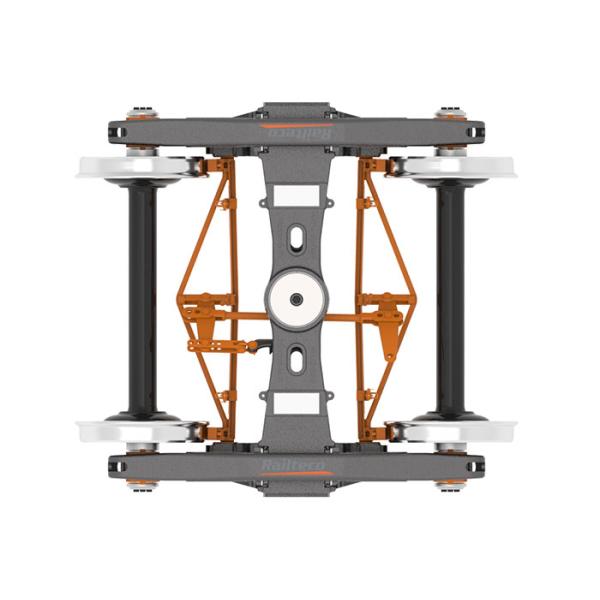

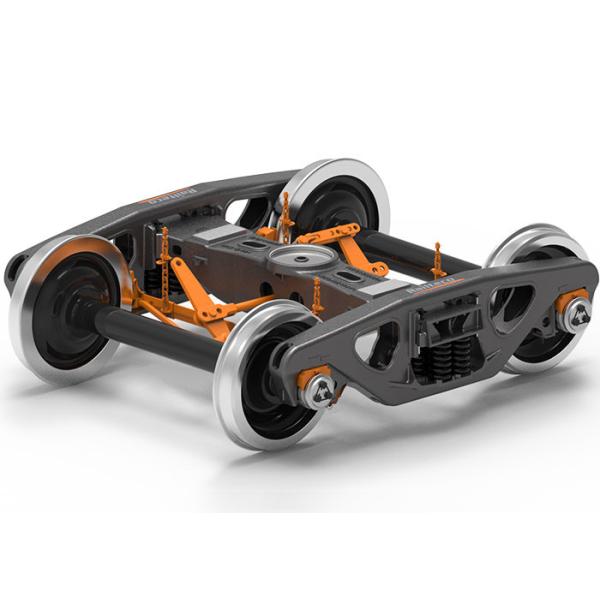

Description of Railway Wagon Bogie RTHZ11:

This kind of bogie is available to be used on the railway gauge of 1676mm. It is applied for new-making and servicing wagons. The axle load is 25t (Max) and the operating speed (Max) is 80km/h. The bogie adopts basic brake device. The braking leverage ratio is 4. The bogie adopts forged brake beam and composition brake shoe.The arrangement shall permit for ready accessibility for maintenance. This kind of bogie falls into categories of casting steel three-piece bogie. It is mainly comprised of wheel set, side frame, bolster, brake rigging, center spring suspension system, Constant friction type snubbing device, roller bearing, and side bearing etc.

Axle shall be in accordance with AAR M-101, the journal size of axle is 6ʺ×11ʺ.Wheel shall be in accordance with AAR M-107/M-208 ,the diameter of wheels is 840mm. The press-mounted of wheels and axle is according to AAR standard. Use Class E 6″×11″ tapered roller bearings in accordance with AAR M-934, manufacturer is Timken, SKF or FAG.

Main Technical Data of Railway Wagon Bogie RTHZ11:

Gauge 1676mm
Axle load(Max) 22t 23.5t 25t
Tare weight ≤4.7t
Wheel base 2032mm
Running speed(Max) 80km/h
Diameter of wheels Ø840mm
