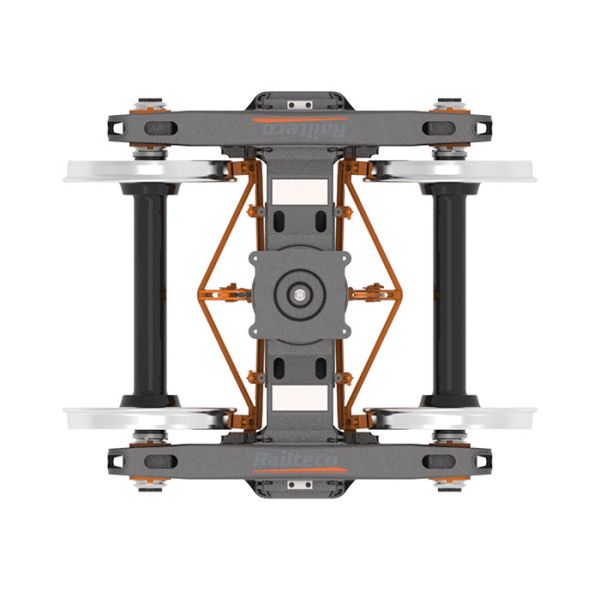

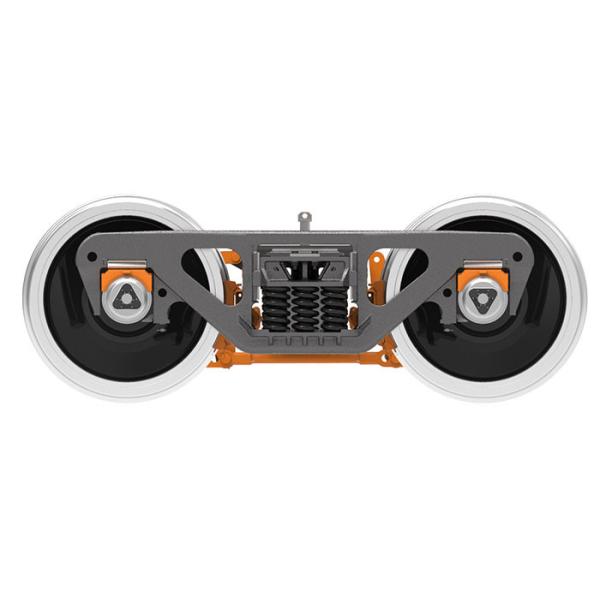

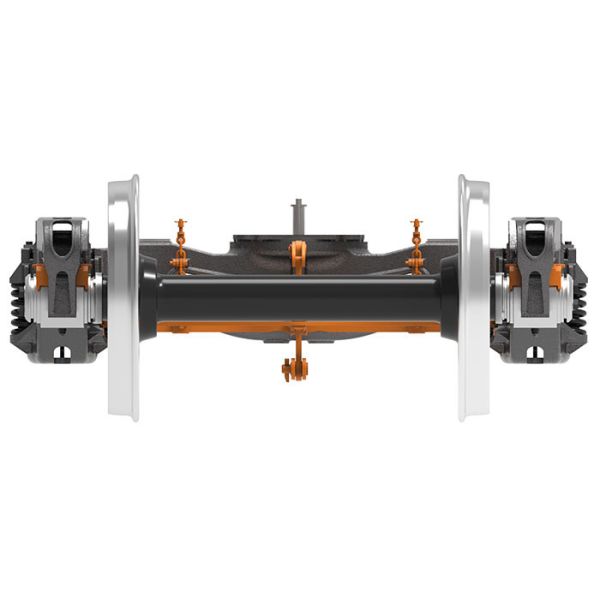

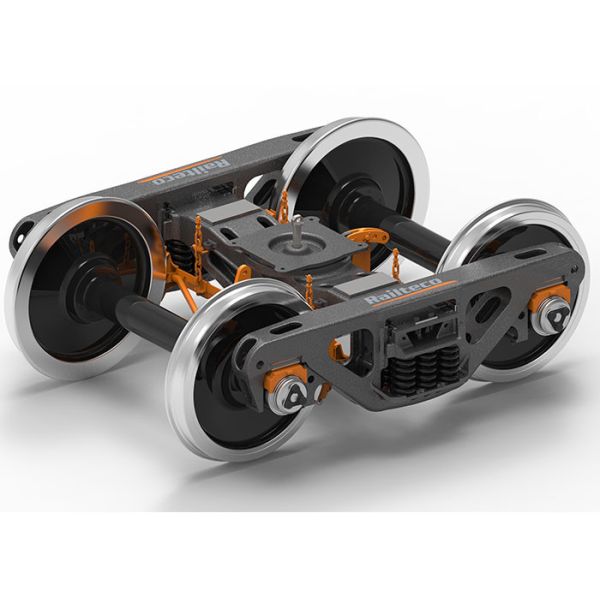

5.2T Tare Weight Railway Bogie , Railroad Train Bogie 1800mm Wheel Base
5.2T Tare Weight Railway Bogie , Railroad Train Bogie 1800mm Wheel Base
5.2T Tare Weight Railway Bogie , Railroad Train Bogie 1800mm Wheel Base
5.2T Tare Weight Railway Bogie , Railroad Train Bogie 1800mm Wheel Base
5.2T Tare Weight Railway Bogie , Railroad Train Bogie 1800mm Wheel Base
5.2T Tare Weight Railway Bogie , Railroad Train Bogie 1800mm Wheel Base
Specifications
Brand Name :
Railteco
Model Number :
RTHZ31
Place of Origin :
China
MOQ :
One pcs
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
4 months after advance payment
Packaging Details :
Railteco Standard Packing
Price :
Negotiable
Name :
Railway Wagon Bogie RTHZ31
Axle load :
27.5t 30t
Tare weight :
5.2t
Running speed（Max） :
70km/h
Diameter of wheels :
Ø1000mm
Wheel Base :
1800mm
Description

Railway Bogie RTHZ31 Bogie Wagon Bogie Standard Gauge Bogie Train Bogie Wheel Set Bogie For Rail Freight Car

Description of Railway Wagon Bogie RTHZ31:

This kind of bogie is available to be used on the railway gauge of 1435mm. It is applied for new-making and servicing wagons. The axle load is 30t and the operating speed (Max) is 70km/h.

The bogie adopts basic brake device. The braking leverage ratio is 5. The bogie adopts forged brake beam and composition brake shoe.

Axle shall be in accordance with AAR M-101. Wheel shall be in accordance with AAR M-107/M-208 ,the diameter of wheels is 1000mm. The press-mounted of wheels and axle is according to AAR standard. Use Class F 6 1/2ʺ×12ʺ tapered roller bearings in accordance with AAR M-934, manufacturer is Timken, SKF or FAG.

The arrangement shall permit for ready accessibility for maintenance. This kind of bogie falls into categories of casting steel three-piece bogie. It is mainly comprised of wheel set, side frame, bolster, brake rigging, center spring suspension system, variable friction wedge type damping device, roller bearing, and side bearing etc.

Main Technical Data of Railway Wagon Bogie RTHZ31:

Gauge 1435mm
Axle load 27.5t 30t
Tare weight 5.2t
Wheel base 1800mm
Running speed(Max) 70km/h
Diameter of wheels Ø1000mm

5.2T Tare Weight Railway Bogie , Railroad Train Bogie 1800mm Wheel Base

5.2T Tare Weight Railway Bogie , Railroad Train Bogie 1800mm Wheel Base
